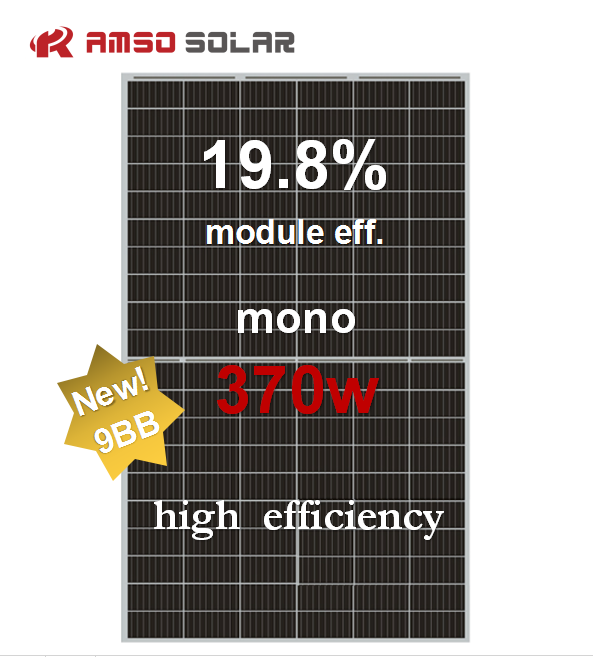

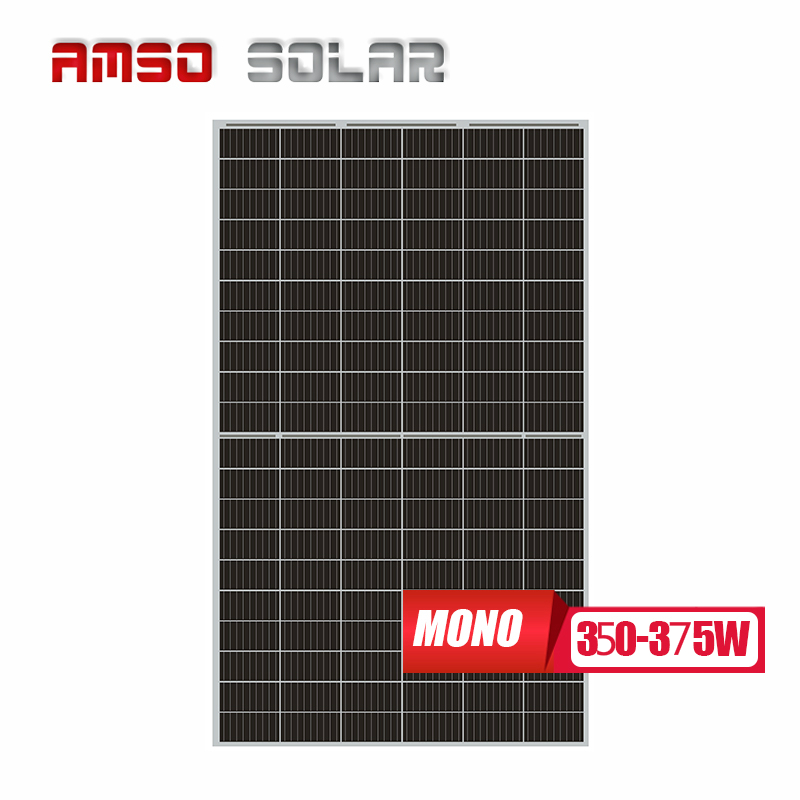

350W-375W Monocrystalline 9BB Half-Cell Solar Panel

High-Efficiency 9BB Half-Cell Solar Module

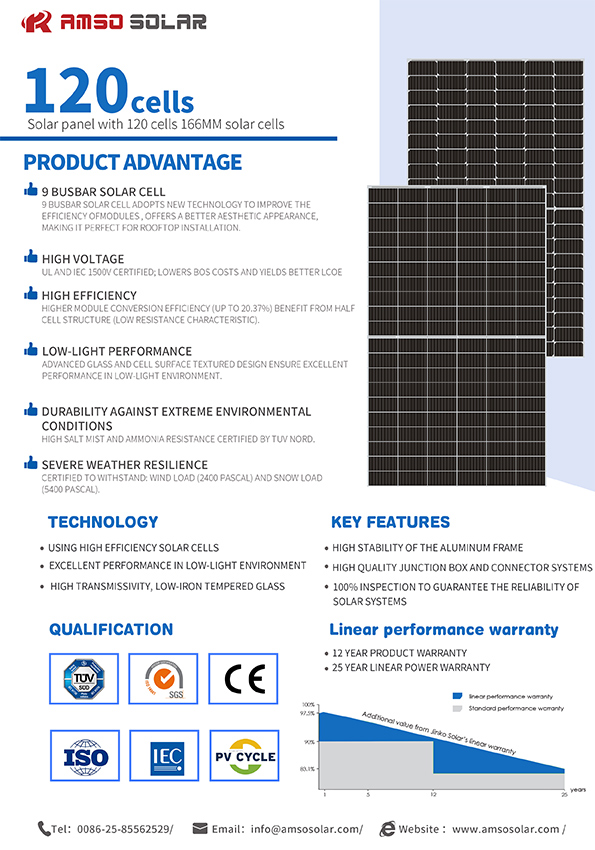

This monocrystalline solar panel series utilizes 166mm 9-busbar (9BB) half-cell technology to deliver power outputs ranging from 350W to 375W. By employing a 120-cell configuration (60x2 full cells), the module achieves a conversion efficiency of up to 20.1%, significantly reducing installation area and costs. The half-cell design not only improves shading tolerance but also lowers operating temperatures by 1.6°C, ensuring long-term stability and reliability in diverse environmental conditions.

Key Performance Metrics

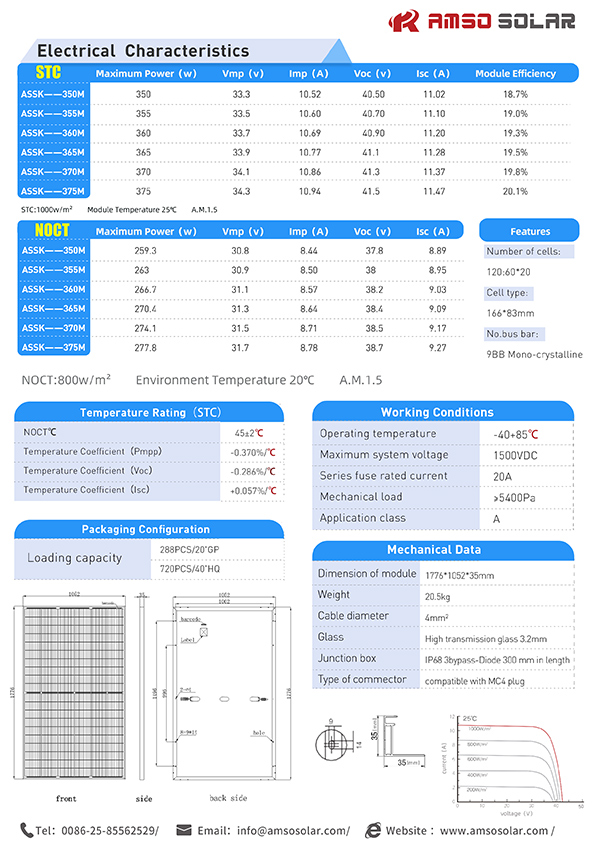

Electrical Data (STC)

Cell Technology

• 9 Busbar (9BB) solar cell technology
• 120 Half-cut monocrystalline cells (166*83mm)
• Advanced glass and cell surface texturing
• High transmissivity, low-iron tempered glass (3.2mm)
• IP68 Junction box with 3 bypass diodes

Container Loading Capacity

• 288 PCS per 20' GP
• 720 PCS per 40' HQ
