Overview
High-Performance Medium Voltage Power Distribution
This medium voltage, 3-core armoured power cable is engineered for reliable power transmission and distribution in systems up to 35kV. Designed to replace traditional oil-immersed paper insulated cables, it offers superior durability for power networks, underground, outdoor, and ducting applications. Its robust construction ensures consistent performance in demanding environments like construction, mining, and petrochemical industries.
Technical Specifications
Standards Compliance
- BS 6622
- BS EN/IEC 60228
- IEC 60502.2
- BS 7655
- Rated Voltage
- 3.6/6kV6/10kV12/20kV19/33kV26/35kV
- Max Operating Temperature
- 90 °C
- Max Short-Circuit Temperature
- 250 °C
Construction Details

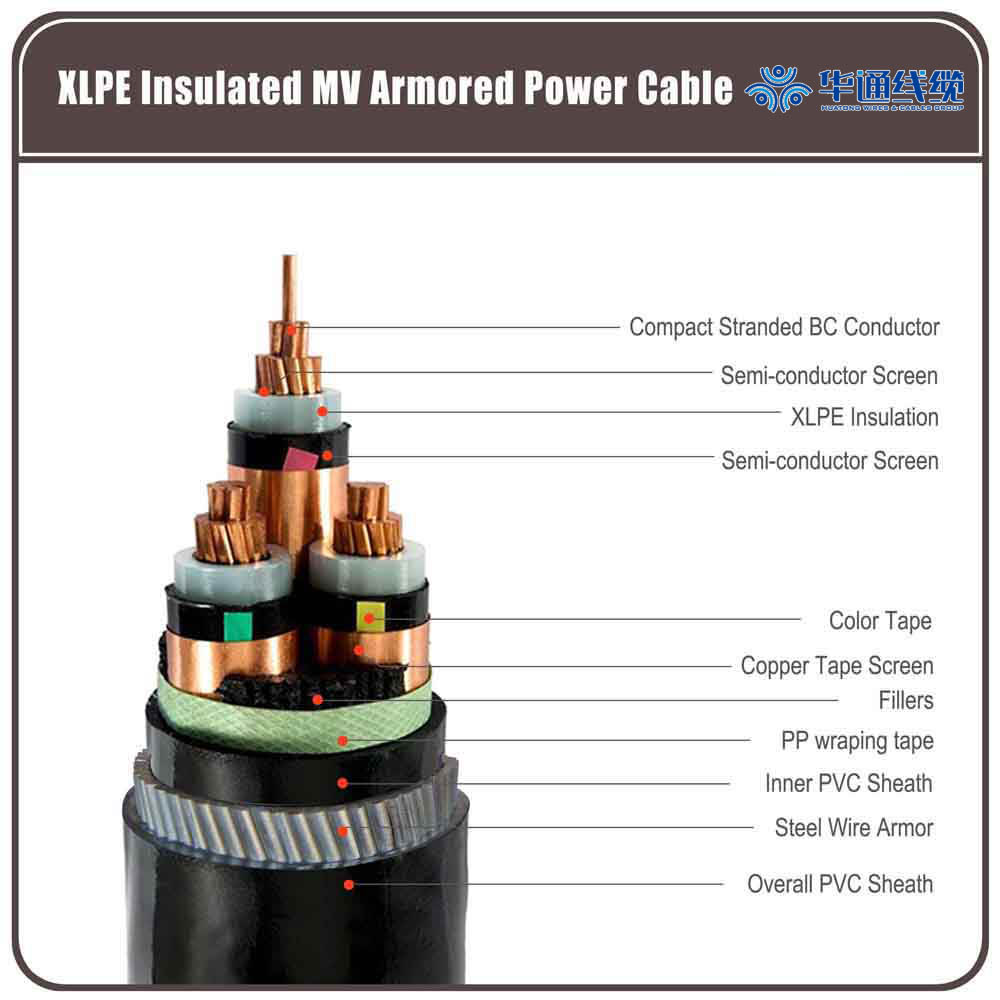

Cable Construction Layers
| Layer | Material |
|---|---|
| Conductor | Stranded Plain Copper (Class 2) |
| Insulation | XLPE (Type GP8) |
| Armoring (MultiCore) | Steel Wire Armored (SWA) |
| Armoring (Single Core) | Aluminum Wire Armored (AWA) |
| Sheath | PVC (Type TM1) |
| Filler | PET Fibres |
Performance & Testing
Partial Discharge Limit
10 pC
Discharge Volume
- Min. Bending Radius (Fixed)
- 15 x OD
