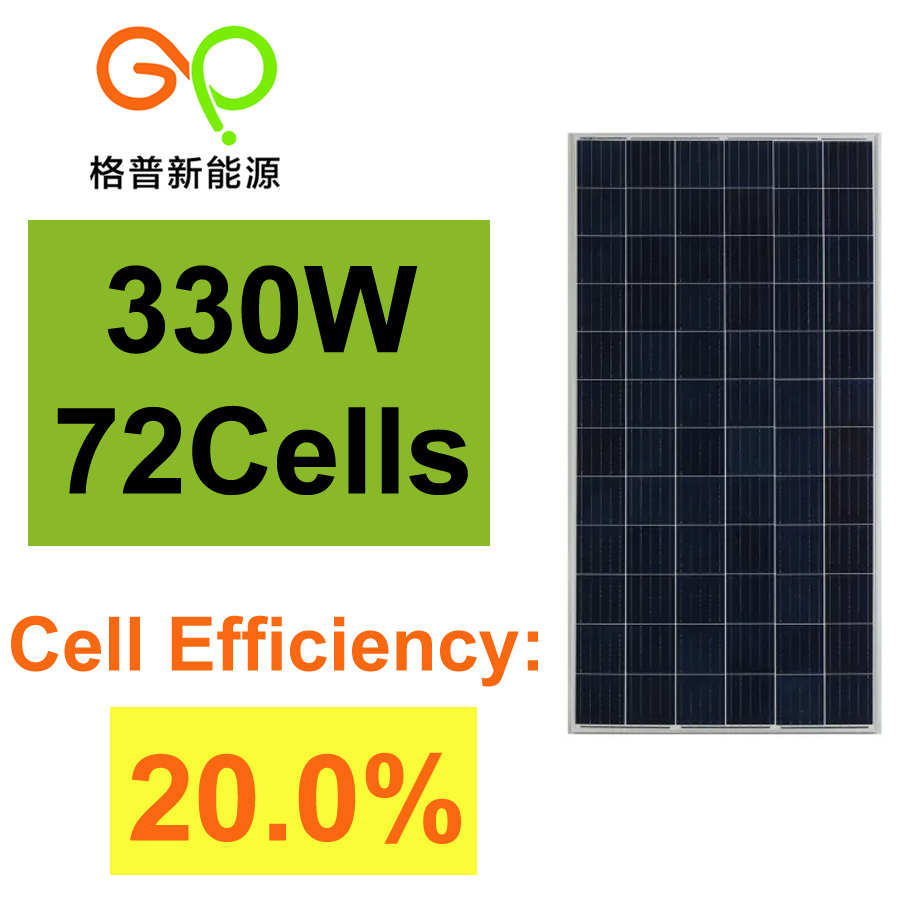

330W Polycrystalline Solar Panel
This high-efficiency polycrystalline solar panel provides 330W power output with 72 cells. It is designed for both residential and commercial solar power systems, ensuring reliable energy generation in various weather conditions.
Technical Specifications
Overview
High-Efficiency Polycrystalline Module
This 330W polycrystalline solar module is engineered for reliability and high performance in diverse environmental conditions. Built with grade A silicon cells and protected by high-transmission tempered glass, it offers robust durability against wind, hail, and storms. Designed for ease of installation, this module is an ideal solution for both residential and commercial solar energy systems.
Performance Metrics
Maximum Power
330 Wp
Max Power
- Module Efficiency
- 17 %
Technical Specifications
- Number of Cells
- 72
- Cell Technology
- Polycrystalline Silicon
- Dimensions
- 1956 x 992 x 40 mm
Materials & Construction
- Glass
- 3.2mm High transmission rate and low iron tempered glass
- Frame
- Anodized aluminum alloy
- EVA Specification
- Anti-aging, high viscosity, crosslinking degree above 85%
- Back Sheet
- High frame resistant & Double-sided fluorine TPT
Features & Connectivity
Junction Box Rating
IP65 Waterproof
- Connectors
- MC4
- Durability Features
- Storm ResistantWind ResistantHail Impact Resistant
