330W Polycrystalline Half-Cut Solar Panel
This 330W polycrystalline solar panel is designed with half-cut cell technology for enhanced performance. It provides a reliable and durable solution for residential and commercial solar power applications.

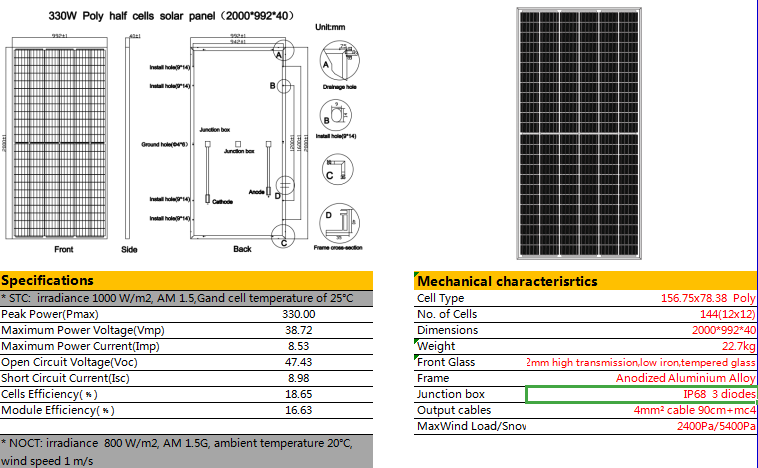

Technical Specifications
Product Overview
High-Efficiency 330W Polycrystalline Solution
This 330W solar panel utilizes advanced half-cut cell technology to deliver reliable power for both residential and commercial 36V systems. Designed for durability in harsh environments, it features a robust anodized aluminum frame and IP68-rated protection. With a 30-year linear power output warranty, it provides a long-term, high-performance solution for sustainable energy projects.
Key Performance Metrics
Performance Highlights
330 W
Peak Power
16.63 %
Module Efficiency
38.72 V
Max Power Voltage
Electrical Specifications (STC)
Standard Test Conditions
| Parameter | Value |
|---|---|
| Maximum Power Current (Imp) | 8.53 A |
| Open Circuit Voltage (Voc) | 47.43 V |
| Short Circuit Current (Isc) | 8.98 A |
| Cell Efficiency | 18.65 % |
Mechanical Data
- Cell Configuration
- 144 (12x12) Poly Half-Cells
- Panel Dimensions
- 2000 x 992 x 40 mm
- Weight
- 22.7 kg
Construction Materials
Junction Box
IP683 Diodes
- Front Glass
- 2mm high transmission, low iron, tempered glass
- Frame
- Anodized Aluminium Alloy
Installation & Durability
Load Resistance
- Max Wind Load: 2400Pa
- Max Snow Load: 5400Pa
- Output Cables
- 4mm² cable, 90cm length with MC4 connectors
Warranty
Warranty Coverage
- 12 Years Guarantee on material and workmanship
- 30 Years Linear Power output warranty
