330W 30V Monocrystalline Solar Panel
This high-efficiency 330W monocrystalline solar panel is designed for optimal energy conversion. It is ideal for residential, commercial, and industrial solar power systems, providing excellent power output and withstanding harsh environmental conditions.

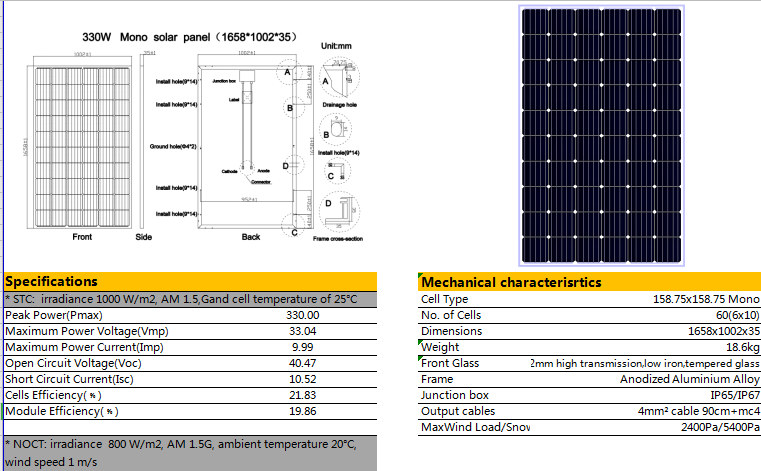

Technical Specifications
Overview
High-Efficiency Monocrystalline Solution
This 330W monocrystalline solar panel is engineered for high-performance energy conversion in residential, commercial, and industrial applications. Built with 60 high-efficiency cells and a robust anodized aluminum frame, it ensures long-term reliability even in harsh environmental conditions. The panel features high-transparency tempered glass and is backed by extensive performance warranties to guarantee consistent power output over decades.
Performance Highlights
Key Performance Metrics
330 W
Peak Power
19.86 %
Module Efficiency
21.83 %
Cell Efficiency
Electrical Specifications (STC)
- Maximum Power Voltage (Vmp)
- 33.04 V
- Maximum Power Current (Imp)
- 9.99 A
- Open Circuit Voltage (Voc)
- 40.47 V
- Short Circuit Current (Isc)
- 10.52 A
Mechanical Characteristics
- Cell Arrangement
- 60 (6x10) Monocrystalline cells
- Cell Dimensions
- 158.75 x 158.75 mm
- Panel Dimensions
- 1658 x 1002 x 35 mm
- Weight
- 18.6 kg
Construction & Durability
Junction Box Rating
IP65IP67
Mechanical Load Capacity
- Max Wind Load: 2400Pa
- Max Snow Load: 5400Pa
- Front Glass
- High transmission, low iron, tempered glass
- Frame
- Anodized Aluminium Alloy
Connectivity
- Output Cables
- 4mm² cable, 90cm length with MC4 connectors
Warranty
Warranty Coverage
- 12 Years Guarantee on product material and workmanship
- 30 Years Linear Power output warranty
