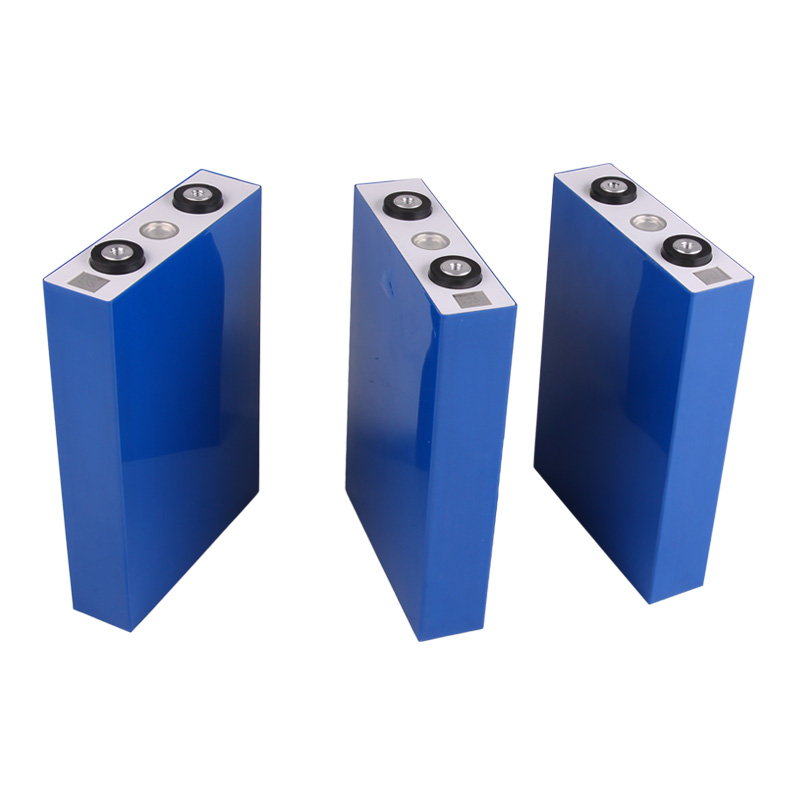

3.2V 200Ah LiFePO4 Prismatic Battery Cell
This 3.2V 200Ah LiFePO4 prismatic battery cell is designed for energy storage systems and electric vehicles. It features excellent cycle life, thermal stability, and safety.
Technical Specifications
Product Overview
High-Performance LiFePO4 Energy Storage
This 3.2V 200Ah LiFePO4 prismatic battery cell offers superior thermal stability and safety compared to traditional lead-acid alternatives. Engineered for demanding environments, it provides an extended cycle life of over 2000 cycles and operates effectively across a wide temperature range. It is an ideal, lightweight building block for custom battery packs in solar storage, electric mobility, and backup power systems.
- Key Features
- Long Cycle LifeLightweightHigh SafetyWide Temperature Range
Battery Cell Technical Data
Cell Specifications
3.2 V
Nominal Voltage
200 Ah
Capacity
3.5 kg
Weight
Operating Voltages
| Parameter | Value |
|---|---|
| Charge cut-off voltage | 3.6 |
| Discharge cut-off voltage | 2.6 |
Battery Pack Specifications
Pack Capabilities
- 12V Configuration
- 4s1p Combination
- Integrated BMS
- Includes wire, connector, and enclosure
Performance Limits
| Parameter | Value |
|---|---|
| Max Constant Discharging | 100A |
| Max Constant Charging | 50A |
| Cycle Life (80% DOD) | 2000+ times |
| Warranty | 3 years |
Applications
Recommended Applications
Wheelchairs & ScootersSolar/Wind StorageUPS BackupGolf TrolleysElectric Bikes
