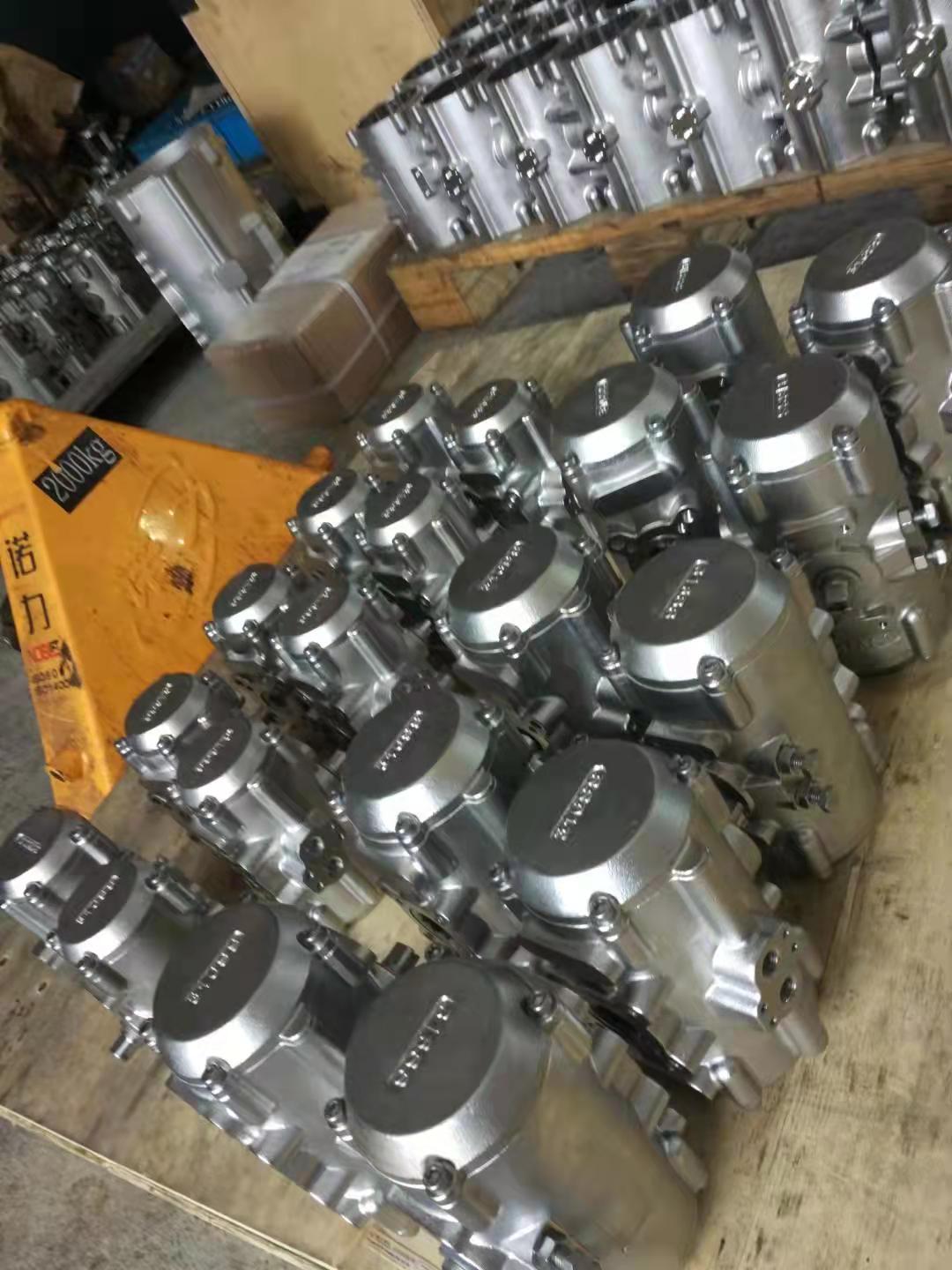

316 Stainless Steel Pneumatic Actuator
Pneumatic actuator made with 316 stainless steel, designed for robust performance. It is engineered for precise control and efficient operation.
Technical Specifications
Product Overview
High-Performance 316 Stainless Steel Actuator
This VSF series actuator is engineered for demanding industrial environments, offering both single and double-acting configurations. Constructed with high-grade materials like 316 stainless steel and 17.4 PH stainless steel, it ensures exceptional corrosion resistance and durability. Designed to meet rigorous international standards, it provides reliable thrust output for precise valve control in harsh chemical and offshore applications.
Technical Performance
Performance Highlights
200 bar
Max Supply Pressure
25,000 N
Actuator Thrust
71,753 N
Spring Thrust
- Operating Temperature
- -20°C to +80°C (Standard); up to -40°C (Special low temp)
Construction Materials
Material Specifications
| Component | Material / Specification |
|---|---|
| Piston Rod | 17.4 PH Stainless Steel (Corrosion resistant) |
| Tie Rods | ASTM A 320 L7 Alloy Steel (Zinc coated) |
| Piston Seals | Dynamic floating O-ring with lubricating guide rings |
| Mounting Adapter | Carbon steel with nickel-plated coupling |
| Body Construction | Fabricated Carbon Steel / 316 Stainless Steel |
Features & Design
Key Features
- Scotch yoke mechanism design
- Visual position indicator for full linear stroke
- Integral manual override facilities
- Safety spring cartridge assembly
- Optional hammer blow effect for wedge gate valves
- Interchangeable components across series
Compliance & Standards
- Design Standards
- ASME VIII div.1EN 13445ASTM B633ASTM A 320 L7
Applications
Suitable Applications
Hydraulic Butterfly ValvesHydraulic Cylinder ActuationHydraulic Rotary ActuationWedge Gate Valves
