Technical Specifications

Overview

Professional Rotary Drilling Rig

This 30-meter kelly bar rotary drilling rig is engineered for high-performance piling and foundation construction. Featuring a robust crawler-type telescopic chassis and an adjustable dozer, it is designed to navigate complex working conditions with superior stability and safety. The operator cabin prioritizes productivity with ergonomic controls, adjustable seating, and optional climate control systems for demanding environments.

Technical Specifications

Max Drilling Depth: 30 m
Drilling Diameter: 500-1600 mm
Chassis Type: Crawler-type telescopic

Operator Comfort

Cabin Amenities

Adjustable seats
Optional heating system
Optional air exchange system

Certifications

International Certifications: CEISOSGSCNAS

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

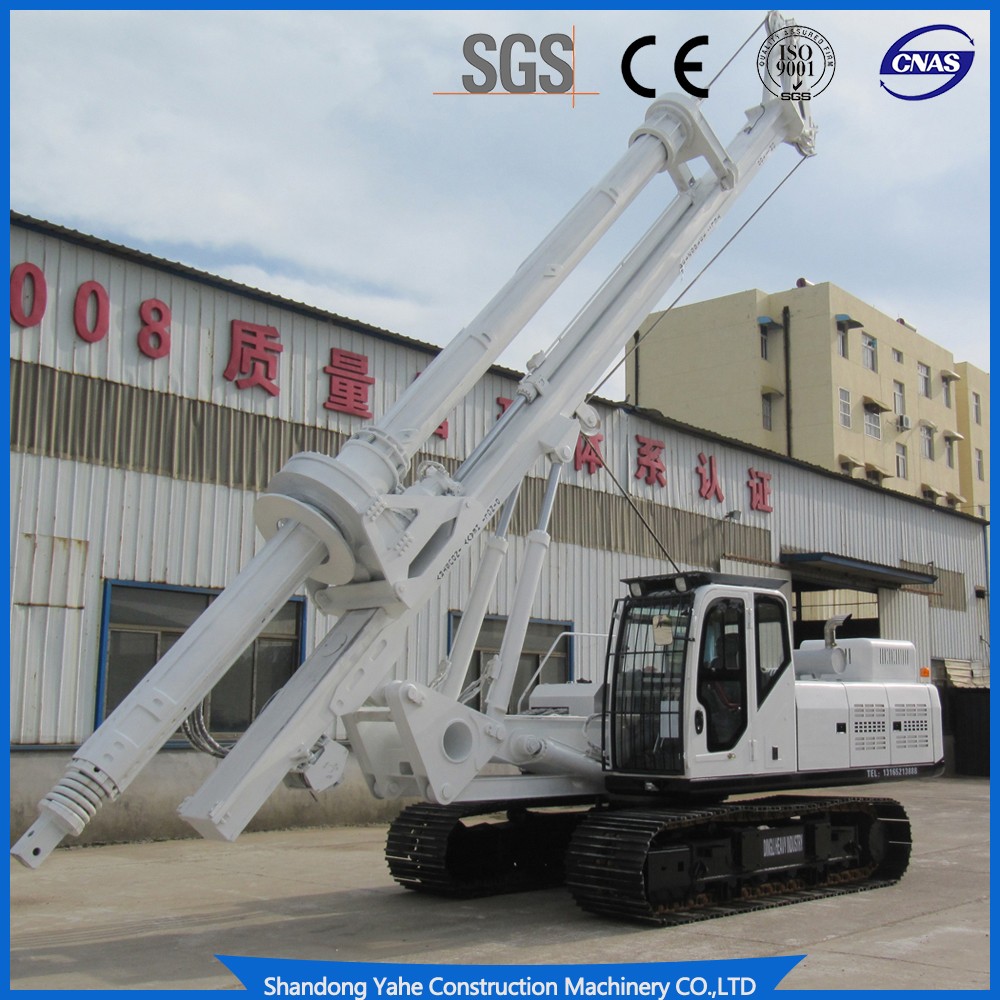

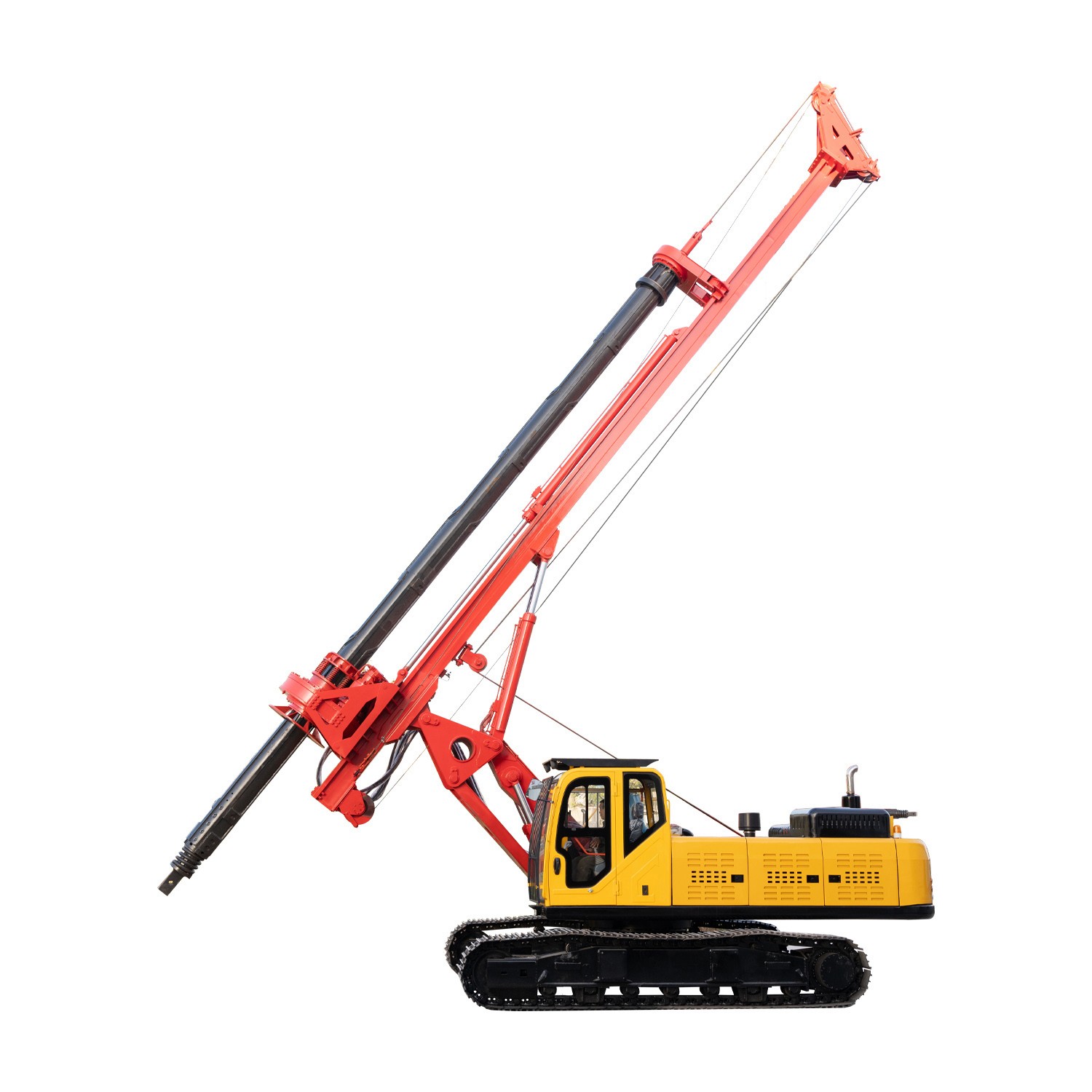

30M Kelly Bar Rotary Drilling Rig

This product is an integrated drilling rig with a maximum drilling depth of 30M and a drilling diameter of 500-1600MM. Different drill bits can be used for dry excavation, wet excavation, or drilling holes in hard ground.

Request a Quote Download PDFPDF

30M Kelly Bar Rotary Drilling Rig - Image 1
