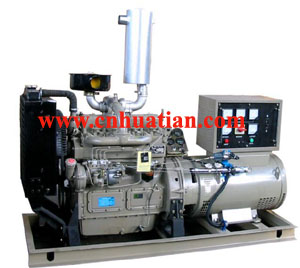

30kW Diesel Engine Generator Set
This 30kW diesel engine generator set is designed for reliable power generation. It features a robust diesel engine coupled with a high-efficiency alternator, providing stable and consistent electrical output.
Technical Specifications
Overview
Reliable Power Generation Solutions
This diesel engine generator series offers versatile power solutions ranging from 8kW to 300kW, suitable for industrial, commercial, and residential backup needs. Engineered for strong reliability, these units feature low fuel consumption and are designed for easy starting and convenient maintenance. Each unit is mounted on a sturdy base frame to ensure stability and ease of installation in various operational environments.
Performance Metrics
Power Output Range
8 kW
Minimum Rated Power
300 kW
Maximum Rated Power
Technical Specifications
Model Specifications
| Model | Rated Power (kW) | Engine Model | Cylinders | Weight (kg) |
|---|---|---|---|---|
| HR8GF | 8 | 295D | 2 | 500 |
| HR20GF | 20 | 495D | 4 | 800 |
| HR30GF | 30 | 495ZD | 4 | 900 |
| HR50GF | 50 | R4105ZD | 4 | 950 |
| HR100GF | 100 | R6105AZLD | 6 | 1,200 |
| HR200GF | 200 | HT6126ZLD | 6 | 1,700 |
| HR300GF | 300 | HT618D | 6 | 1,700 |
Features
Control Panel Features
- Voltage monitoring
- Current monitoring
- Frequency monitoring
- Start/Stop controls
- Key Advantages
- Low Fuel ConsumptionHigh ReliabilityEasy StartConvenient Maintenance
