Technical Specifications
Product Overview
Precision Power Regulation

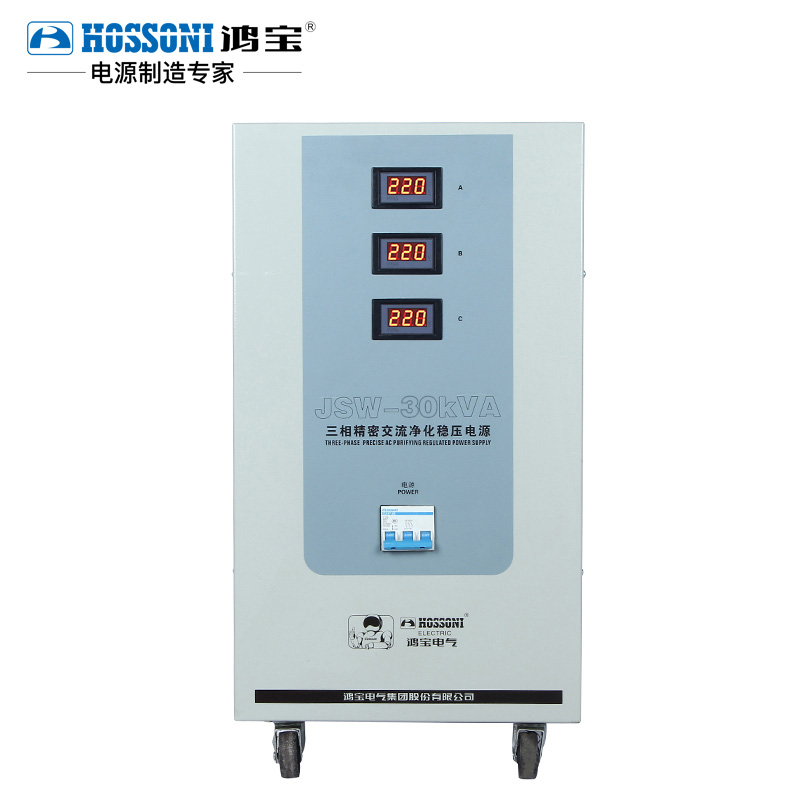

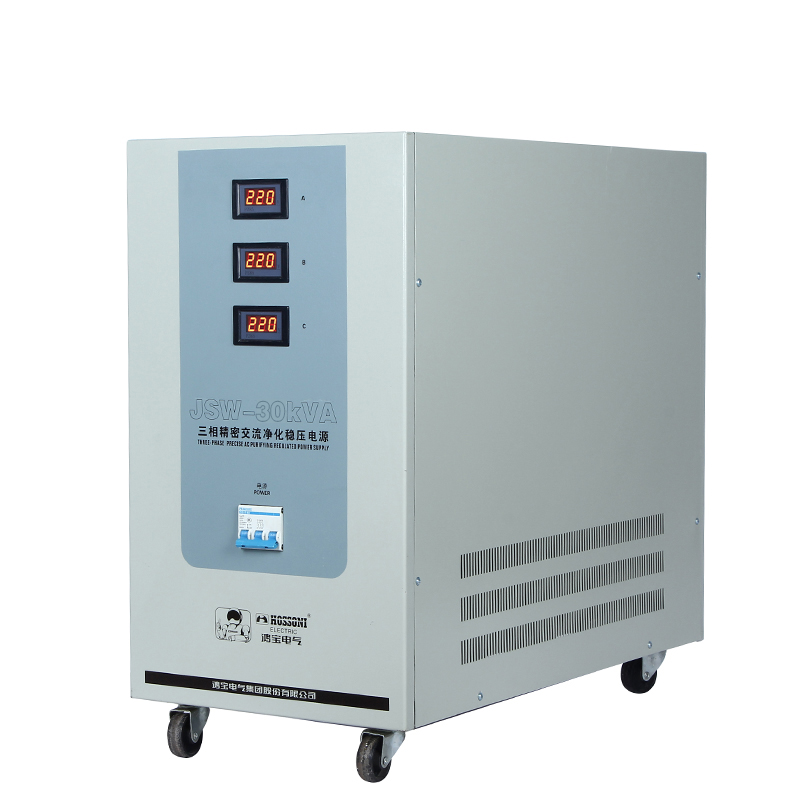

This three-phase precision AC purifying regulated power supply combines voltage stabilization and purification into a single, integrated unit. Utilizing advanced sinusoidal energy-distribution technology, it offers superior dynamic response speeds and high precision to ensure consistent performance for sensitive electronic equipment. Designed for industrial reliability, the system effectively absorbs noise and controls peak voltages from the power grid.
Electrical Specifications
Rated Capacity
30 kVA
Capacity
- Input Voltage (3-Phase)
- 320-430V
- Output Voltage (3-Phase)
- 380V ±1%
- Frequency
- 50Hz ±4%
Performance Metrics
- Efficiency
- 90 %
- Response Time
- 20-100ms
- Wave Form Distortion
- ≤5%
- Loading Effect
- ≤±0.5%
Safety & Environment
- Dielectric Strength
- 1,500V/min
- Insulation Resistance
- ≥2MΩ
- Ambient Temperature
- -10 to 40°C
- Over Voltage Protection
- 426V ±7V (3-Phase)
Design Features
- Key Features
- Digital DisplayWheeled MobilityCooling FanSinusoidal Energy Distribution
