Technical Specifications
Overview
Reliable 30kVA Power Solution

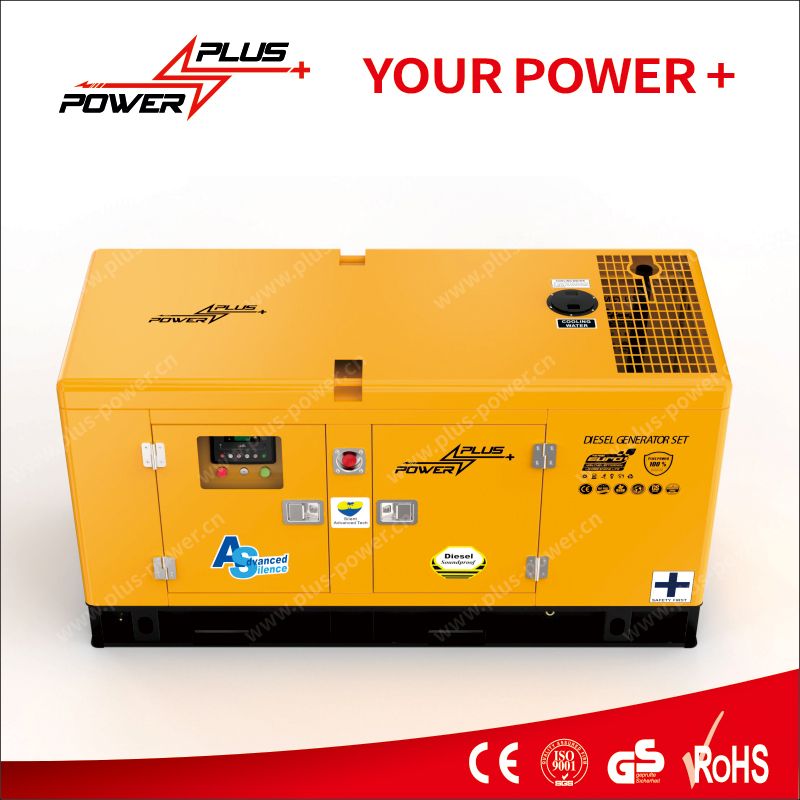

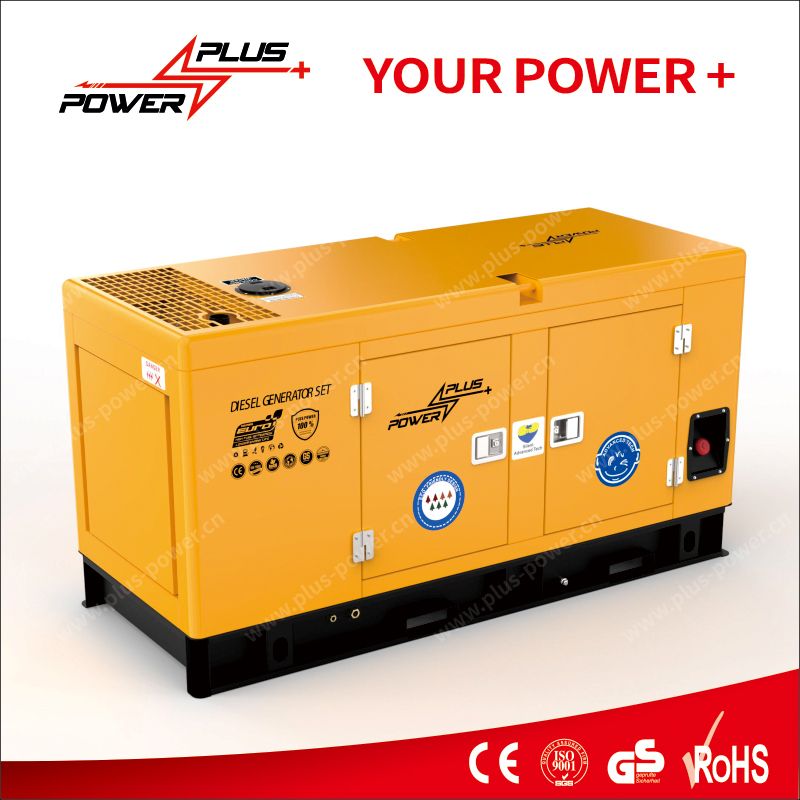

This 30kVA diesel generator set is a robust and reliable power solution engineered for consistent performance in industrial, commercial, and residential applications. Featuring a sound-attenuated enclosure for quiet operation and an advanced control system, it ensures a stable power supply while maintaining safety through automatic shutdown protocols. Built to withstand tropical conditions, this unit offers durability and ease of maintenance for long-term operational efficiency.
Performance & Engine
- Rated Power
- 30 kVA
- Engine Type
- Four-stroke, multi-cylinder, water-cooled, direct fuel injection
- Fuel Runtime
- 8-10 hours
Alternator
Alternator Specifications
- Synchronous, four-pole, brushless excitation
- Self-exciting and self-regulating
- IP-22 protection
- Class H insulation
Enclosure & Design
Noise Level
70 dBA at 7m
Noise Level
- Enclosure Features
- Sound AttenuatedHinged Access DoorsKey Locking LatchesStainless Steel HingesPanel Viewing WindowRain Cap & Shield
Safety & Protection
Automatic Shutdown Conditions
- Low Oil Pressure
- High Engine Temperature
- Low Fuel Level
- Over/Under Speed
- Battery Charge Failure
Certifications
Compliance Standards
CEISO 9001GSRoHSIEC 60034
Warranty
- Warranty Coverage
- 1 year or 1000 hours operation, whichever occurs first
