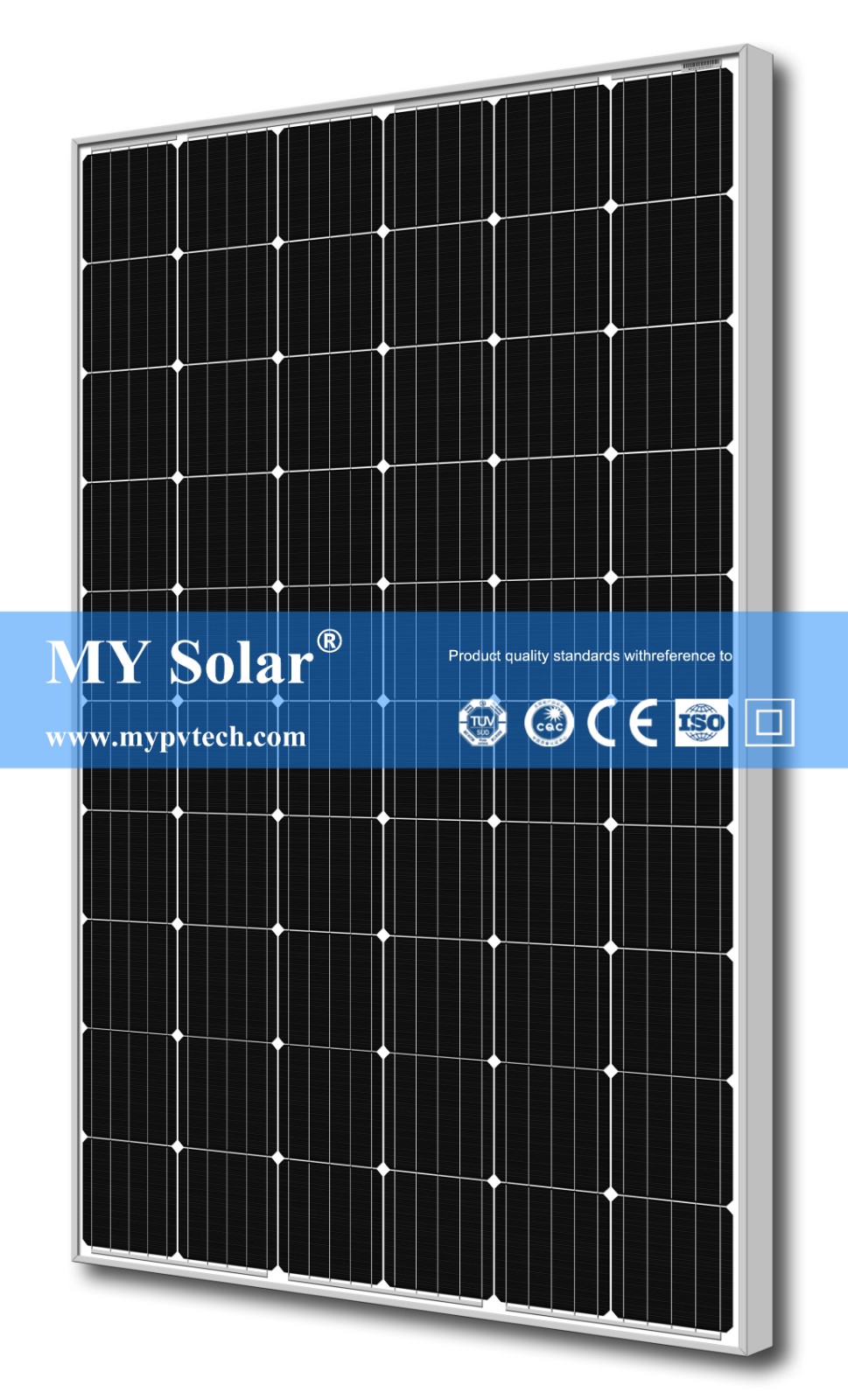

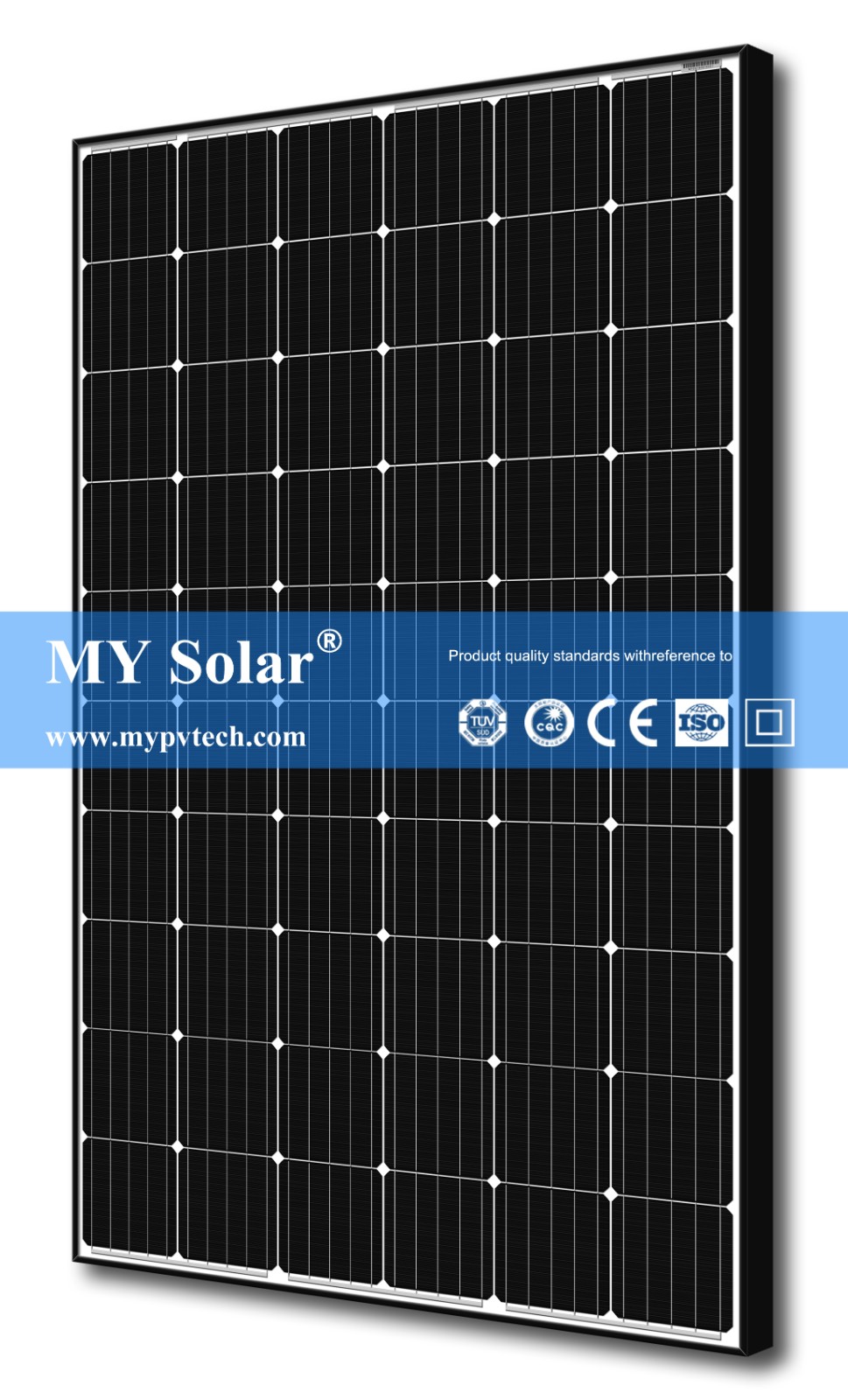

305W-325W Monocrystalline Solar Panel
This monocrystalline solar panel provides a power output ranging from 305W to 325W. It utilizes passivated emitter rear contact (PERC) technology to achieve higher module conversion efficiency.
Technical Specifications
Overview
High-Efficiency Monocrystalline Solar Module
This high-efficiency monocrystalline solar panel series, ranging from 305W to 325W, is engineered for optimal energy conversion using advanced Passivated Emitter Rear Contact (PERC) technology. Designed for durability in diverse environments, the module features robust construction resistant to high salt mist and ammonia, ensuring long-term reliability. With its 5/6/9 busbar technology and textured glass surface, it delivers superior performance even in low-light conditions, making it an ideal choice for residential, commercial, and industrial rooftop installations.

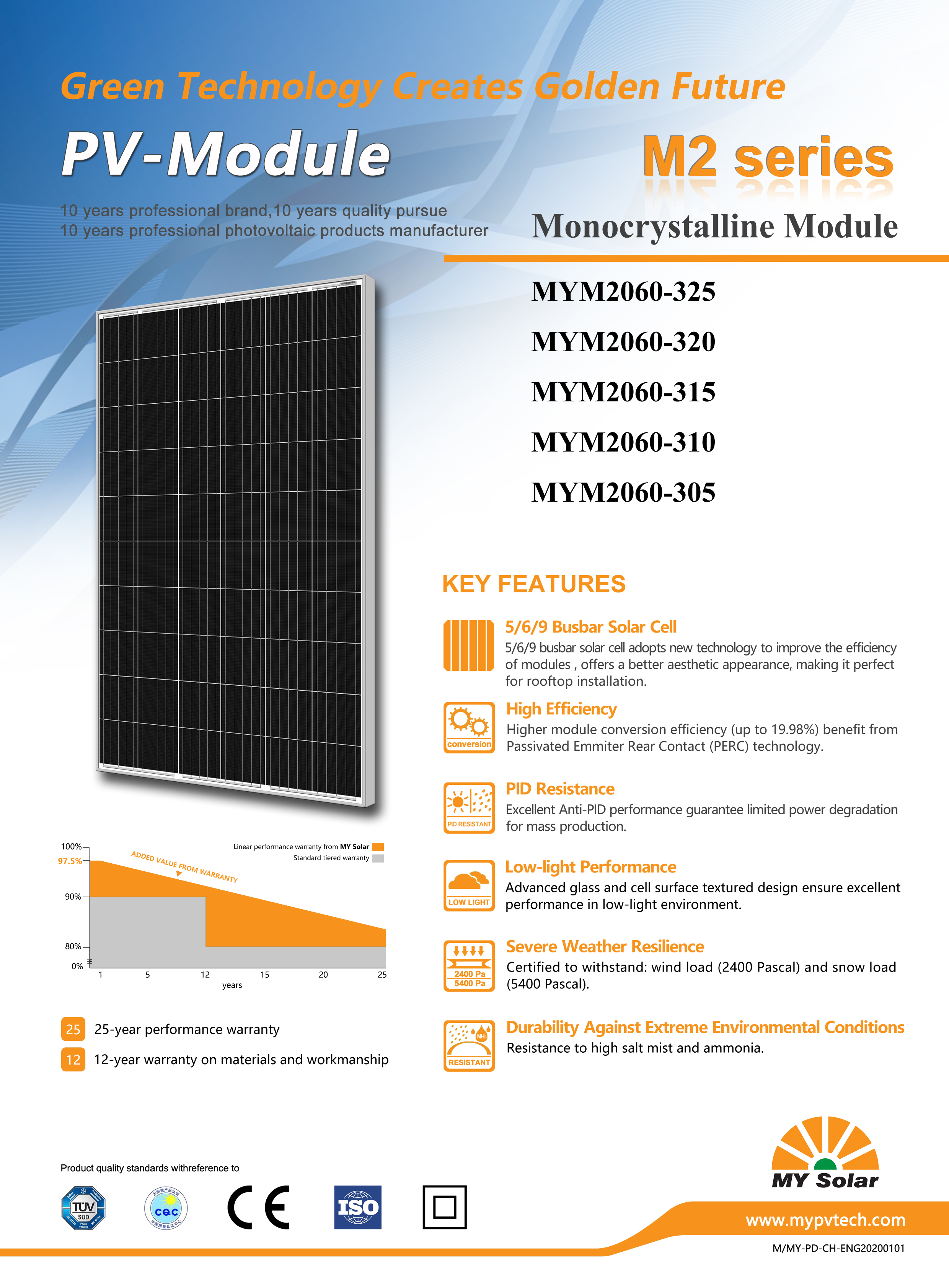

- Key Features
- PERC TechnologyAnti-PID PerformanceLow-light Optimized5/6/9 Busbar CellsWeather Resistant
Electrical Specifications
Performance Metrics
Electrical Characteristics (STC)
| Parameter | Value Range |
|---|---|
| Max Power (Pmax) | 305W - 325W |
| Max Power Voltage (Vmp) | 32.8V - 33.6V |
| Open-circuit Voltage (Voc) | 40.3V - 41.2V |
| Max Power Current (Imp) | 9.30A - 9.67A |
| Short-circuit Current (Isc) | 9.78A - 10.2A |
Mechanical and Environmental
Physical Dimensions & Weight
- Dimensions: 1640 x 992 x 35 mm
- Weight: 18.5 kg
- Cell Type: Mono PERC 156.75 x 156.75 mm
- Cell Configuration: 60 Cells (6x10)
Environmental Resilience
- Wind Load Capacity: 2400 Pascal
- Snow Load Capacity: 5400 Pascal
- Operating Temperature: -40°C to +85°C
- Junction Box Rating: IP67 Waterproof
Logistics
Packaging Configuration
- 400 pcs per 20'GP container
- 840 pcs per 40'GP container
- 896 pcs per 40'HQ container
Warranty
Warranty Coverage
- 12-year warranty on materials and workmanship
- 25-year performance warranty
