Technical Specifications
Overview
Compact Power for Challenging Terrain

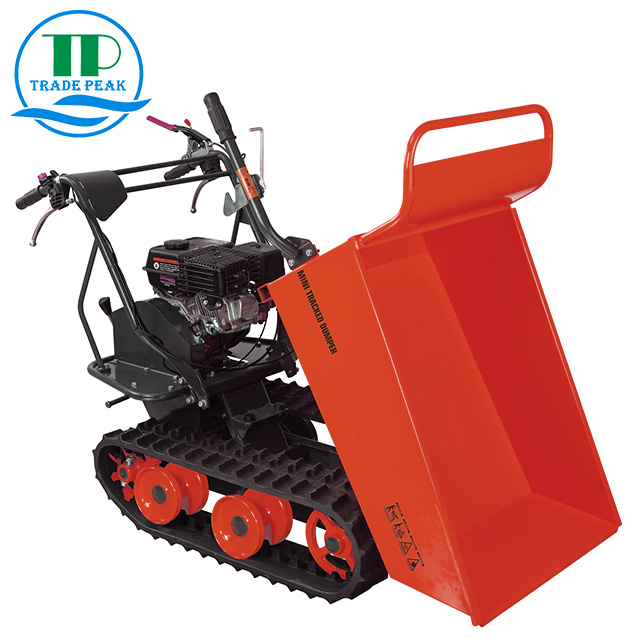

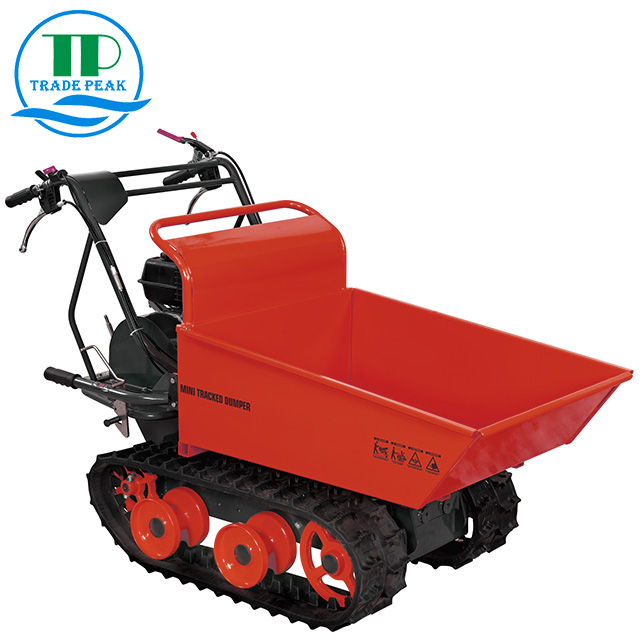

This 300kg mini tracked dumper is engineered for efficient material transport in confined spaces and across difficult terrain. Featuring a robust solid steel design, a manual tilt hopper, and a maintenance-free gear drive system, it provides reliable performance for construction, landscaping, and agricultural projects. The inclusion of a snowblade adds versatility, allowing for year-round utility in various weather conditions.
Performance
Load Capacity
300 kg
Max Load
Engine Specifications
- 6.5 HP
- 196 CC
- Gasoline fuel
- Transmission & Drive
- 3 Forward + 1 Reverse gears with Gearbox drive
- Starting Method
- Recoil startElectric starter
Dimensions & Capacity
Hopper Dimensions
| Dimension | Value |
|---|---|
| Length | 860 |
| Width | 630 |
| Depth | 290 |
- Machine Weight
- 174 kg
- Packing Size (L x W x D)
- 1530 x 750 x 1130 mm
Features
Key Features

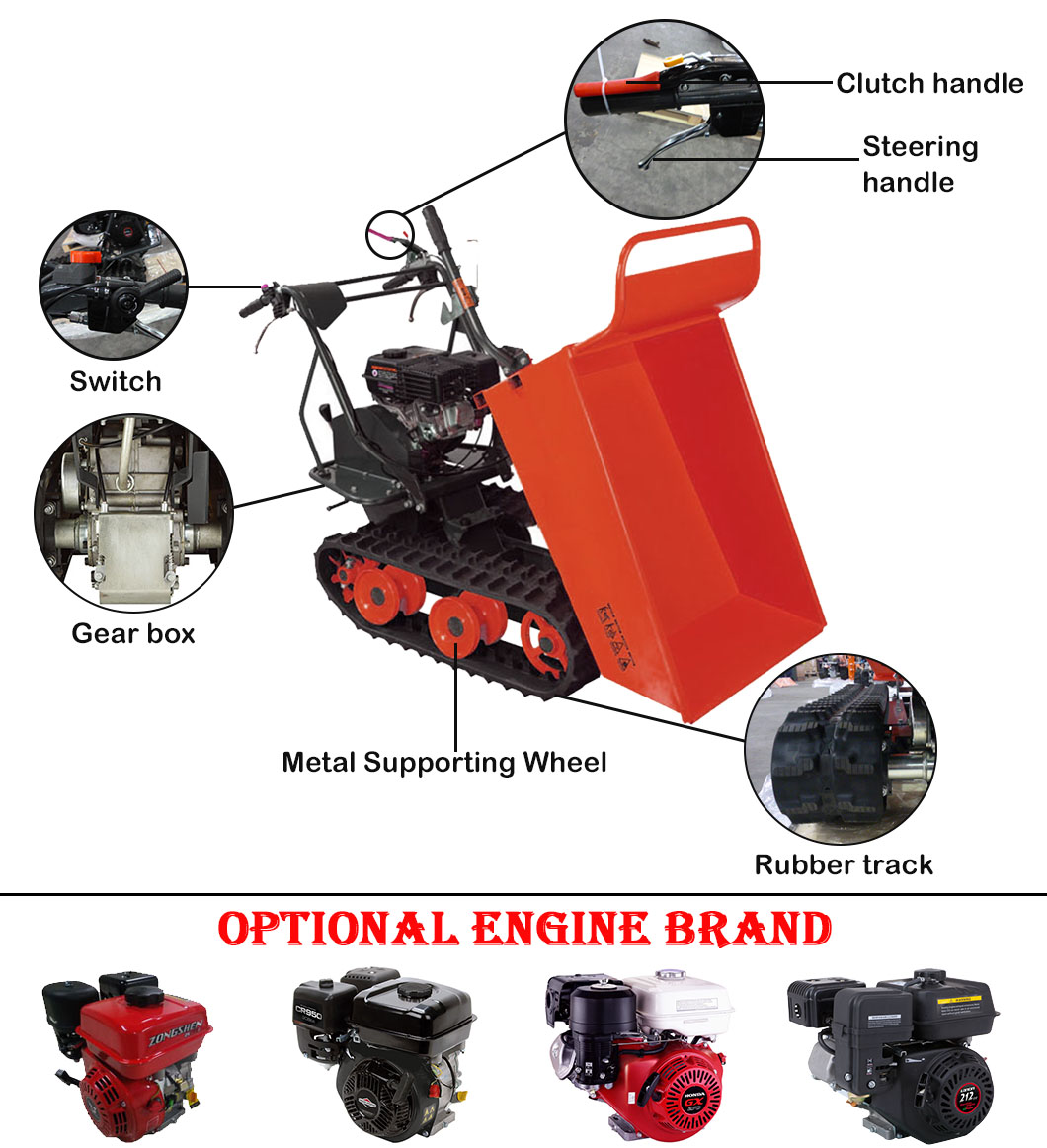

Rubber TracksManual TiltSnowblade IncludedSolid Steel ConstructionMaintenance-Free Drive
- Crawler Size
- 180 x 60 mm
