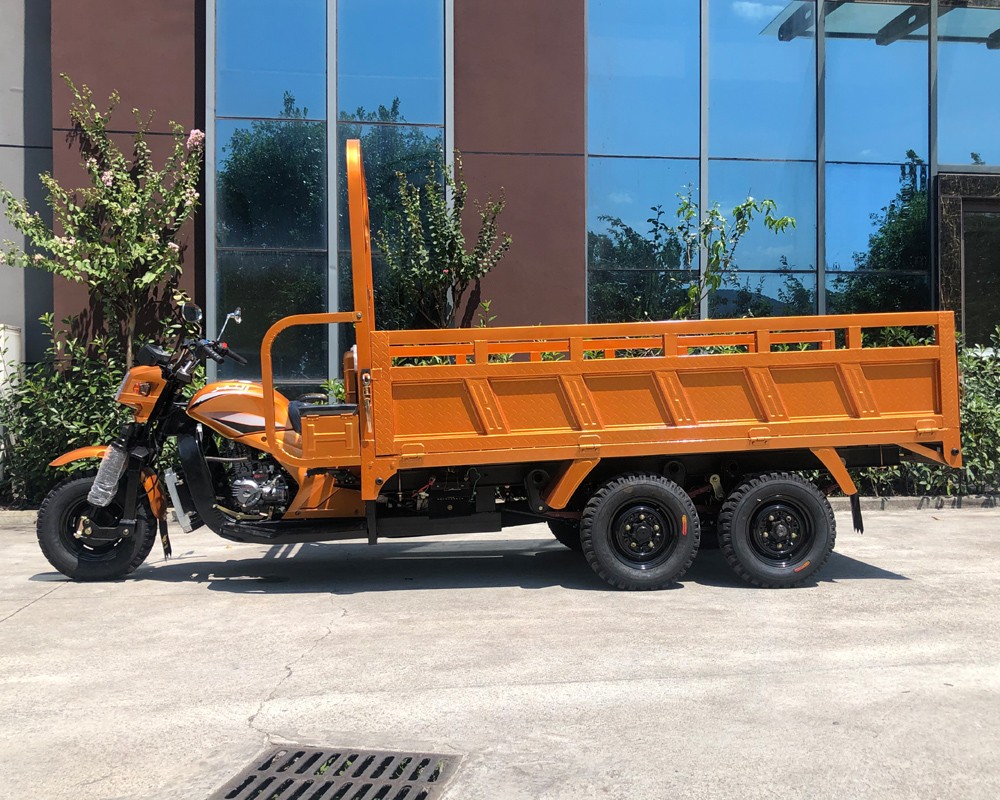

300CC Water-Cooled Double Axle Cargo Tricycle
This 300CC water-cooled gasoline cargo tricycle is engineered for heavy-duty hauling and reliable performance. Featuring a robust double rear axle configuration, it provides enhanced stability and load-bearing capacity.
Technical Specifications
Overview
Heavy-Duty Cargo Solution
The TR-28 is a robust 300cc water-cooled gasoline cargo tricycle engineered for demanding heavy-duty hauling. Featuring a reinforced double rear axle configuration and a spacious cargo bed, it offers exceptional stability and a load capacity of up to 3000kg. Designed for reliability, the water-cooled engine ensures consistent performance and thermal management during extended operation.
Performance
Load Capacity
3,000 kg
Max Load
- Engine Displacement
- 300 cc
- Engine Type
- 1-cylinder, 4-stroke, Water-cooled
- Transmission
- 5 forward + 1 reverse
- Starter System
- ElectricKick
Construction & Chassis
Suspension System
- Front: Giant mountain type absorber
- Rear: 7-piece heavy-duty suspension
- Chassis Specification
- 50*10 heavy-duty
- Rear Axle
- Full floating, 220mm drum
Cargo & Dimensions
Cargo Box Features
Flowered bottom700mm high engineering box
- Cargo Box Dimensions
- 2.8m x 1.45m
Additional Features
- Battery
- 28A
- Tire Size
- 5.00-12
- Comfort & Protection
- Luxury sunshine-proof design
