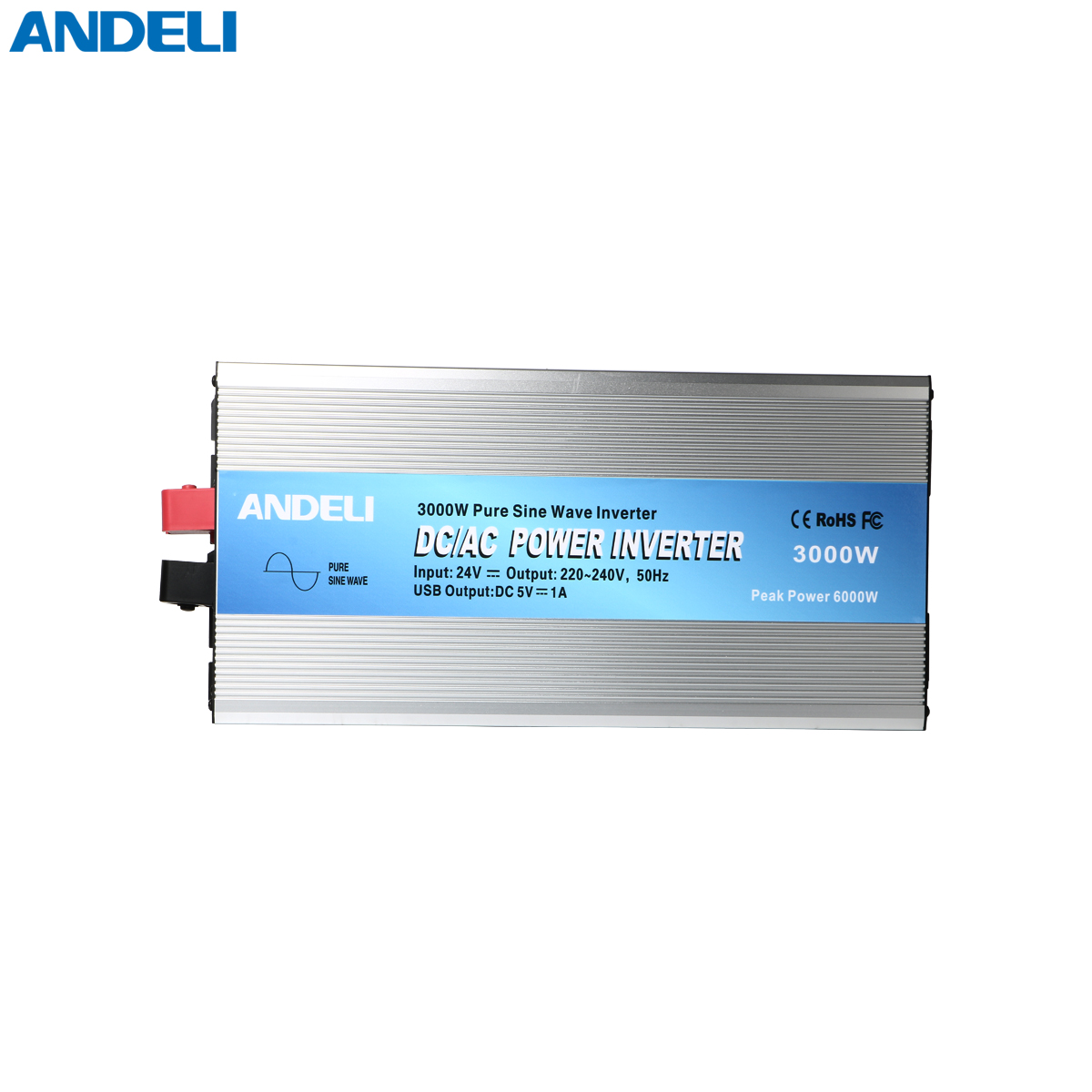

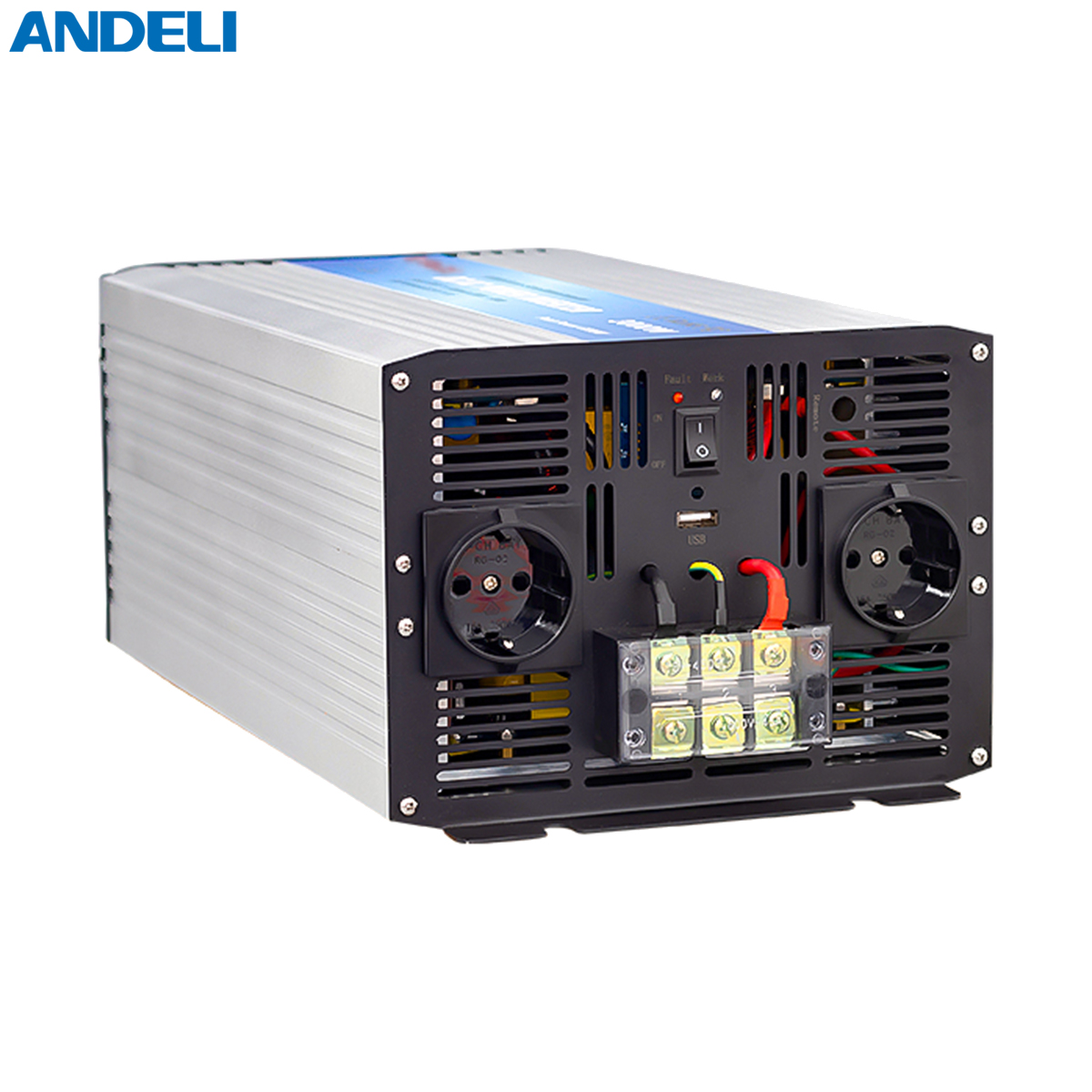

3000W Pure Sine Wave Power Inverter
This 3000W pure sine wave inverter converts DC power from a battery into AC power. It is suitable for running a wide range of electronic devices and appliances with safety features such as overload protection, over-voltage protection, and short-circuit protection.
Technical Specifications
Overview
High-Efficiency 3000W Pure Sine Wave Inverter
This 3000W pure sine wave power inverter provides clean and stable AC power, making it ideal for sensitive electronics, household appliances, and industrial equipment. It features a robust aluminum shell for superior heat dissipation and a double CPU design to ensure faster conversion and high efficiency. Designed for versatility, it supports multiple socket types and includes comprehensive protection functions for safe operation in vehicles, boats, and off-grid setups.
Performance Metrics
Key Performance Metrics
3,000 W
Rated Power
6,000 W
Peak Power
50 Hz
Frequency
Electrical Specifications
Input Voltage
- 12V DC
- 24V DC
- Output Voltage
- 220V - 240V AC
- USB Charging Port
- DC 5V-1A
Safety & Protection
- Integrated Protections
- Short Circuit ProtectionOver-Temperature ProtectionOver-Voltage ProtectionUnder-Voltage ProtectionOverload ProtectionShutdown Protection
- Cooling System
- Intelligent cooling fan (automatically starts at 40°C)
Physical Characteristics
- Dimensions
- 396mm x 200mm x 148mm
- Enclosure Material
- Aluminum shell with hard oxidation treatment
Global Compatibility
Available Socket Types
UniversalAmericaAmerica-JapanEurope/GermanyBritishAustraliaSouth AfricaFrance
Compliance
- Certifications
- CERoHSFC
Applications
Recommended Applications
- Household Appliances
- Office Equipment
- Industrial Applications
- Lighting Systems
- Vehicles & Boats
- Off-grid Power Systems
