Technical Specifications
Overview

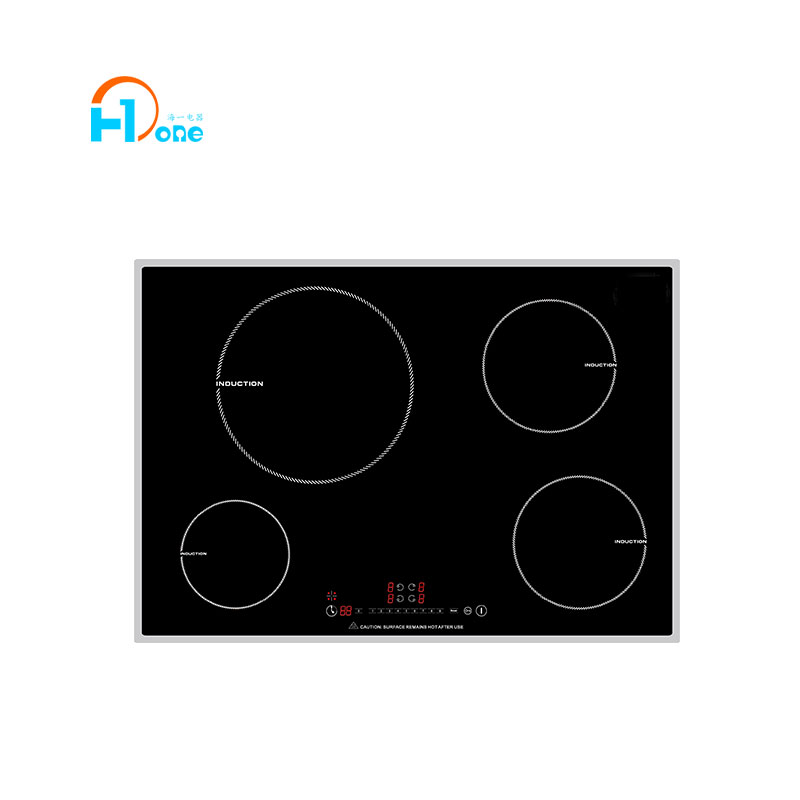

High-Efficiency 30-Inch Induction Cooktop
This 30-inch built-in induction cooktop features four independent cooking zones, designed for modern kitchens requiring high energy efficiency and precise temperature control. Built with durable Schott/Kanger ceramic glass and advanced half-bridge PCB technology, this unit offers reliable performance for various cooking methods, including frying, boiling, and grilling. Safety is prioritized with features such as child lock, auto-pan detection, and residual heat indicators.
Technical Specifications
- Glass Dimensions
- 760 x 520 x 4 mm
- Cutout Dimensions
- 730 x 490 mm
- Unit Weight
- 15 Kg
- Total Power Rating
- 7400 W
- Voltage Range
- 200-240 V
Cooking Zones
Cooking Zones Configuration
| Zone | Nominal Power | Diameter |
|---|---|---|
| Left Front | 2300W/3000W | 210mm |
| Left Rear | 1300W/1600W | 160mm |
| Right Front | 1300W/1600W | 160mm |
| Right Rear | 1800W/2300W | 180mm |
Safety & Features
Safety Features
Child LockAuto Pan DetectionAutomatic Turn-OffResidual Heat IndicatorOverheating ProtectionWater Over-flow Protection
- Expected Lifespan
- 10 years
Logistics
Packaging Details
- Honeycomb Cardboard Protection
- PE Bag
- Carton Box (820 x 595 x 115 mm)
