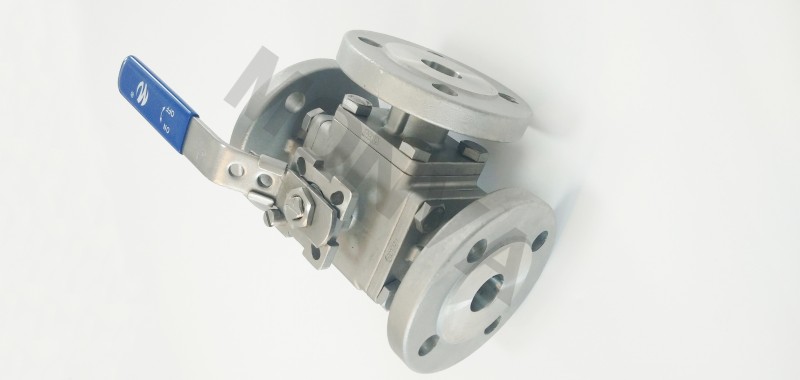

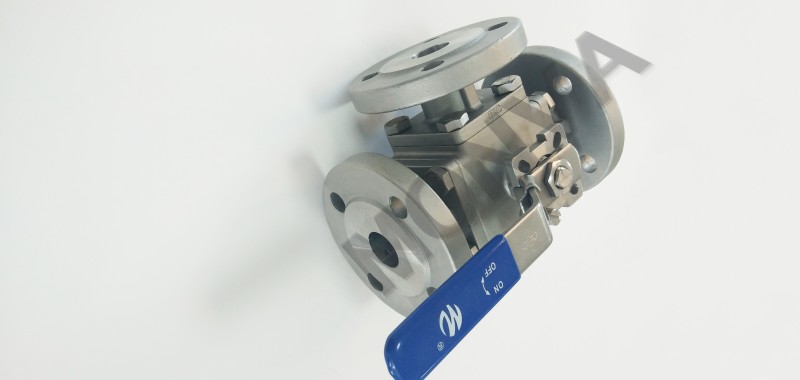

3-Way Flanged Ball Valve with Mounting Pad
This 3-way ball valve is equipped with flanged connections and a mounting pad. It is designed for diverting or mixing fluid flow in industrial applications.
Technical Specifications
Overview
Versatile 3-Way Flow Control
This 3-way flanged ball valve is engineered for industrial applications requiring precise fluid diversion or mixing. Featuring a robust investment-cast body and an ISO 5211 mounting pad, it allows for easy automation and reliable manual operation. The valve is designed to meet international standards, ensuring compatibility across diverse piping systems.
Technical Standards
Mounting Pad
ISO 5211
- Flange Connections
- DIN EN1092-1 PN16ANSI B16.5
Performance Metrics
Pressure Ratings
150 Lb
Class
16 PN
Nominal Pressure
- Working Temperature
- -25℃ to +180℃
Material Specifications
Available Materials
- CF8M (Stainless Steel 316)
- CF8 (Stainless Steel 304)
- CF3M (Low Carbon 316L)
- WCB (Carbon Steel)
- Casting Method
- Investment casting for body and cap
Operation & Design
- Valve Configuration
- 3-Way Flanged Ball Valve
- Position Indicator
- Yes
- Control Type
- Lever handle with ON/OFF indicators
