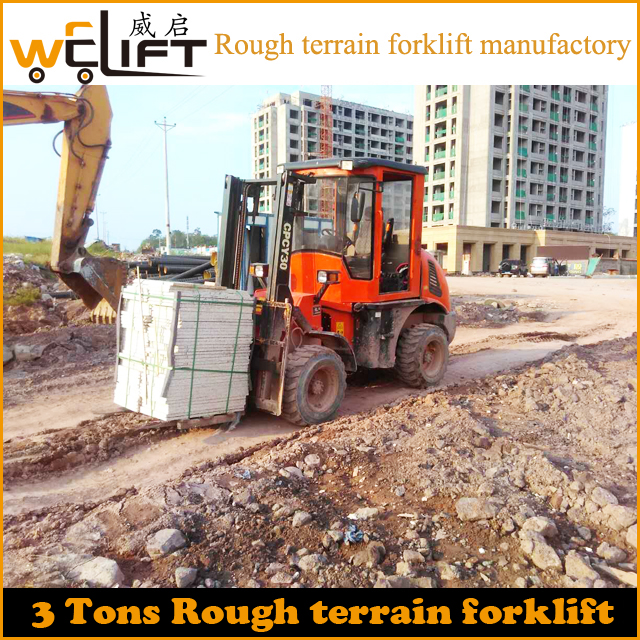

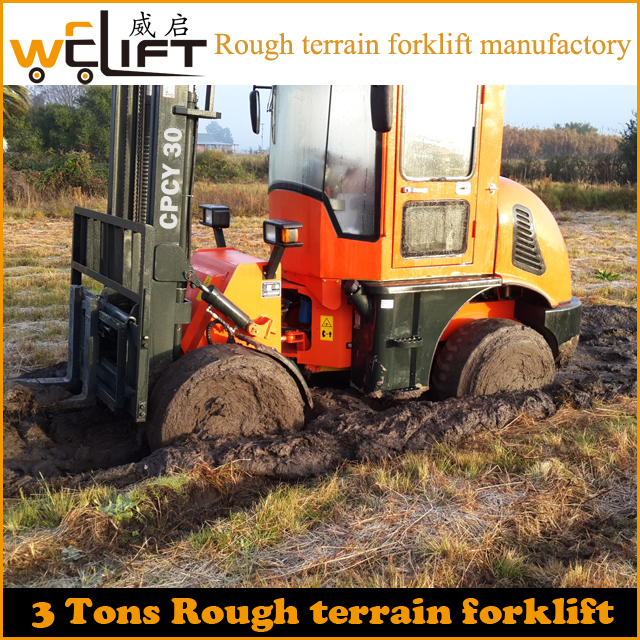

3-Ton Rough Terrain Forklift
This 3-ton rough terrain forklift is designed for operation on uneven and challenging surfaces. It features large, heavy-duty tires for enhanced traction and stability.
Technical Specifications
Overview
Built for Challenging Environments
The 3-Ton Rough Terrain Forklift is engineered for superior performance in demanding outdoor settings. Featuring robust construction, high ground clearance, and large heavy-duty tires, it ensures efficient material handling on uneven surfaces such as construction sites and agricultural fields. This unit combines a powerful lifting capacity with an ergonomic design to maximize both productivity and operator safety.
Performance Metrics
Rated Load
3,000 KG
Rated Load
50 %
Max Climbing Gradient
Lifting Specifications
| Parameter | Value |
|---|---|
| Lifting Height | 3000-5000 mm |
| Load Center | 565 mm |
| Free Lift Height | 15 mm |
| Max Lifting Speed (Full Load) | 372 mm/s |
Technical Specifications
Dimensions
- Length: 4585 mm
- Tooth Width: 1700 mm
- Height: 2720 mm
- Min Ground Clearance: 260 mm
Maneuverability
- Max Steering Angle: ±35°
- Rear Axle Swing Angle: ±12°
- Min Turning Radius: 4500 mm
Operating Speeds
| Direction | Gear I | Gear II |
|---|---|---|
| Advance (km/h) | 8 | 16 |
| Backlash (km/h) | 8 | 16 |
- Mast Tilt Angle
- 6° / 12° (Front/Rear)
- Total Weight
- 3268 Kg
- Max Traction
- 2587 Kgf
