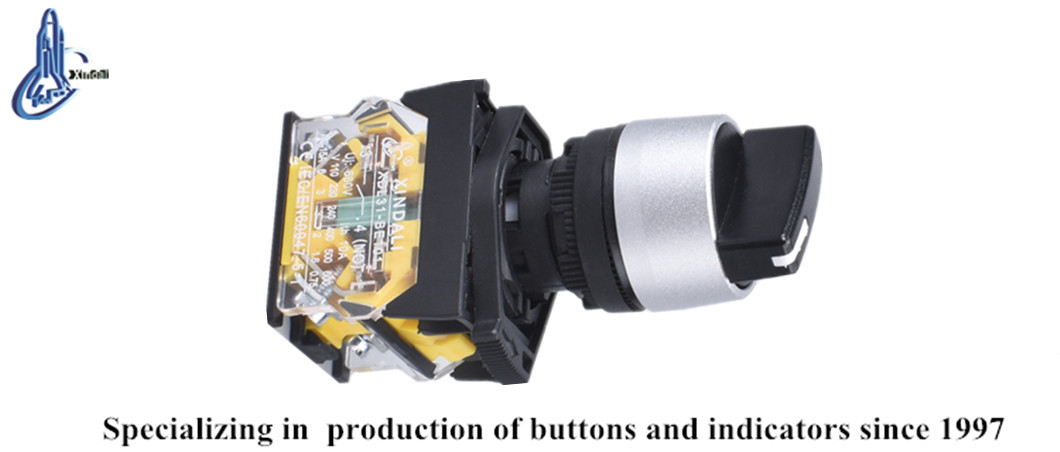

3-Position Selector Switch with Elevator Push Button
This 3-position selector switch is designed with a black elevator push button. It is suitable for use in elevator control panels and other demanding environments, providing reliable and precise operation.
Technical Specifications
Overview
Industrial Control Selector Switch
The XDL31-BD33 is a 3-position selector switch integrated with a 2-position black elevator push button. Designed for industrial control circuits, it operates reliably in AC voltages up to 660V. Its robust construction utilizes zinc alloy and high-grade anti-flam plastic, ensuring longevity and safety in demanding environments.
Electrical Specifications
Rated Operating Current
3 A
AC-15 (240V)
3 A
DC-13 (250V)
- Rated Insulation Voltage (Ui)
- 600 V
- Conventional Thermal Current (Ith)
- 10 A
Mechanical Performance
Mechanical Life
| Component | Cycles |
|---|---|
| Push Button | 3,000,000 |
| Emergency Button | 300,000 |
Environmental Data
- Operating Temperature
- -5°C to +55°C
- Relative Humidity
- 35% - 85% RH
Compliance
Applied Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- Certifications
- CEISO 9001RoHSUL
Installation
Protection Rating
IP40IP54IP65IP66IP67IP68
- Mounting Hole Diameter
- 22 mm
