3-Position Selector Switch for Elevator Control
This 3-position selector switch is designed for reliable operation in demanding industrial environments, commonly used as a 2-position elevator position switch. It offers precise control and clear indication of the selected position.
Technical Specifications
Product Overview
Industrial-Grade Selector Switch

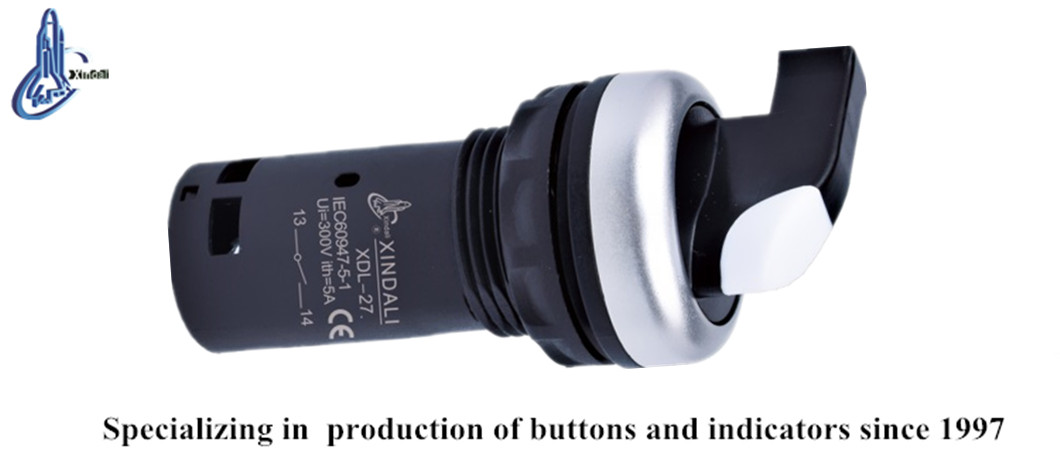

The XDL27-CDJ25 is a professional 3-position selector switch engineered for reliable control and signal interlocking in demanding industrial environments. Designed for versatility, this switch supports both 3-position and 2-position configurations with a durable long-handle design. It features high-grade silver alloy contacts to minimize electrical erosion and is built with a robust combination of zinc alloy and anti-flame plastics to ensure long-term operational integrity.
Technical Specifications
Mechanical Life
500,000 cycles
Selector Switch Cycles
- Rated Insulation Voltage (Ui)
- 600 V
- Conventional Heating Current (Ith)
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Certifications & Standards
- Standards & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Design & Installation

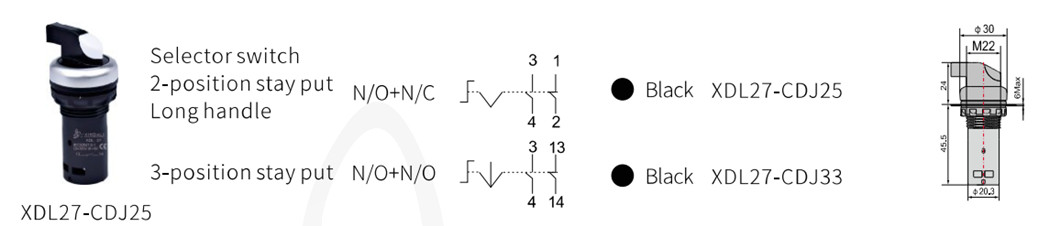

Mounting Dimensions
| Dimension Type | Value |
|---|---|
| Mounting Thread | M22 |
| Bezel Diameter | 30mm |
| Internal Bore | 20.3mm |
