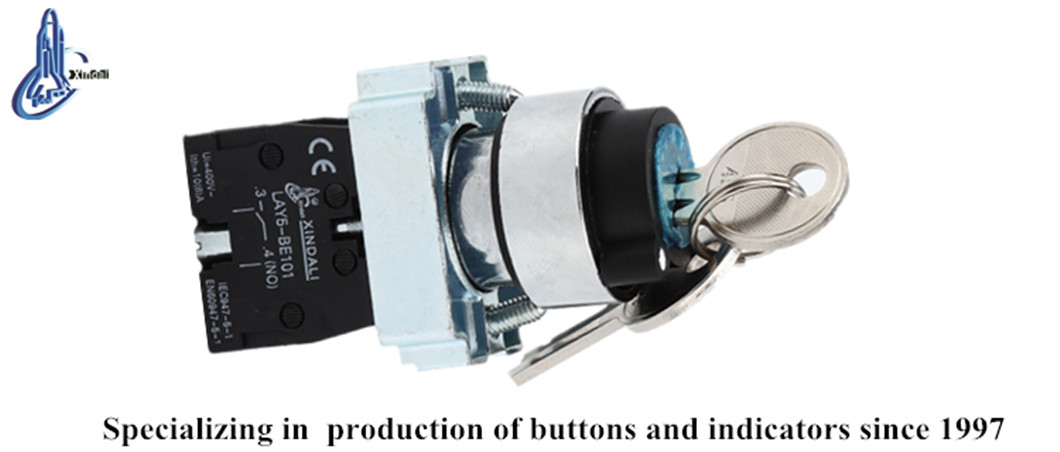

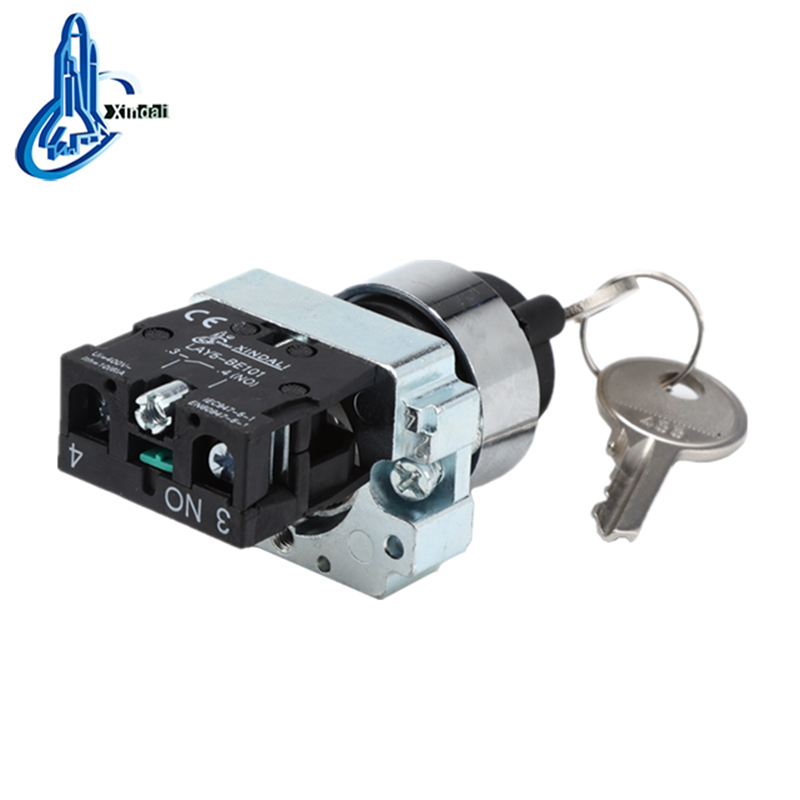

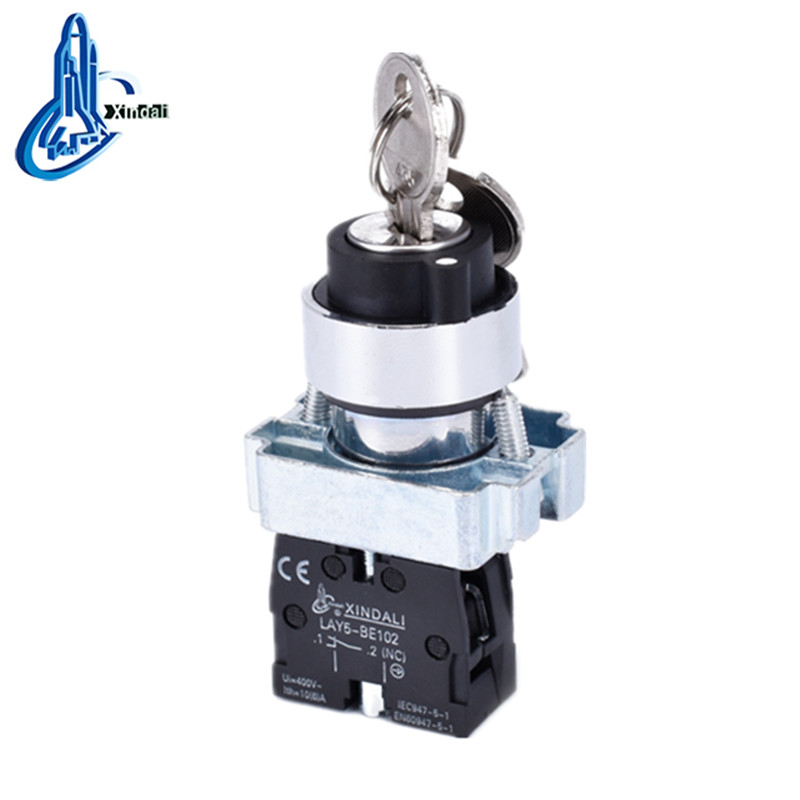

3-Position Latching Key Switch for Elevator Control Panels
This 3-position latching key switch is designed for elevator control panels. It features a key-operated mechanism for secure and reliable operation.
Technical Specifications
Product Overview
Professional Elevator Control Solution
This 3-position latching key switch is engineered specifically for elevator control panels and industrial circuit management. Featuring a robust zinc alloy and high-grade anti-flame plastic construction, it offers exceptional durability and resistance to electrical erosion. The key-operated mechanism ensures secure, unauthorized-access-free operation, making it an ideal choice for demanding environments where safety and reliability are paramount.
Technical Specifications
Mechanical Life
500,000 cycles
Selector Switch
Electrical Life
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Compliance & Standards
Industry Standards
GB/T14048.1IEC60947-5-1EN60947-5-1
- Certifications
- CEISO 9001RoHSUL

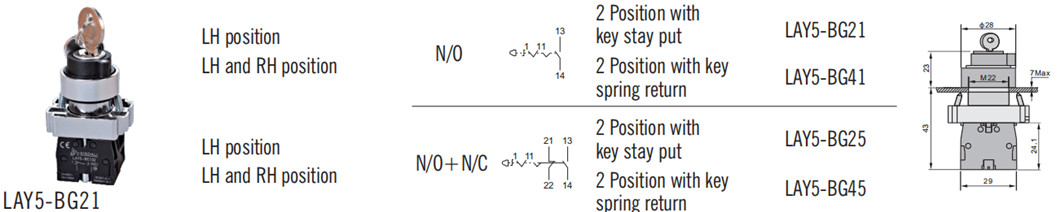

Mounting & Dimensions
Mounting Details
- M22 mounting thread
- 28mm head diameter
- 29mm base width
