3-Position Key Selector Switch for Elevator Control
This 3-position key selector switch is designed for elevator control panels and industrial applications. It features a durable metal push button and a keyed selector mechanism for secure operation.
Technical Specifications
Product Overview
Professional Elevator Control Switch

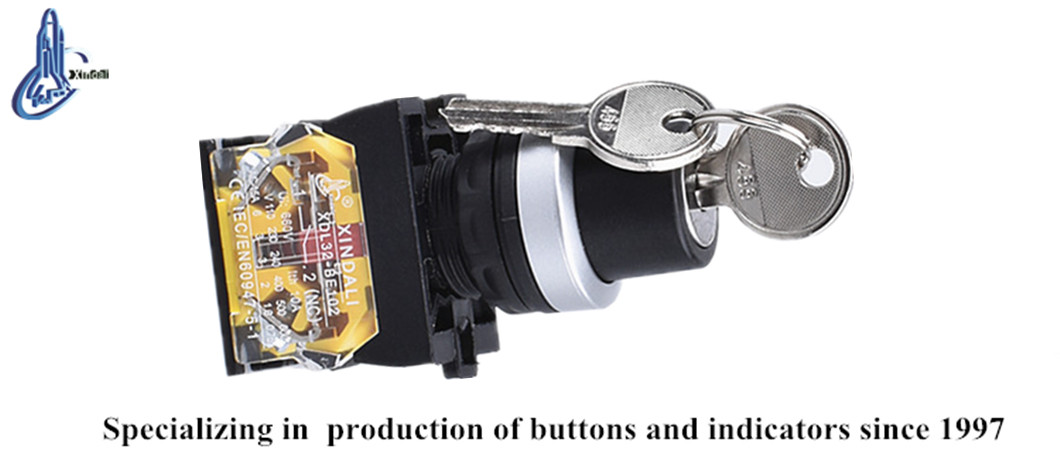

The XDL32-CG35 is a high-performance 3-position selector key switch engineered for industrial and elevator control systems. Constructed from durable zinc alloy and high-grade anti-flam plastic, it ensures reliable operation in demanding environments. Featuring specialized silver alloy contacts, this switch offers excellent resistance to electrical erosion, meeting strict international safety standards for industrial signaling and interlocking.
Electrical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Rated Current
Insulation Details
- Insulation Voltage (Ui): 600V
- Withstanding Impulse Voltage (Uimp): 6kV
- Pollution Grade: 3
- Short-circuit Protection: 10A fuse (IEC269-1 compliant)
Environmental & Mechanical
Operating Temperatures
- Operating: -5°C to +55°C
- Storage: -25°C to +70°C
Protection Rating
IP40IP54IP65IP66IP67IP68

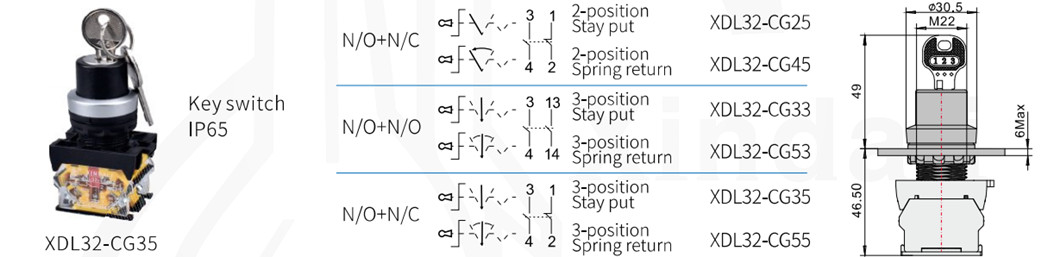

Mechanical Specifications
| Feature | Value |
|---|---|
| Mounting Diameter | 30.5mm |
| Fastening Torque | 0.8Nm (Max 1.2Nm) |
| Humidity | 35-85% RH |
Compliance
- Compliance & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
