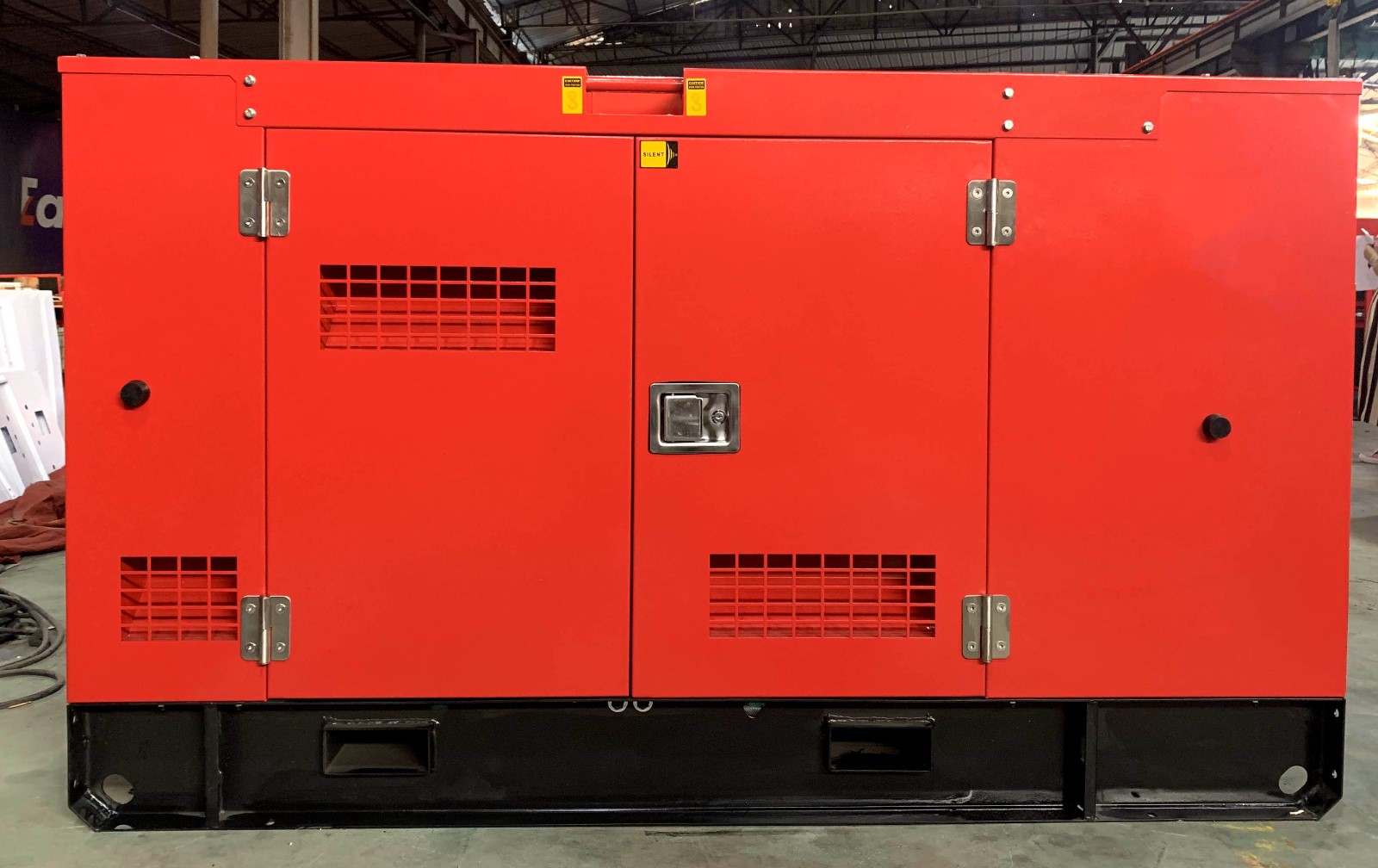

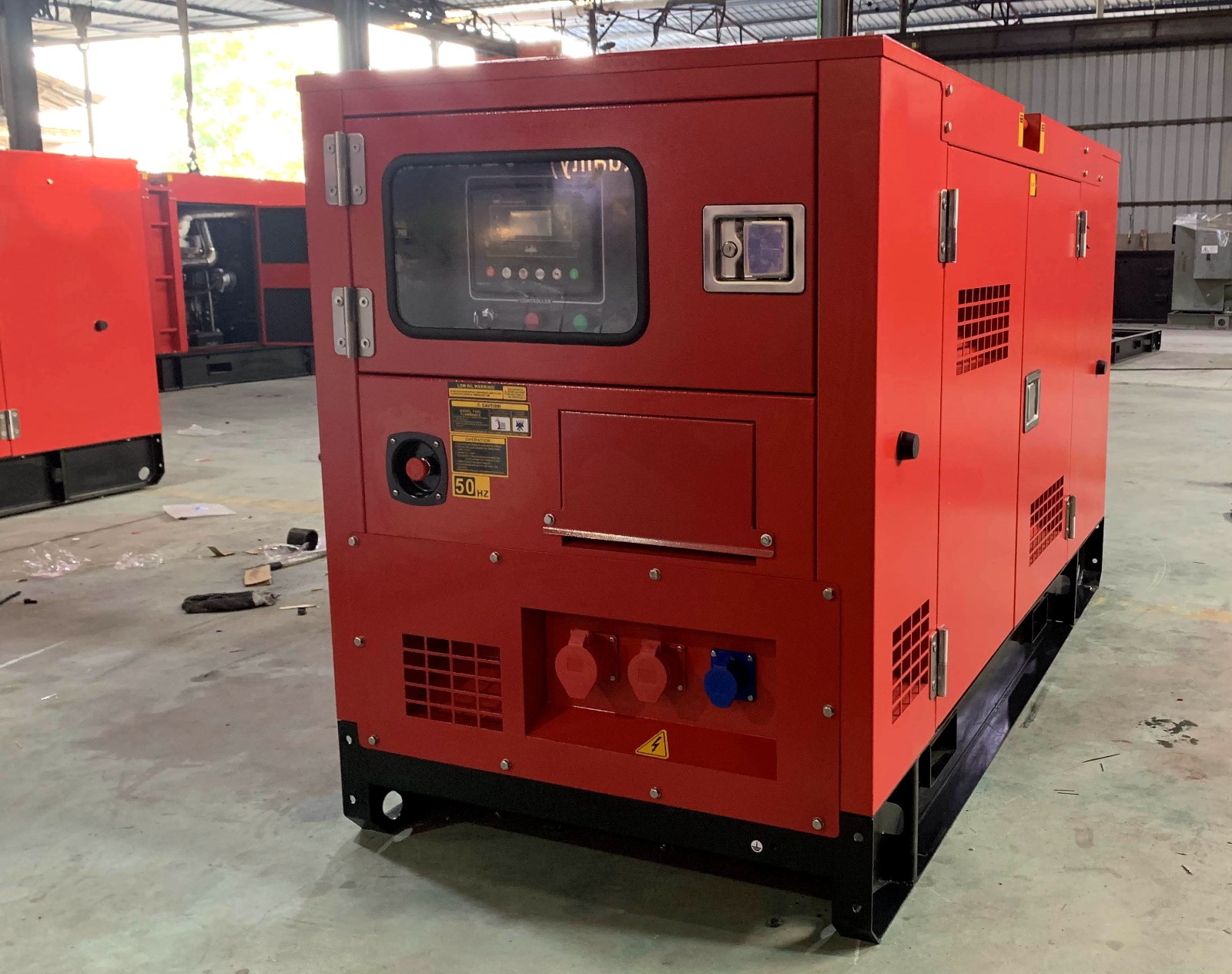

3-Phase 400V Diesel Generator Set
This diesel generator set provides three-phase 400V power. It is designed for reliable and efficient performance in diverse operating conditions.
Technical Specifications
Overview
Reliable Power Generation
This diesel generator set is engineered for robust performance, offering a versatile power range from 6kW to 2000kW to meet diverse industrial and commercial needs. Designed with advanced sound attenuation features, the silent-type configuration ensures minimal noise, making it suitable for noise-sensitive environments. Each unit is built with high-quality components, including a brushless alternator and a heavy-duty steel base frame, ensuring long-term durability and stable power output for both prime and standby applications.

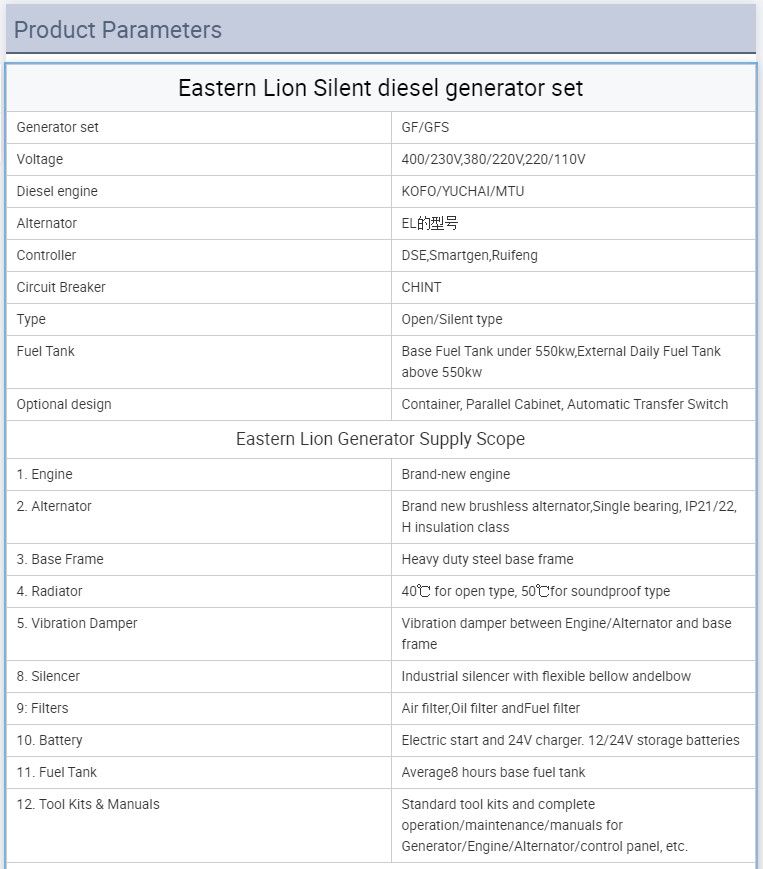

Technical Specifications

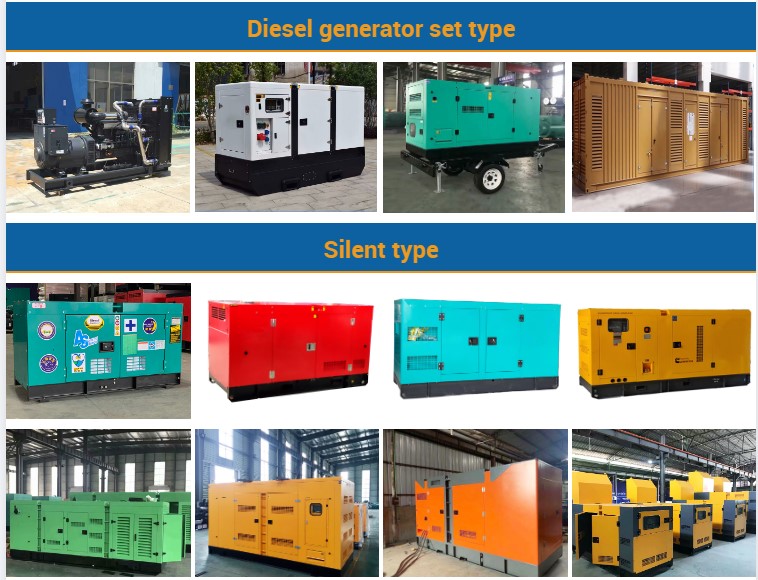

Configuration Types
Open TypeSilent Type
- Power Output Range
- 6kW - 2000kW
- Available Voltages
- 400/230V380/220V220/110V
- Frequency
- 50 Hz
Components & Construction
Alternator Details
- Brushless design
- Single bearing
- H Insulation class
- IP21/22 Protection
Radiator Cooling Capacity
40 °C
Open Type
50 °C
Soundproof Type
Fuel Tank Configuration
| Generator Capacity | Tank Type |
|---|---|
| Under 550kW | Base Fuel Tank |
| Above 550kW | External Daily Fuel Tank |
- Optional Accessories
- ContainerizedParallel CabinetAutomatic Transfer Switch
