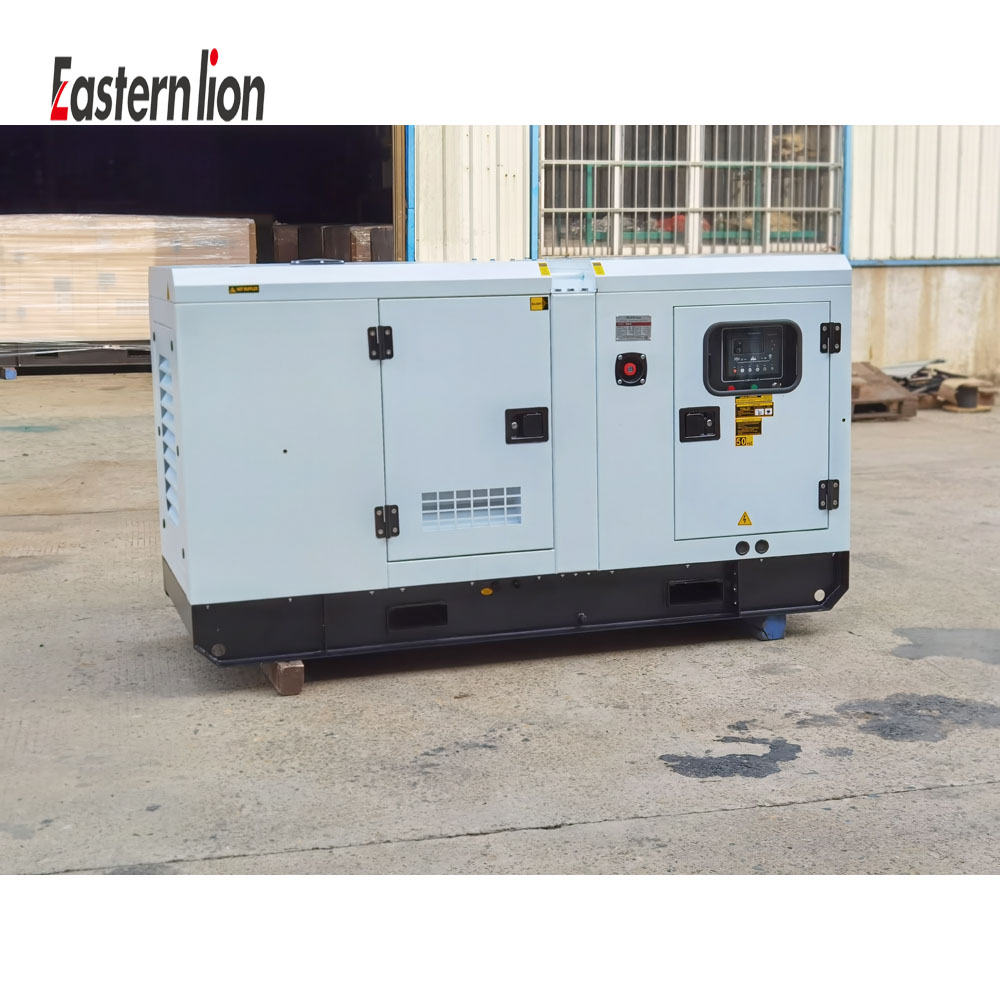

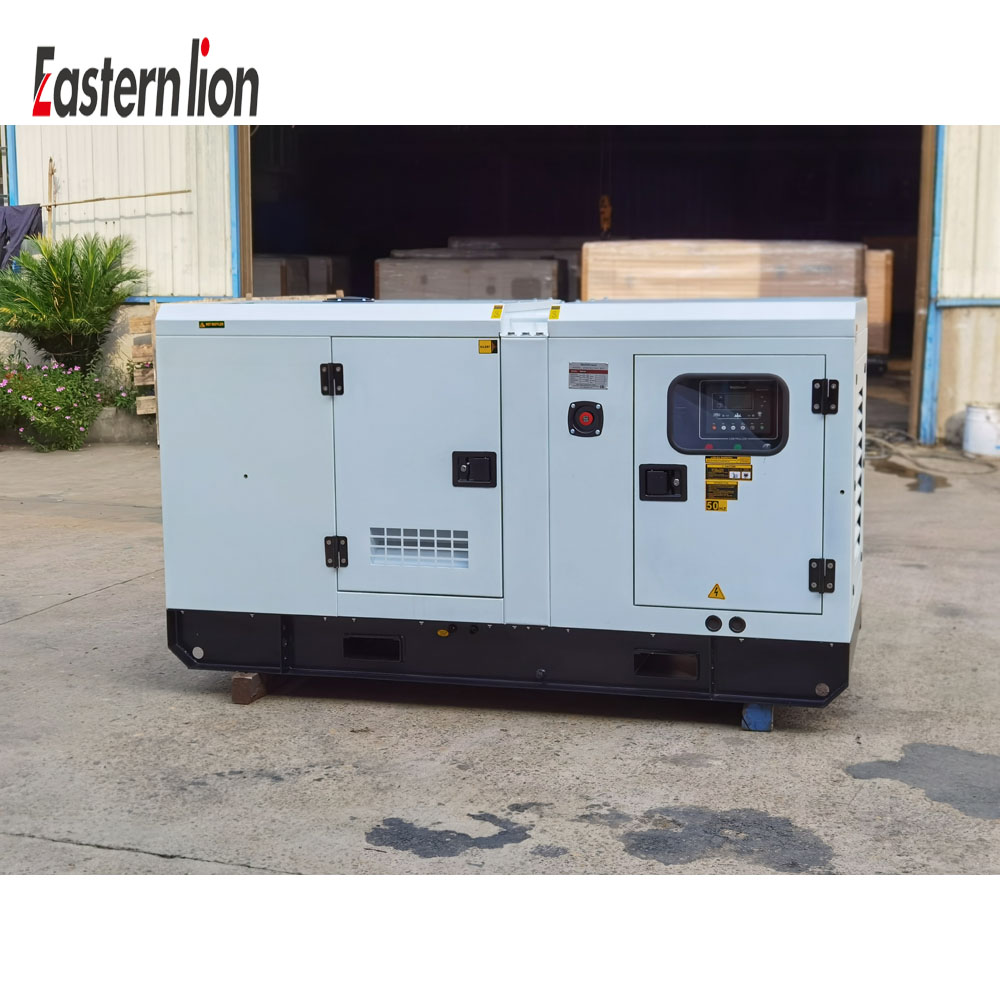

3-Phase 380V Diesel Generator Set
This 3-phase 380V diesel generator set is engineered for reliable power generation in diverse applications. It features a soundproof canopy to minimize noise and a control panel with digital displays for monitoring performance.

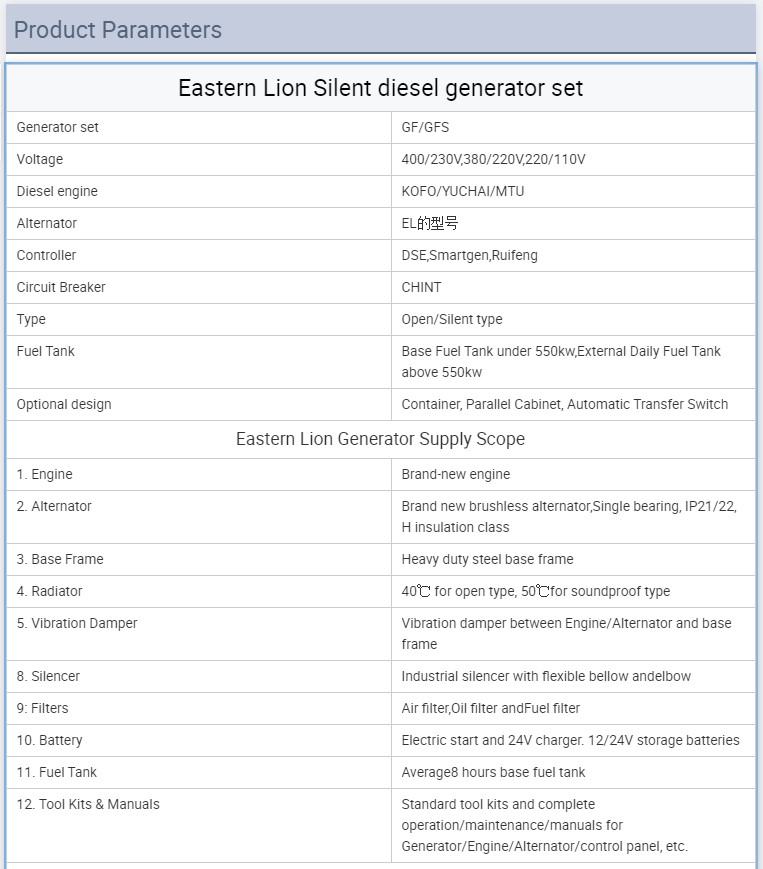

Technical Specifications
Overview
Professional Power Generation
This 3-phase, 380V diesel generator set is engineered for reliability, offering a power range from 6kW to 2000kW. Designed for versatility, it is suitable for industrial, commercial, and residential backup applications. The unit features a robust construction with soundproof canopy options to minimize noise, ensuring efficient and stable operation in demanding environments.
Technical Specifications
Power Range
6 kW
Minimum Power
2,000 kW
Maximum Power
Radiator Capacity
| Type | Temperature Rating |
|---|---|
| Open Type | 40 |
| Soundproof Type | 50 |
- Voltage Options
- 400/230V380/220V220/110V
- Insulation Class
- H
- Protection Rating
- IP21/22
Features & Configuration

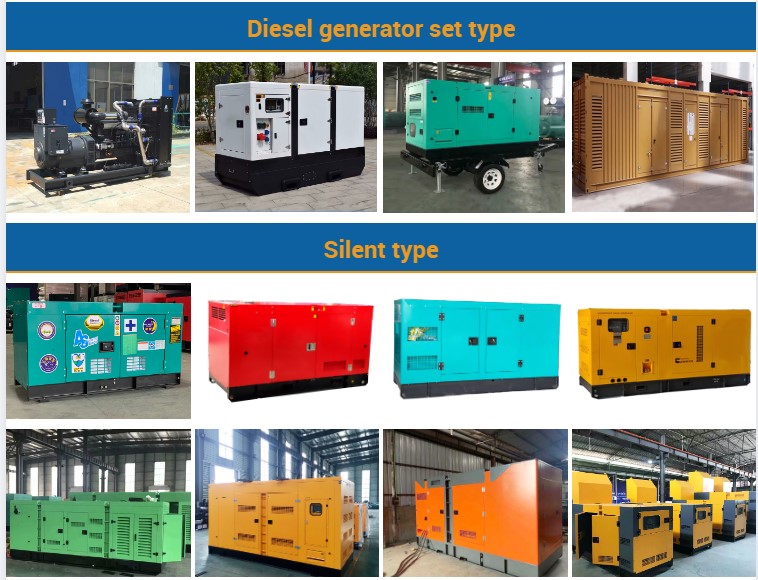

Enclosure Types
Open FrameSilent Canopy
Optional Upgrades
- Containerized Design
- Parallel Cabinet
- Automatic Transfer Switch (ATS)
Fuel System
- Base Fuel Tank (standard for <550kW)
- External Daily Fuel Tank (required for >550kW)
- Average 8-hour runtime
Standard Supply Scope
Included Components
- Brushless Alternator (Single Bearing)
- Heavy-duty steel base frame
- Vibration damping system
- Industrial silencer with flexible bellow
- Air, oil, and fuel filtration system
- 24V charging system with batteries
- Standard tool kit and maintenance manuals
