3-Inch Submersible Deep Well Water Pump
This submersible pump is designed for water supply from wells or reservoirs, and is also suitable for domestic, civil, and industrial applications. It can be used for garden use and irrigation.
Technical Specifications
Overview
High-Efficiency 3-Inch Submersible Deep Well Pump
This 3-inch submersible pump is engineered for reliable water extraction from deep wells and reservoirs, making it ideal for domestic, civil, and industrial applications. Built with a durable 304 stainless steel shaft and 100% copper wiring, it ensures long-term performance and high electrical efficiency even in demanding environments. Its versatile design supports garden irrigation and general water supply with a focus on durability and ease of maintenance.
Key Metrics
Performance Highlights
3 inch
Minimum Well Diameter
1.5 kW
Max Power Output
35 °C
Max Fluid Temp
Technical Specifications
Operating Conditions
- Maximum fluid temperature: +35°C
- Maximum sand content: 0.25%
- pH permissible range: 6.5 - 8.5
- Minimum well diameter: 3"
Motor & Construction
Motor Features
- Rewindable motor filled with food-grade edible oil
- 100% Copper wire winding for longevity
- 304# Stainless steel shaft for corrosion resistance
- PC/POM high-efficiency floating impellers
- Brass or SS304 inlet and outlet options
Electrical Data
- Available Voltages
- Single-phase: 220V-240V / 50HzThree-phase: 380V-415V / 50HzOptional 60Hz available

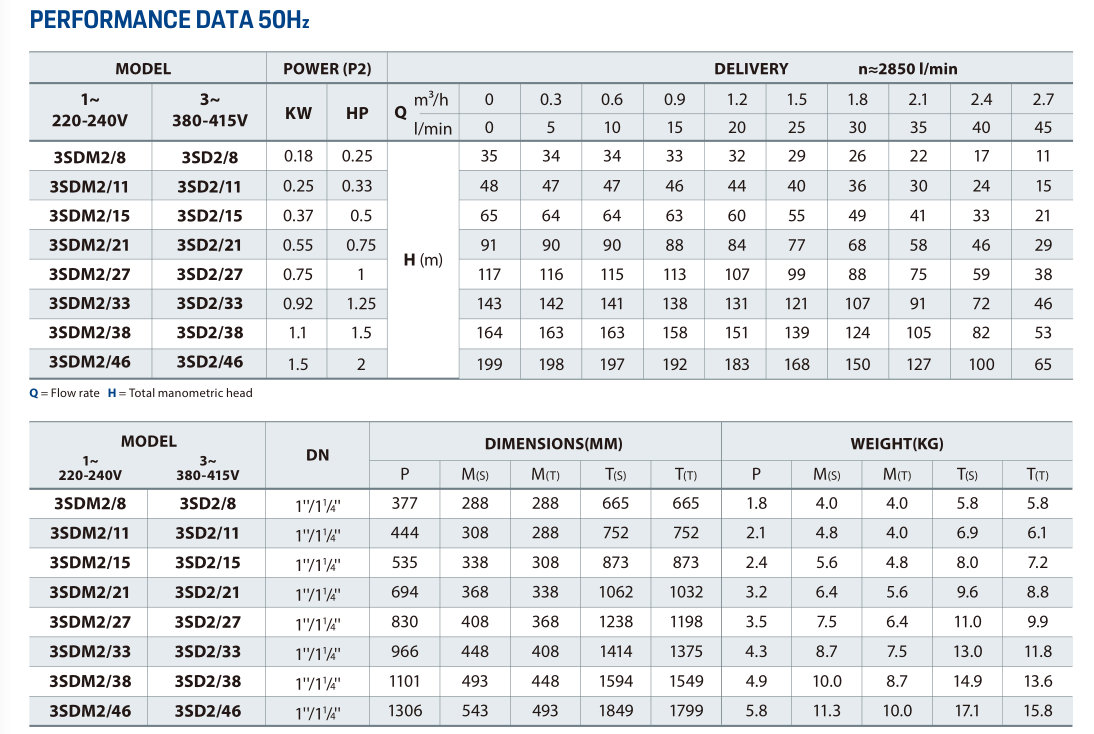

Performance Data
Model Performance Comparison (50Hz)
| Model | Power (kW) | Power (HP) | Max Head (m) | Weight (kg) |
|---|---|---|---|---|
| 3SDM2/8 | 0.18 | 0.25 | 35 | 5.8 |
| 3SDM2/11 | 0.25 | 0.33 | 48 | 6.9 |
| 3SDM2/15 | 0.37 | 0.5 | 65 | 8 |
| 3SDM2/21 | 0.55 | 0.75 | 91 | 9.6 |
| 3SDM2/27 | 0.75 | 1 | 117 | 11 |
| 3SDM2/33 | 0.92 | 1.25 | 143 | 13 |
| 3SDM2/38 | 1.1 | 1.5 | 164 | 14.9 |
| 3SDM2/46 | 1.5 | 2 | 199 | 17.1 |
Compliance & Warranty
Certifications
CEISO9001:2008
- Warranty
- 1 Year (subject to general sales conditions)
Applications
Recommended Use
- Water supply from wells or reservoirs
- Domestic water systems
- Civil and industrial water distribution
- Garden irrigation and agricultural use
