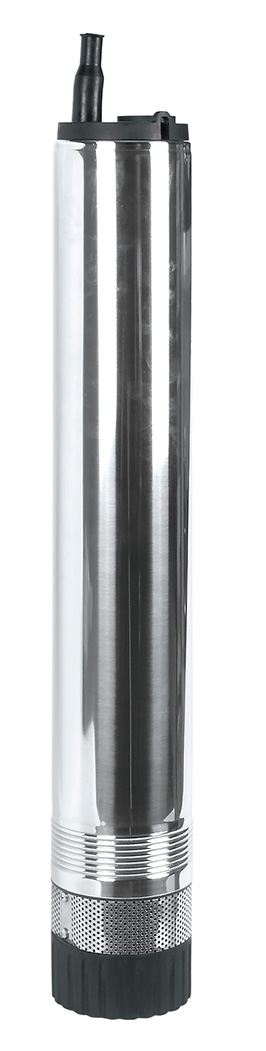

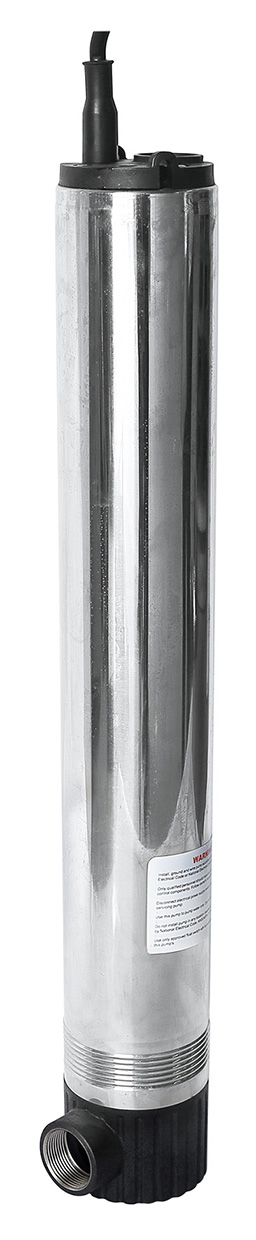

3-Inch Submersible Deep Well Pump
Multistage submersible water pumps are designed for 3-inch deep wells. They are suitable for civilian and industrial purposes, including sprinkler systems, food plants, and fire installations, as well as water supply for wells, reservoirs, garden use, and irrigation.
Technical Specifications
Overview
High-Performance Submersible Pump
This 3-inch submersible borehole pump is engineered for efficient water extraction from narrow wells and boreholes. Constructed from durable, corrosion-resistant stainless steel, it is built to withstand demanding environments while providing reliable performance. It is suitable for a wide range of applications, including domestic water supply, agricultural irrigation, and industrial water systems.
Technical Specifications
Ingress Protection Rating
IP 68
- Power Rating
- 0.6 kW
- Voltage
- 110 V
- Frequency
- 60 Hz
- Maximum Flow Rate
- 46 L/min
Operating Limits
- Max. Liquid Temperature
- 35 ℃
- Min. Well Diameter
- 73 mm
- Max. Immersion Depth
- 60 m
- Max. Sand Content
- 0.15 %
- Duty Cycle
- Continuous duty
Safety and Compliance
Installation Safety Guidelines
- Only qualified personnel should install and service the pump
- Disconnect electrical power supply before installation or servicing
- Use the pump for water only; do not run dry
- Do not install in hazardous locations as classified by NFPA 70-1996
- Ground and wire according to local electrical codes
