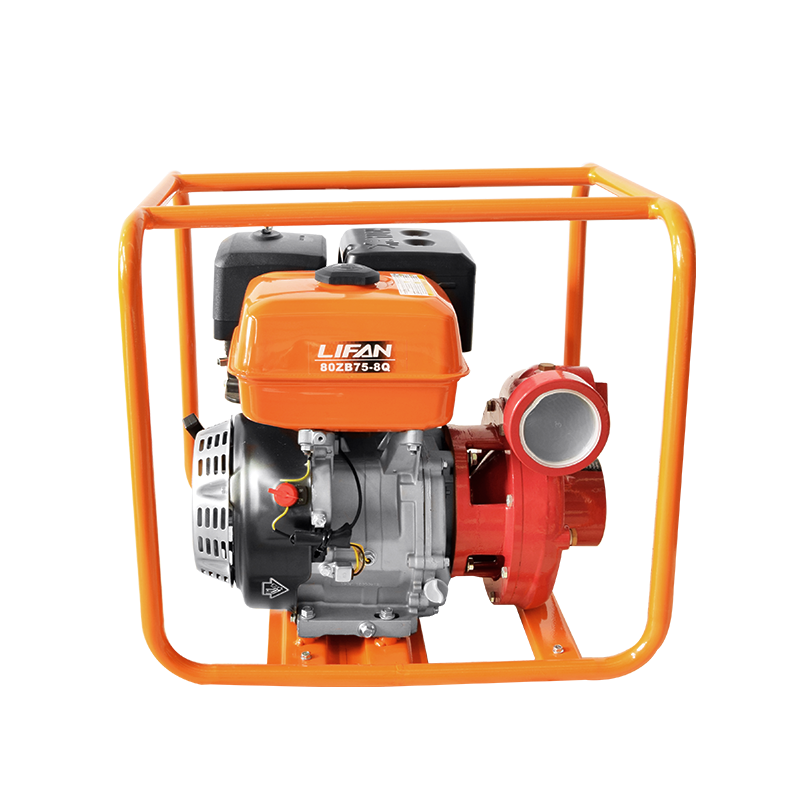

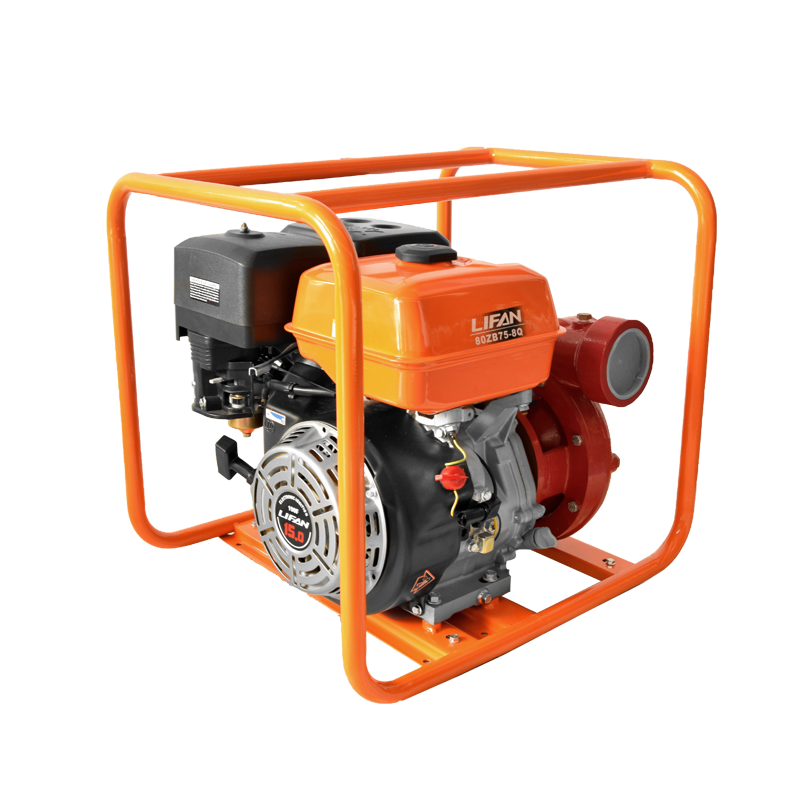

3-Inch Cast Iron Water Pump
This 3-inch cast iron water pump is designed for efficient water transfer. The durable cast iron pump housing ensures longevity and resistance to wear.
Technical Specifications
Overview
Robust 3-Inch Cast Iron Water Pump
This 3-inch cast-iron water pump is engineered for efficient, high-volume water transfer in demanding environments. Designed with a durable cast-iron housing for extended service life, it is an ideal solution for irrigation, construction sites, and emergency water removal. The unit features a reliable engine and a portable frame design, combining heavy-duty performance with ease of transport.
Performance Metrics
Key Performance Indicators
80 mm
Nominal Diameter
48 %
Efficiency
6.5 m
Suction Height
Technical Specifications
- Self-Priming Time
- 180 sec
Logistics & Dimensions
Container Loading Capacity
| Container Type | Quantity |
|---|---|
| 20GP | 144 |
| 40GP | 304 |
| 40HQ | 304 |
- Net Weight
- 50 kg
- Carton Dimensions (L×W×H)
- 605×515×545 mm
Maintenance
Air Cleaner Maintenance Schedule
- Clean air cleaner cover every 50 hours
- Clean paper filter element every 10 hours
- Clean foam filter element every 3 months
- Replace paper filter element every 6 months
