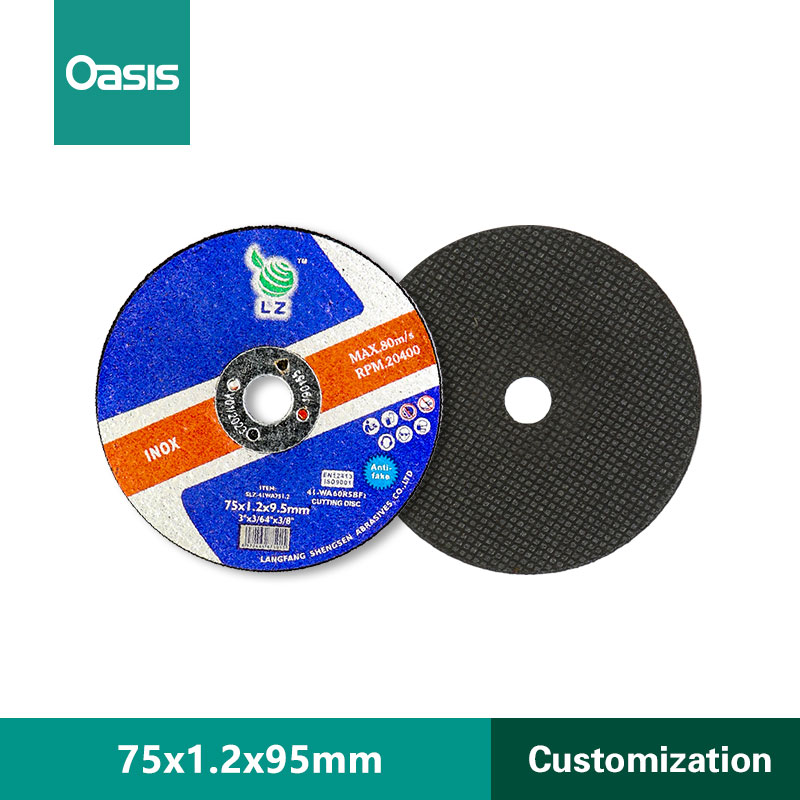

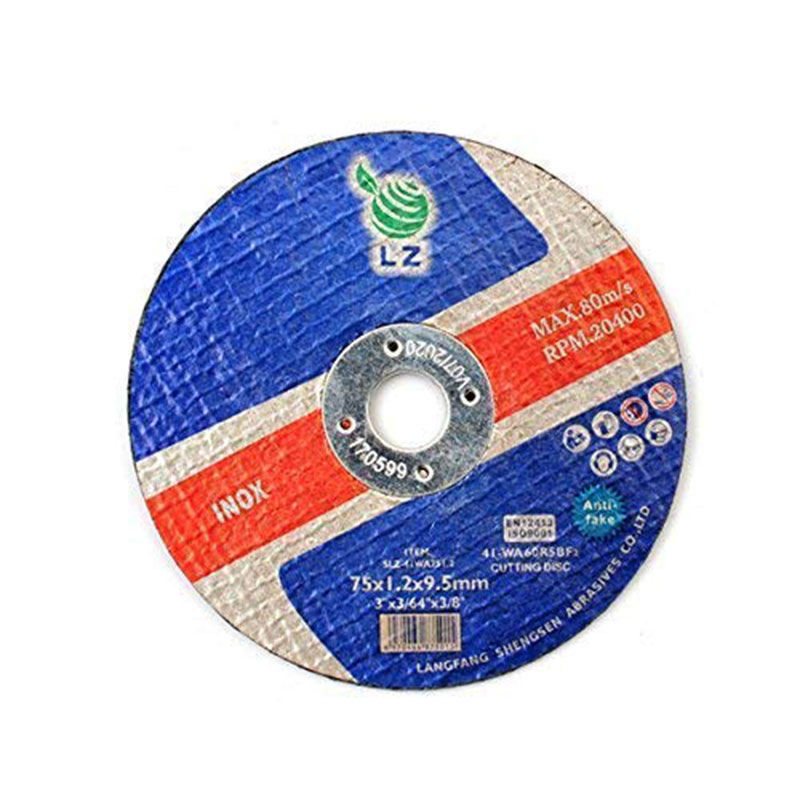

3-Inch Abrasive Cut-Off Wheel for INOX
This 3-inch abrasive cut-off wheel is designed for cutting INOX materials. It has dimensions of 75x1.2x9.5mm and is suitable for high-speed cutting.
Technical Specifications
Overview
High-Performance Cutting Solution
This 3-inch abrasive cut-off wheel is specifically engineered for precision cutting of INOX, stainless steel, and precious metals. Designed for high-speed operation up to 20,400 RPM, it combines safety with exceptional sharpness and durability. The ultra-thin 3/64-inch profile ensures clean cuts with minimal material loss, making it an ideal choice for professional metalworking applications.
Key Capabilities
- High safety rating
- Superior sharpness
- Long-lasting durability
- Anti-fake marking for authenticity
Technical Performance
Operating Limits
20,400 RPM
Max Rotation Speed
80 m/s
Max Linear Speed
- Technical Specification Code
- T41-WA60R5BF
Dimensions
Physical Specifications
| Measurement | Metric (mm) | Imperial (inch) |
|---|---|---|
| Diameter | 75 mm | 3" |
| Thickness | 1.2 mm | 3/64" |
| Arbor Hole | 9.5 mm | 3/8" |
Material & Construction
Abrasive Composition
- White Aluminum Oxide
- Single Aluminum Oxide
- Resin Bonded (BF)
Application
- Compatible Materials
- Stainless Steel (INOX)SteelPrecious Metals
Compliance & Quality
Standards & Certifications
EN12413ISO 9001
