Technical Specifications
Product Overview

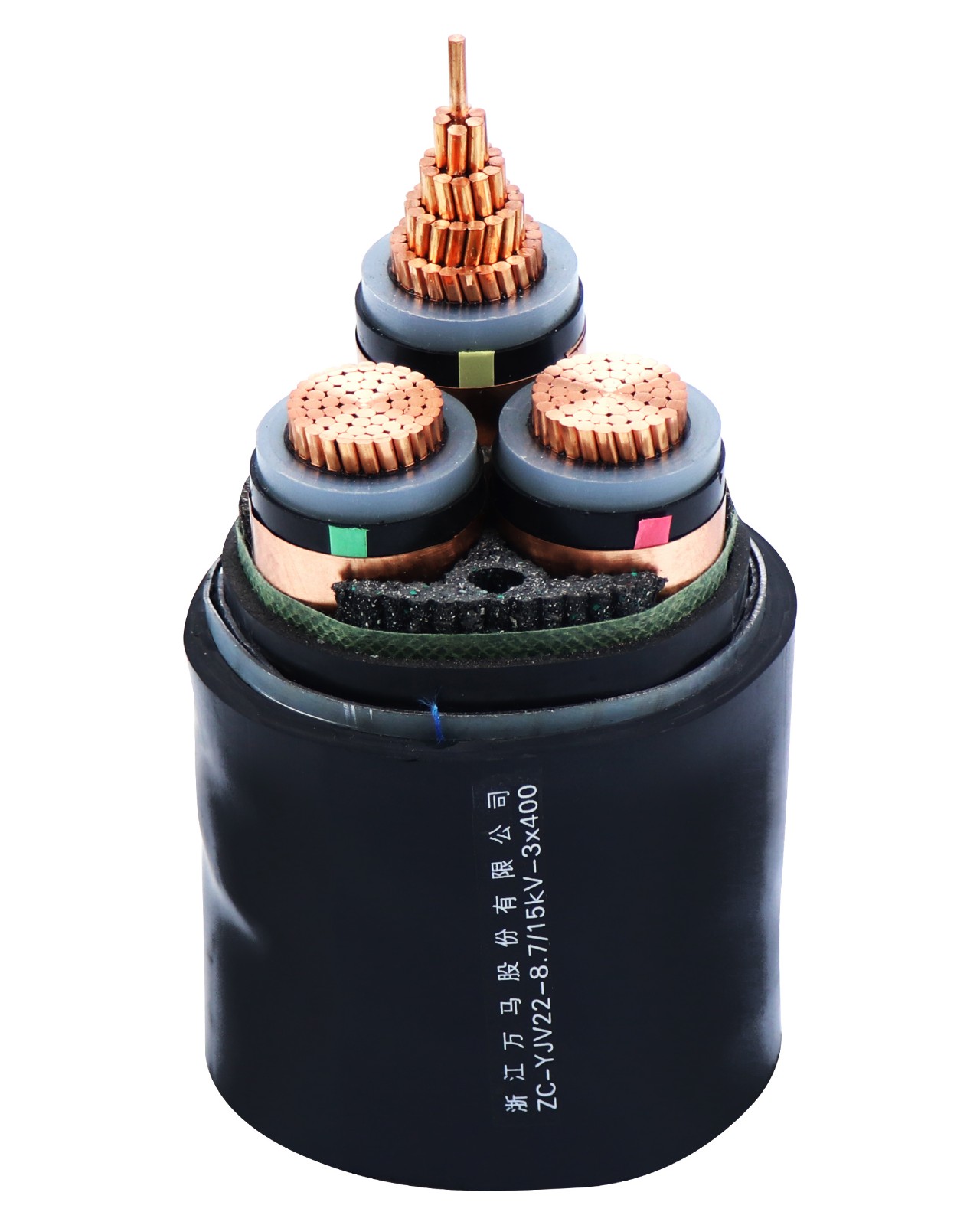

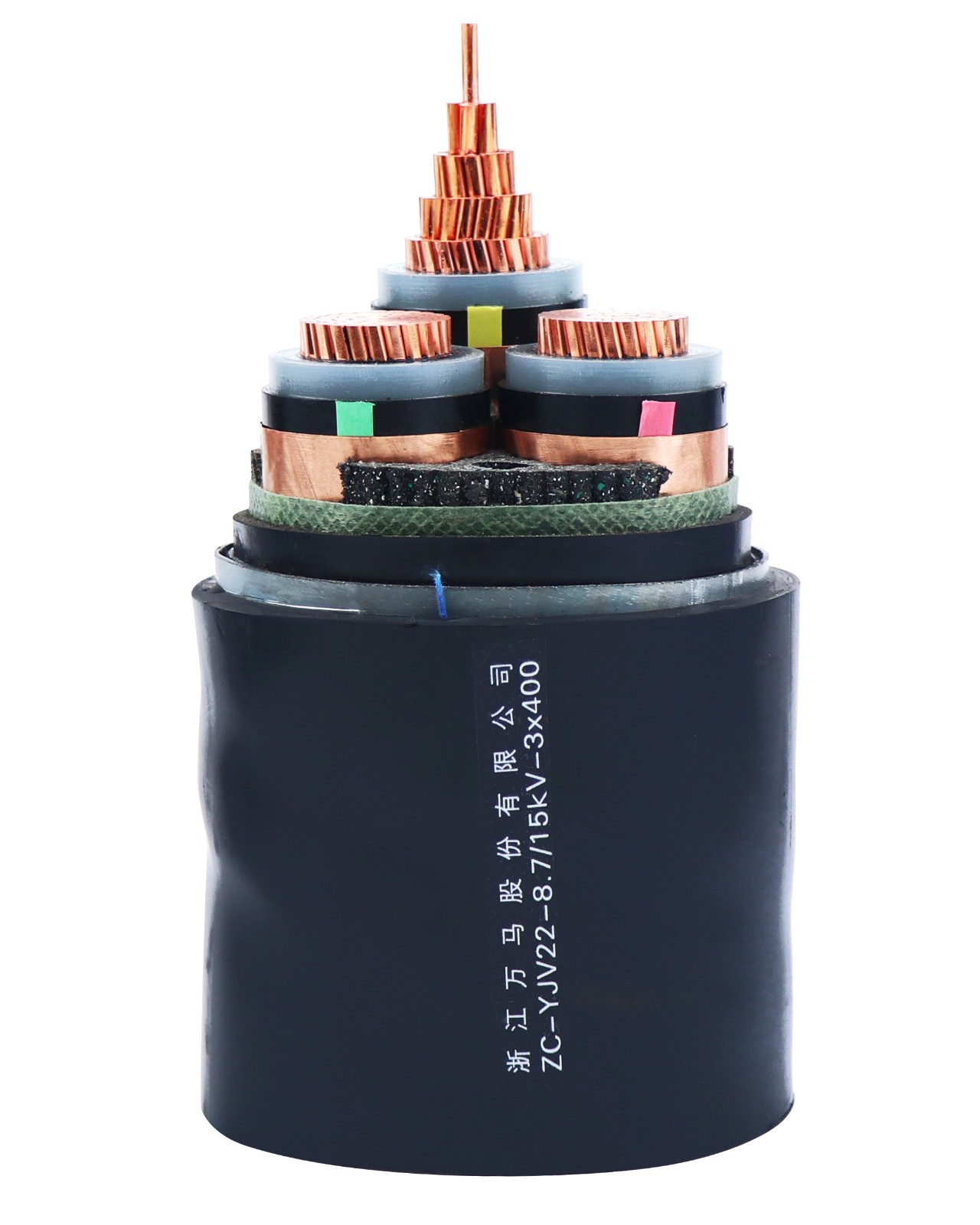

High-Performance Medium Voltage Power Cable
This 3-core armoured power cable is engineered for reliable medium voltage power transmission and distribution. Featuring high-quality annealed copper conductors and XLPE insulation, it ensures excellent electrical performance and thermal stability. The robust construction, including galvanized steel tape armour and a flame-retardant PVC outer sheath, provides superior mechanical protection, making it suitable for demanding environments and direct burial applications.
Technical Specifications
- Cable Code
- ZC-YJV22 (Cu/XLPE/CTS/PVC/STA/PVC-FR C.)
- Rated Voltage (Uo/U)
- 8.7/15KV
- Conductor Material
- Annealed Copper (Cl.2)
- Number of Cores
- 3
- Conductor Cross-section
- 400 mm2
Construction Details
- Insulation
- XLPE (Cross-linked polyethylene)
- Inner Sheath
- PVC (Polyvinyl chloride)
- Metal Screen Shield
- Copper Tape Screen
- Armor
- Galvanized Steel Tape Armor
- Outer Sheath
- Flame Retardant PVC Category C
Operating Limits
Key Temperature Ratings
90 °C
Max Conductor Temp
250 °C
Max Short Circuit Temp
Installation Requirements
- Minimum laying temperature: 0°C
- Bending radius: ≥15D (D=Cable Diameter)
