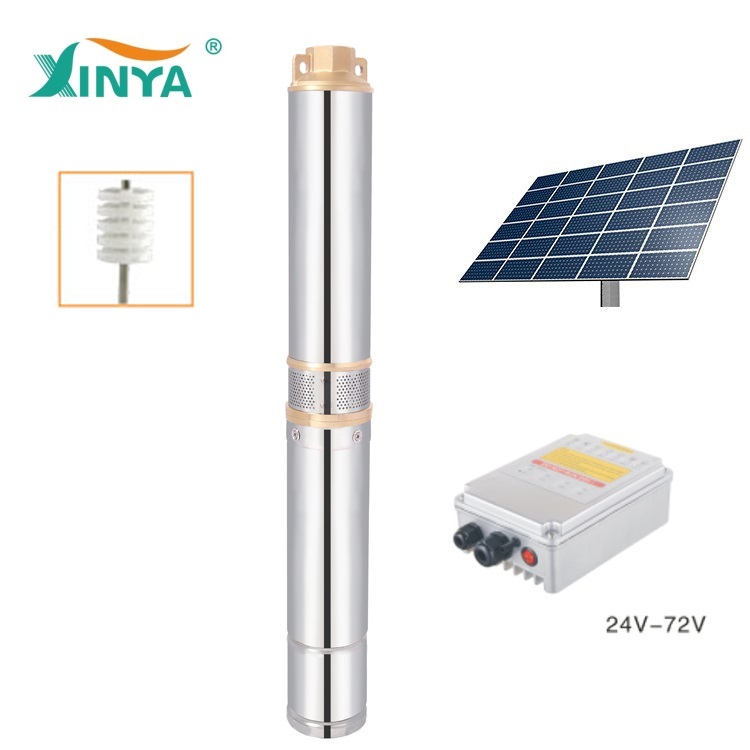

3" 72V DC Solar Submersible Pump with PPO Impeller
This 3-inch submersible pump is designed for solar applications. It features a PPO impeller and operates on a 72V DC power supply.
Technical Specifications
Product Overview
High-Efficiency Solar Submersible Pump

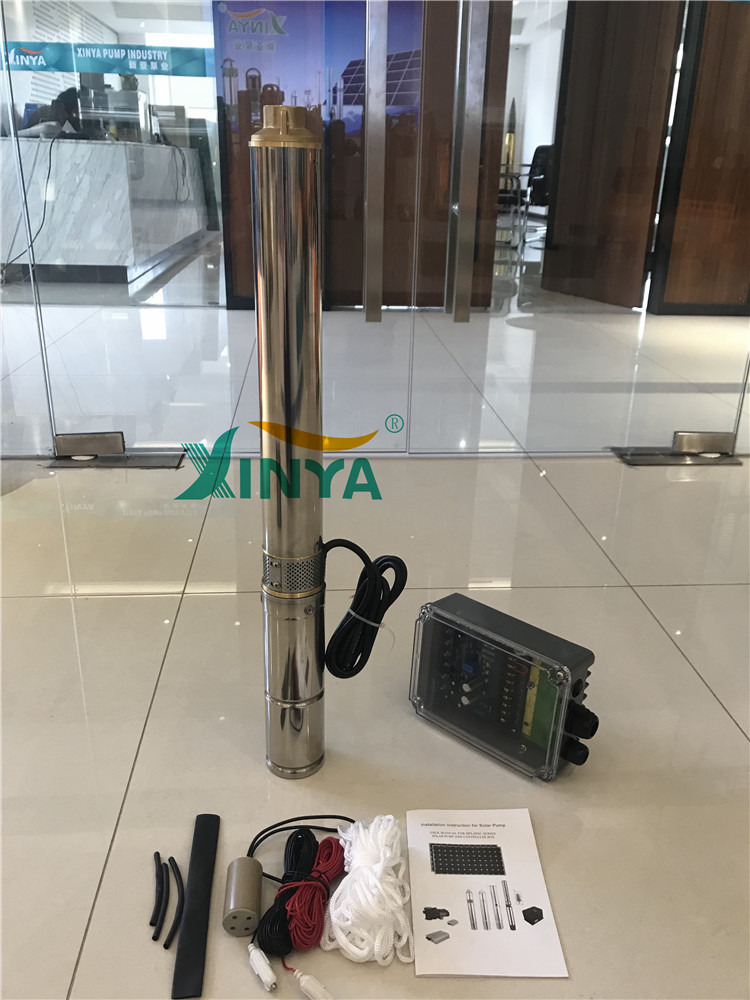

This 3-inch DC submersible pump is engineered for reliable, solar-powered water extraction. Featuring a durable PPO impeller and a robust stainless steel casing, it provides an efficient, pollution-free solution for irrigation, deep well pumping, and fountain applications. The system includes an advanced controller with built-in protection against over-voltage, overload, and waterless operation, ensuring long-term performance with minimal maintenance.
Performance Metrics
Key Performance Indicators
4.5 M3/H
Max Flow Rate
95 M
Max Head
1,000 W
Power
72 V
Voltage
Technical Specifications
Detailed Technical Data
| Feature | Value |
|---|---|
| Model | 3SPC4.5/95-D72/1000 |
| Pump Diameter | 3 inch |
| Outlet Size | 1.25 inch |
| Impeller Material | PPO |
| Weight | 14.5 KG |
| Height | 560 MM |
| MPPT Controller | Included |
Key Features
Main Advantages
- Advanced MPPT controller for optimal solar energy utilization
- Floating-style impeller design to minimize axial motor pressure
- Comprehensive electrical protection (under/over-voltage, overflow, waterless)
- Maintenance-free and quiet operation
- Corrosion-resistant construction suitable for long-term submersion
Certifications
Standards & Compliance
CECCCEMCISO 9001RoHS
