3-13mm Electric Drill Bit Sharpener
This electric drill bit sharpener accurately and rapidly grinds drill bits ranging from 3mm to 13mm. It is equipped with a diamond grinding wheel for precise angles and long service life.
Technical Specifications
Overview
Professional Drill Bit Sharpening
This electric drill bit sharpener offers a fast, accurate, and user-friendly solution for maintaining twist drill bits. Designed to be accessible for operators of all skill levels, it restores cutting edges in approximately 10 seconds, significantly extending the lifespan of your tooling. Its compact, portable design and robust DC motor make it an essential tool for workshops, maintenance departments, and industrial applications requiring consistent drilling performance.
Technical Specifications
Performance Metrics
4,400 RPM
Rotation Speed
120 W
Motor Power
10 kg
Weight
Machine Specifications
| Feature | Specification |
|---|---|
| Grinding Range | 3 - 13 mm |
| Point Angle | 100° - 135° |
| Voltage | AC 220V |
| Grinding Wheel Material | CBN or SDC |
| Dimensions | 310 x 170 x 180 mm |
Features & Benefits
Key Features
- Rapid sharpening process (approx. 10 seconds per bit)
- Easy operation requiring no advanced grinding skills
- Precision-controlled DC motor for stable frequency and high power
- Adjustable point size to match material and speed requirements
- Compact and portable design for on-site or workshop use

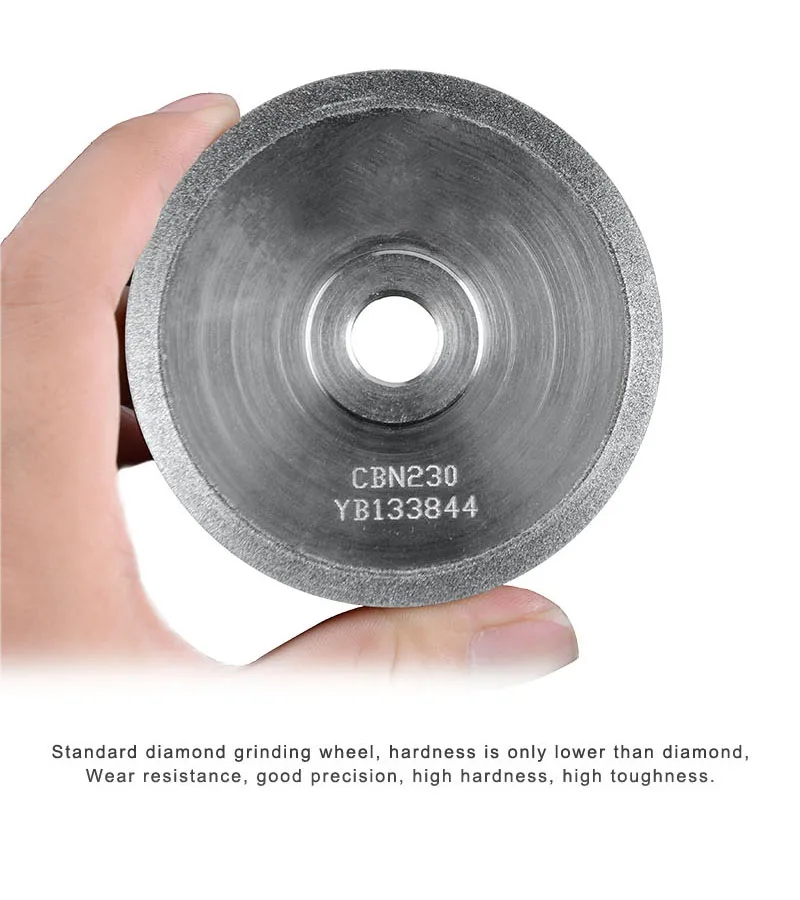

- Durable diamond grinding wheel construction
- Standard Accessories

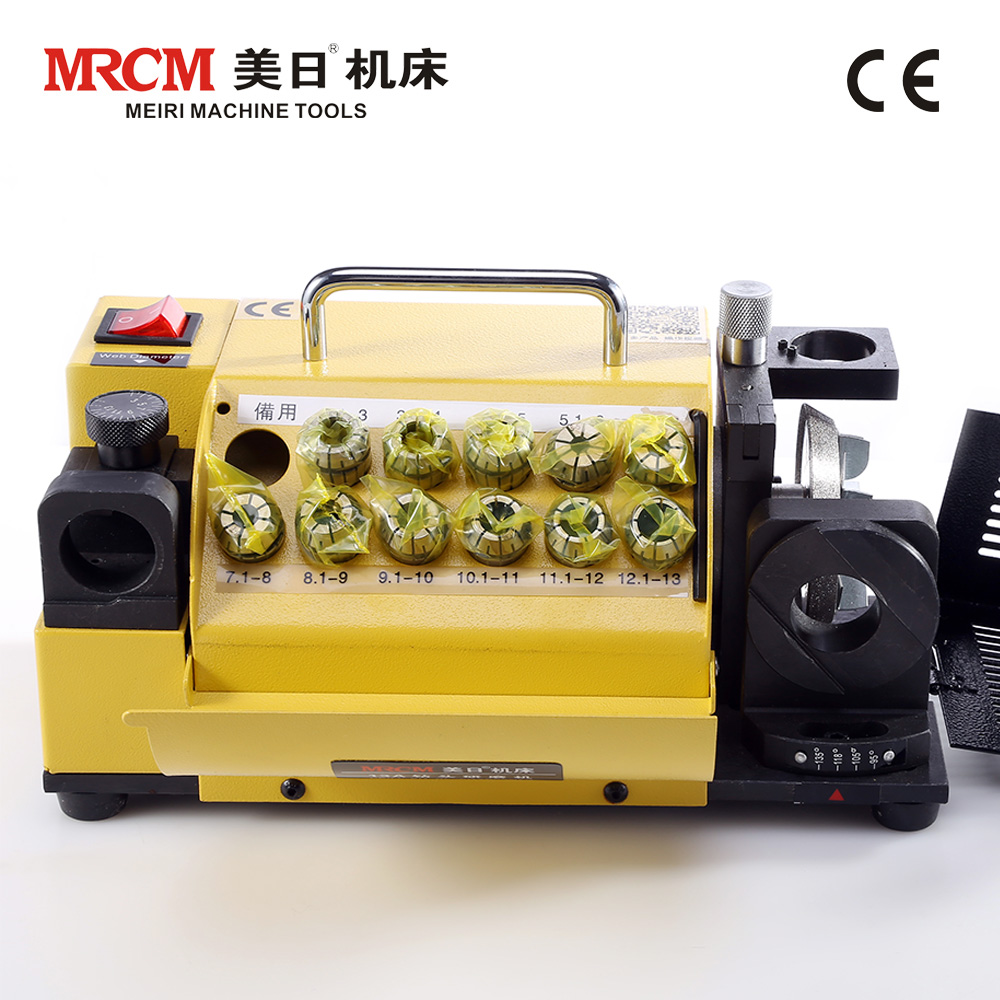

- ER High Elastic ColletsDiamond Grinding Wheel13-Type 2-Blade Chuck SetAllen WrenchUser Guide
