Technical Specifications
Overview
Precision Drill Bit Sharpening

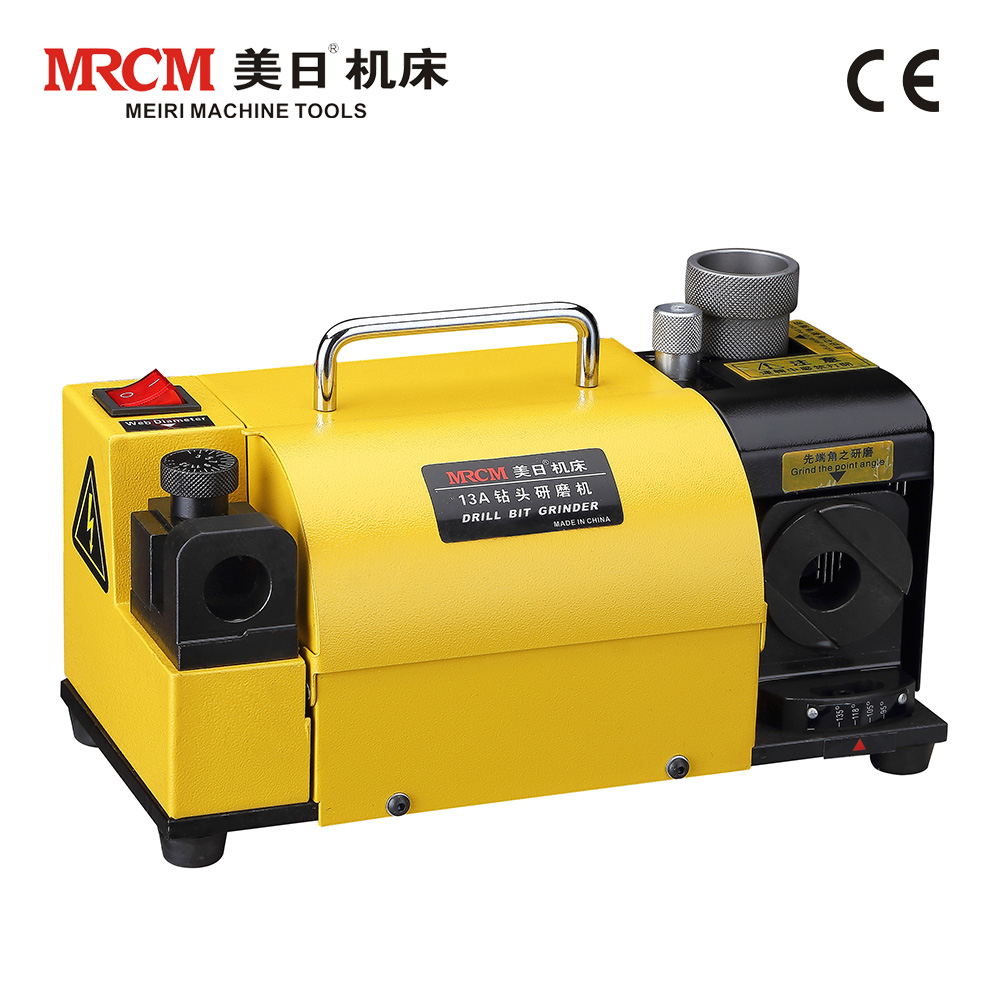

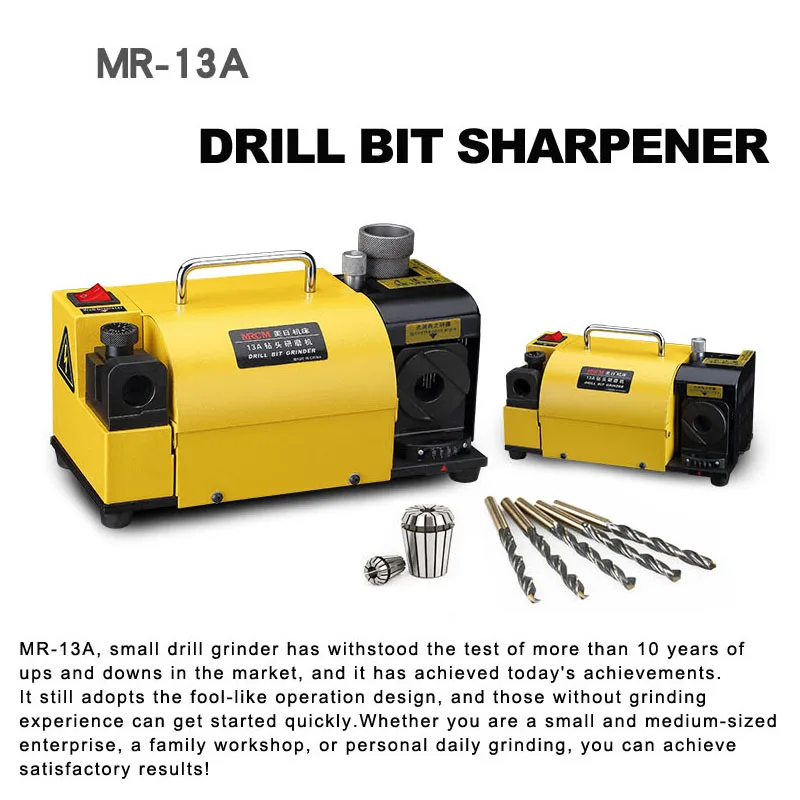

This industrial-grade drill bit grinding machine is engineered for rapid and accurate sharpening of twist drills ranging from 3mm to 13mm. Designed with user-friendly operation in mind, it allows operators to restore drill bits to optimal condition in approximately 10 seconds without requiring advanced grinding skills. The unit features a powerful DC motor and adjustable point angle settings, ensuring consistent, high-quality results that extend tool life and improve drilling efficiency in any workshop or manufacturing environment.
Technical Specifications
- Grinding Range
- 13 mm
- Point Angle
- 100-135°
- Motor Power
- 120 W
- Operating Speed
- 4400 RPM
- Weight
- 10 kg
- Dimensions
- 310 x 170 x 180 mm
Performance & Features
Compatible Wheels
CBNSDC
- Key Features
- Rapid SharpeningEasy OperationAdjustable Point AngleDiamond Grinding WheelCompact Design
Included Accessories

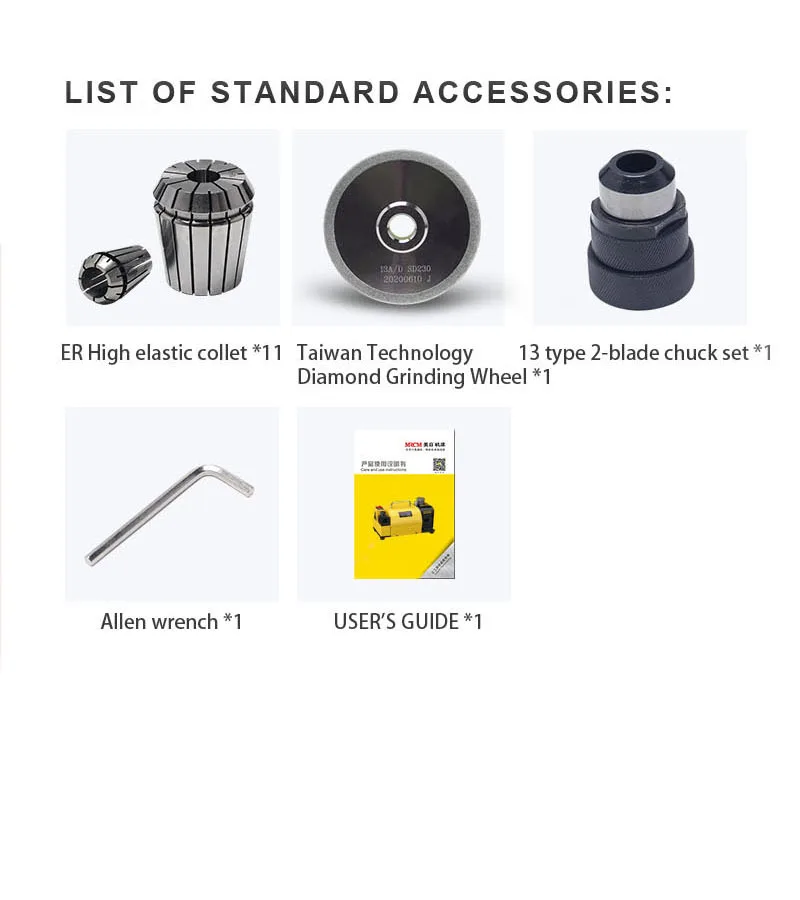

Standard Accessories

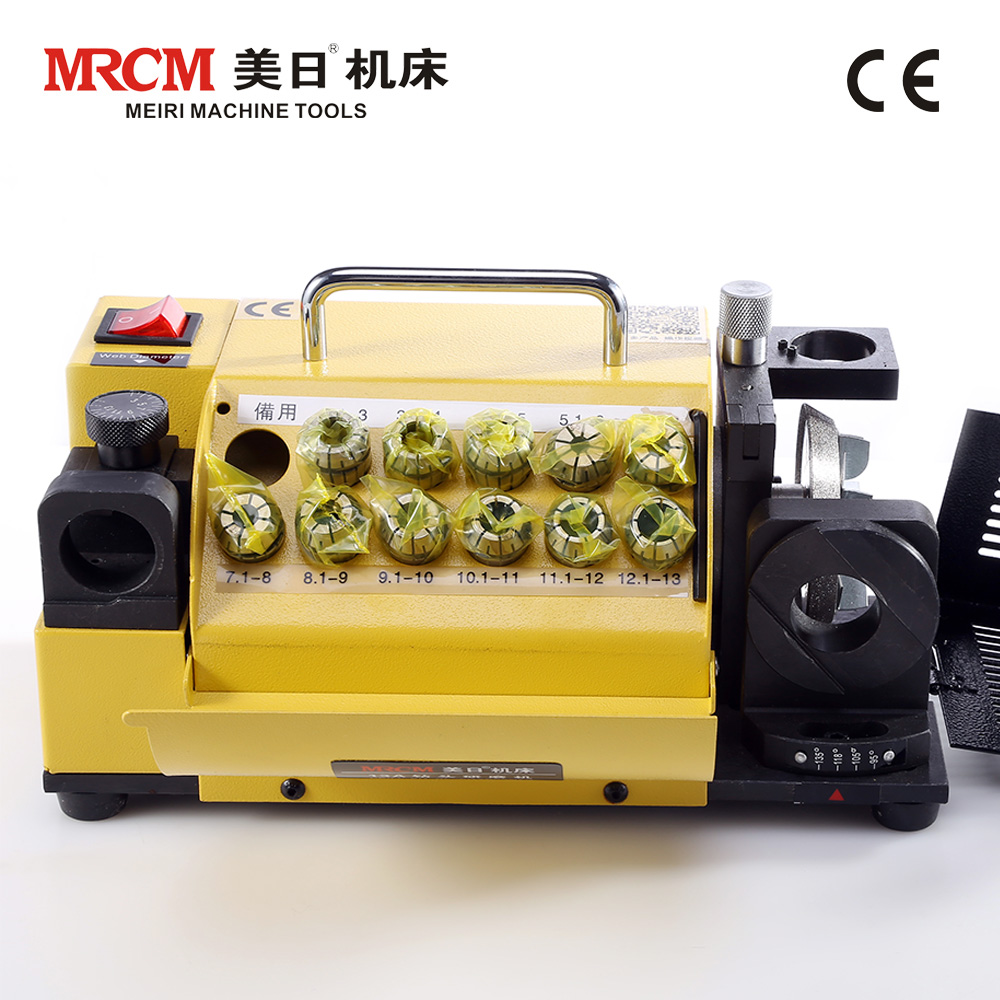

- 11 x ER High Elastic Collets
- 1 x Diamond Grinding Wheel
- 1 x 13-Type 2-Blade Chuck Set
- 1 x Allen Wrench
- 1 x User Guide
