Technical Specifications
Overview

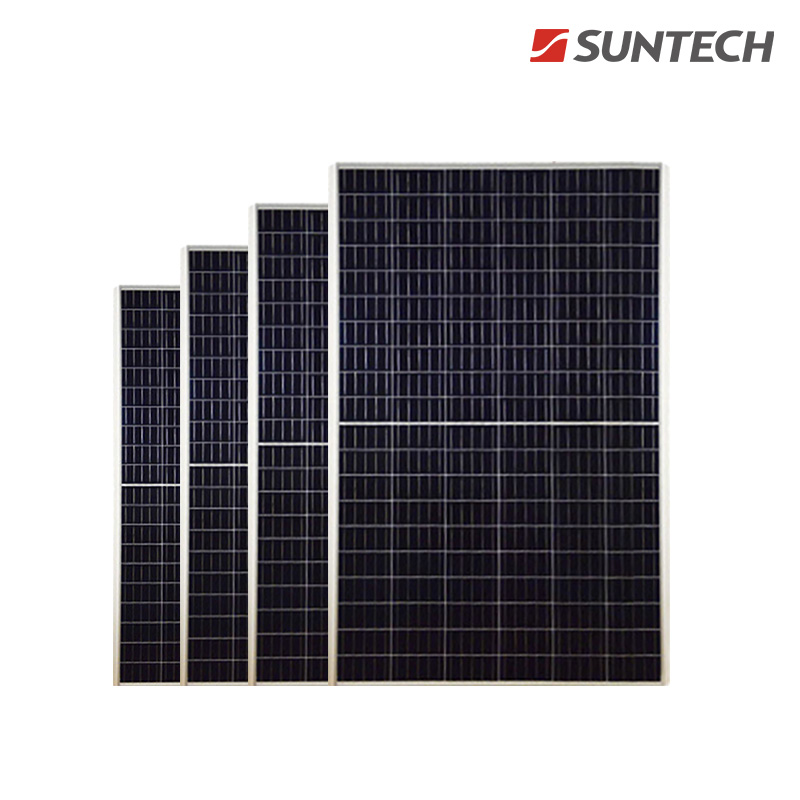

High-Efficiency Solar Power for Home Use
These polycrystalline solar modules offer a reliable and sustainable solution for residential energy needs. Designed to maximize energy production even in weak light conditions, such as haze or cloudy weather, these panels ensure consistent performance. With a robust build capable of withstanding harsh environmental conditions, these modules are an ideal choice for grid-tied and off-grid residential solar systems.
Electrical Performance
Featured Performance Metrics
295 W
Maximum Power (Pmax)
32.5 V
Optimum Operating Voltage
9.08 A
Optimum Operating Current
17.5 %
Module Efficiency
STC Electrical Data
| Parameter | Value |
|---|---|
| Open Circuit Voltage (Voc) | 39.2 V |
| Short Circuit Current (Isc) | 9.55 A |
| Power Tolerance | 0/+5 W |
| Max System Voltage | 1000/1500 V DC |
Mechanical Characteristics
Mechanical Specifications
- Dimensions: 1684 x 1002 x 35 mm
- Weight: 19.0 kg
- Cell Type: Polycrystalline silicon 6 inches
- No. of Cells: 120 (6 x 20)
- Front Glass: 3.2 mm tempered glass
- Frame Material: Anodized aluminium alloy
- Junction Box Rating: IP68 (3 bypass diodes)
Quality and Compliance
- International Certifications
- ISO 9001ISO 14001IEC 61215IEC 61730CETUV NORD
