29.2V 30A LiFePO4 Battery Charger
This charger is designed for charging 8-series LiFePO4 battery packs, providing a constant voltage of 29.2V and a maximum charging current of 30A. It is suitable for applications including electric vehicles, energy storage systems, and portable power devices.
Technical Specifications
Overview
High-Performance LiFePO4 Charging Solution

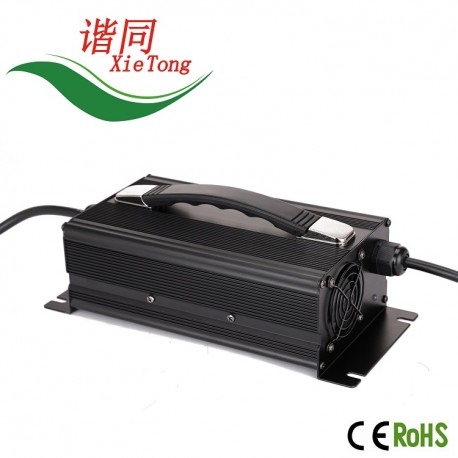

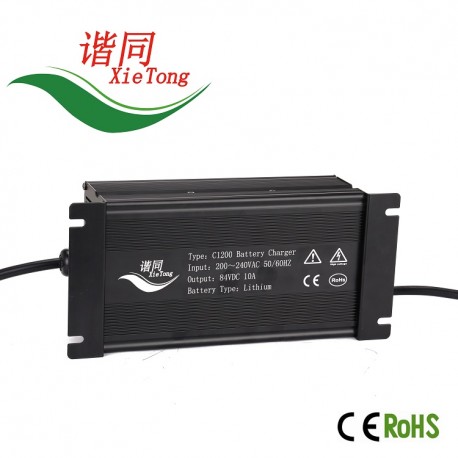

The C1200 series charger is engineered specifically for 8S LiFePO4 battery packs, delivering a robust 876W of power. Housed in a durable aluminium alloy shell, this charger provides efficient thermal management and reliable performance for demanding applications. It is a versatile choice for electric vehicles, golf carts, and various industrial equipment requiring consistent and safe charging.
Electrical Specifications
Performance Metrics
8 S
Cells in Series
30 A
Max Current
- Output Power
- 876 W
- Output Voltage
- 29.2 V
- Output Current
- 30 A
- Input Voltage Range
- 110-132VAC200-264VAC
Physical & Build
- Dimensions
- 264 x 120 x 89 mm
- Net Weight
- 2.1 kg
- Shell Material
- Aluminium Alloy
Compliance & Support
Certifications
CE
- Warranty Period
- 12 Months
Applications
Supported Applications
- Electric Bike
- Electric Motorcycle
- Electric Scooter
- Cleaning Equipment
- Electric Vehicles
- Golf Cart
