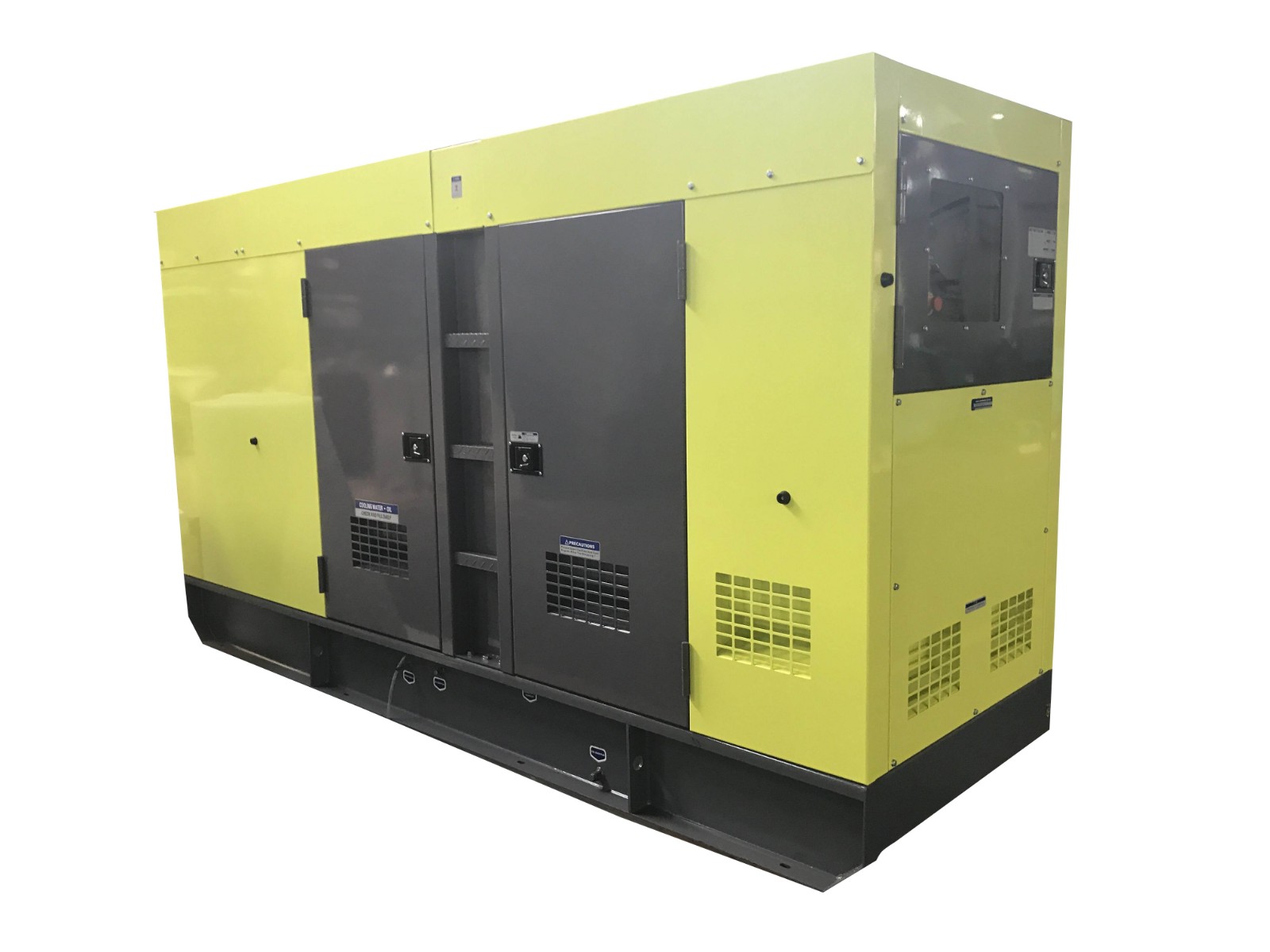

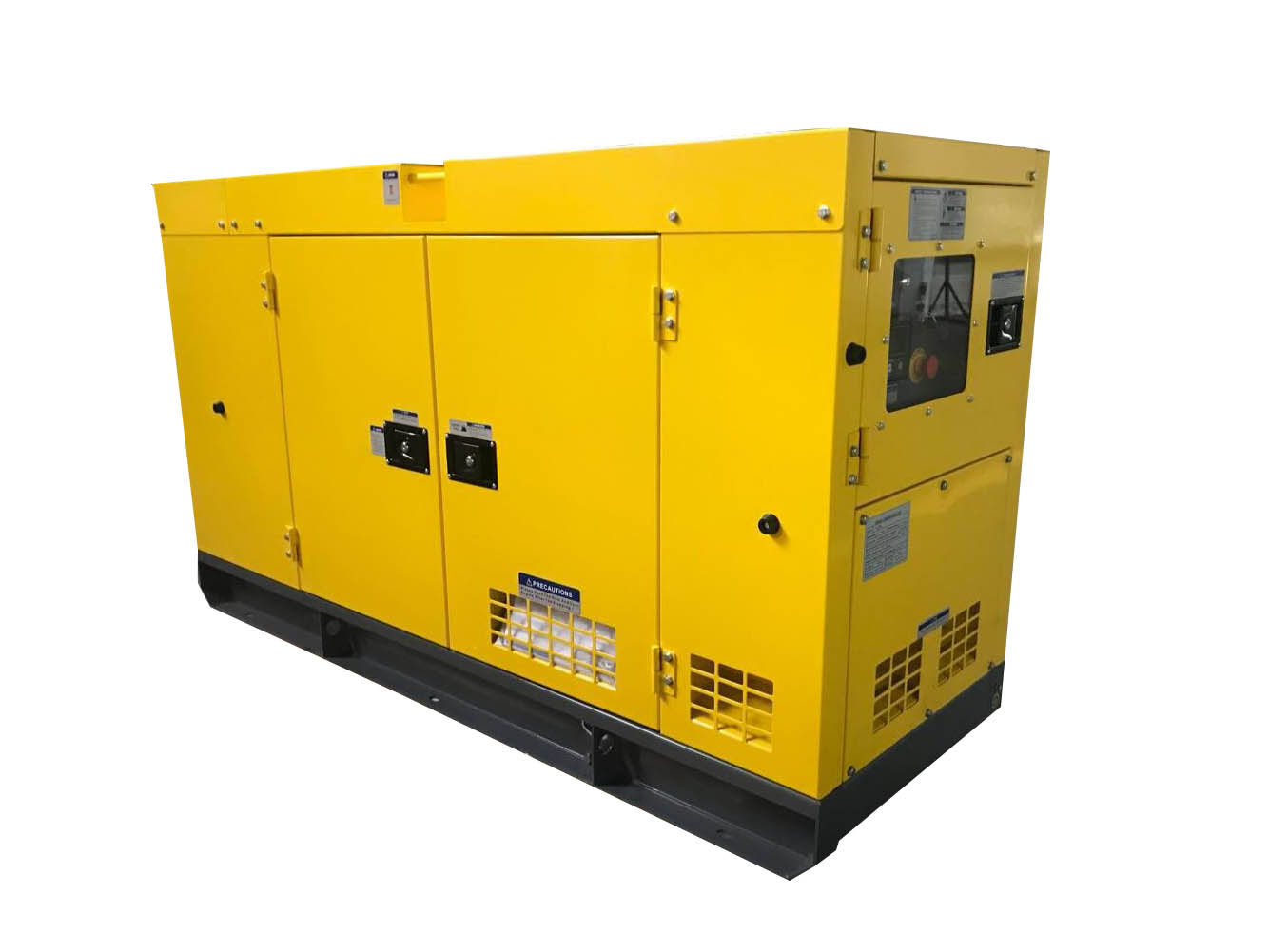

28kVA 22kW 50Hz Diesel Generator Set
This diesel generator set delivers a reliable 50Hz power solution with an output of 28kVA (22kW). It features a durable enclosure for noise reduction and weather protection.
Technical Specifications
Overview
Reliable 28kVA Diesel Power Solution
This 28kVA (22kW) diesel generator set is engineered for high torque and easy maintenance, providing a robust power source for both prime and standby applications. Featuring a corrosion-resistant cabinet made of high-quality sheet metal, it offers excellent waterproof and dust-proof protection for operation in harsh environments. The unit is designed for easy transportation via crane or forklift and includes an integrated fuel tank providing over 8 hours of continuous operation.
Key Performance Metrics
Performance Highlights
Engine Specifications
- Engine Configuration
- 4-cylinder in-line, 4-stroke
- Displacement
- 3.9 L
- Bore / Stroke
- 102mm / 120mm
- Cooling Method
- Water-cooled
- Governing Type
- Electronic
Alternator & Electrical
Alternator Features
- 100% Copper Windings
- AS480 AVR Model
- Voltage Regulation ±1.0%
- Insulation Class H
- IP23 Protection Rating
- Single Bearing
Construction & Design
- Design Features
- Soundproof CanopyCorrosion-ResistantHigh WaterproofDust-proofForklift/Crane Slots
Operational Limits
- Operating Temperature Range
- -15°C to 50°C
Quality & Testing
Rigorous Load Testing
Every unit undergoes a comprehensive 1-hour test before delivery, covering 25%, 50%, 75%, 100%, and 110% load levels. Testing parameters include soundproof levels, frequency and voltage control, oil/fuel/water systems, and all safety protection functions.
Compliance & Certifications
Applications
Ideal For
- Hotels & Hospitality
- Medical Facilities & ICUs
- Data Centers & Banking
- Municipal Construction
- Telecommunications Infrastructure
- Factory Standby Power
Project References
Global Installation Examples
| Region | Application | Configuration |
|---|---|---|
| Morocco | Power Plant | 6.6kv High Voltage Units |
| Oman | Power Plant | 11kv High Voltage Units |
| Canada | Mining | 10.5KV Synchronized Sets |
| Syria | Oil Field | 1250kw/1000kw Units |
