280W Polycrystalline Solar Panel
This 280W polycrystalline solar panel ensures reliable power output. It features a durable construction designed for efficient energy conversion in various solar power systems.
Technical Specifications
Product Overview
High-Efficiency 280W Polycrystalline Solution
This 280W polycrystalline solar panel is engineered for reliable energy conversion in residential, commercial, and industrial applications. Featuring 60 high-efficiency cells and a robust anodized aluminum frame, it is designed to withstand significant environmental stress including high wind and snow loads. With a comprehensive 30-year linear power output warranty, it provides a long-term sustainable energy solution for professional installers and project developers.
Performance Metrics
Key Performance Indicators
280 W
Peak Power
17.1 %
Module Efficiency
31.94 V
Max Power Voltage
8.77 A
Max Power Current
Electrical Specifications
Standard Test Conditions (STC)
| Parameter | Value |
|---|---|
| Open Circuit Voltage (Voc) | 39.13V |
| Short Circuit Current (Isc) | 9.23A |
| Cell Efficiency | 18.99% |
| Irradiance | 1000 W/m² |
| Cell Temperature | 25°C |

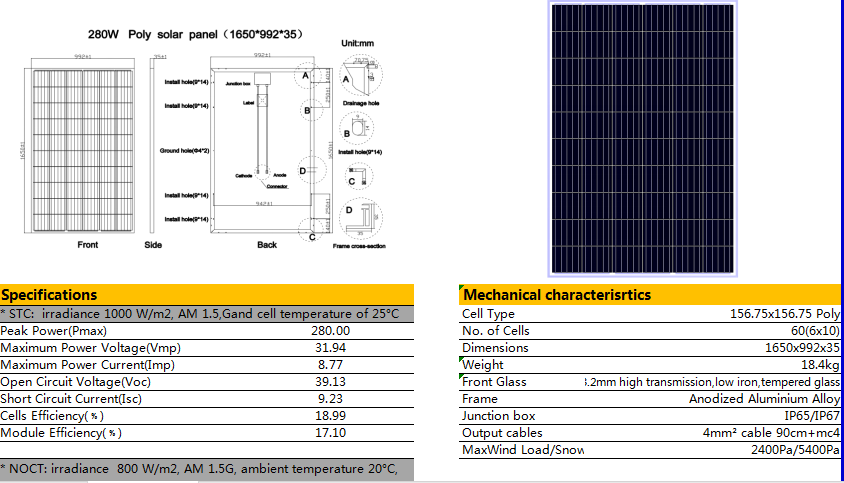

Mechanical Characteristics
Physical Construction
- Cell Type: 156.75x156.75mm Polycrystalline
- Cell Configuration: 60 (6x10) cells
- Front Glass: 1.2mm high transmission, low iron, tempered glass
- Frame: Anodized Aluminium Alloy
- Output Cables: 4mm² cable, 90cm length
- Connector Type: MC4 compatible
Physical Dimensions
Size & Weight
| Dimension | Measurement |
|---|---|
| Length | 1650 mm |
| Width | 992 mm |
| Thickness | 35 mm |
| Weight | 18.4 kg |
Durability & Protection
Environmental Ratings
IP65/IP67 Junction Box5400Pa Snow Load2400Pa Wind Load
Warranty
Service Life Guarantee
- 12 Years Guarantee on product material and workmanship
- 30 Years Linear Power output warranty
