28-Ton Heavy-Duty Diesel Forklift for Container Handling
This heavy-duty 28-ton diesel forklift is designed for lifting and transporting containers. It features a robust chassis and a powerful diesel engine for reliable performance.
Technical Specifications
Product Overview
High-Performance 28-Ton Container Handler
This heavy-duty diesel forklift is specifically engineered for demanding container handling and industrial lifting tasks. It features a high-quality turbocharged engine for superior power performance and energy conservation, paired with a full-hydraulic steering system for flexible operation. The robust box-type frame and reinforced mast structure ensure exceptional stability and reliability during heavy-load cycles in ports and logistics hubs.
Core Performance
Key Performance Metrics
28 t
Rated Load
1,250 mm
Load Center
5,700 mm
Max Lifting Height
39,000 kg
Service Weight
Engine & Powertrain
Engine Specifications
| Configuration | Displacement | Power Output | Rated Speed |
|---|---|---|---|
| Standard Turbocharged | 9.726 L | 178 kW | 2200 rpm |
| High-Output Option | 8.3 L | 194 kW | 2200 rpm |
- Number of Cylinders
- 6
- Transmission Gears (Fwd/Rev)
- 2 / 1
Operational Dimensions
Physical Dimensions
| Dimension Type | Measurement |
|---|---|
| Overall Length (with forks) | 9590 mm |
| Overall Width | 3200 mm |
| Wheelbase | 4800 mm |
| Fork Dimensions (L x W x H) | 2440 x 320 x 110 mm |
| Min. Turning Radius | 7260 mm |

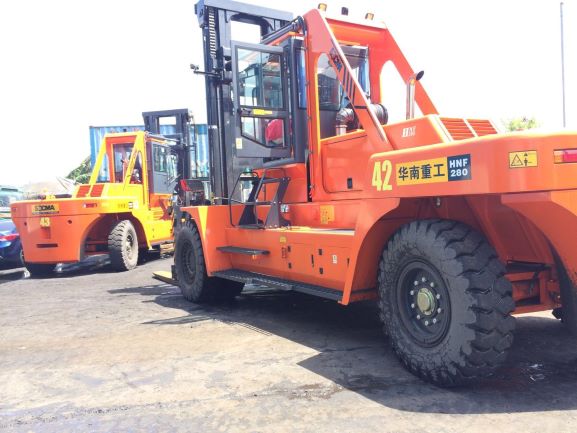

Chassis & Handling
Tyre Configuration
- Front/Rear Specs: 14.00-24-32PR
- Front Wheels: 4
- Rear Wheels: 2
- Brake Type: Hydraulic clamp disc

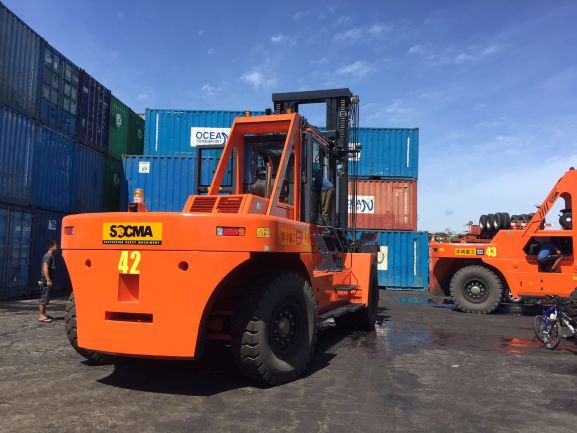

Mast & Hydraulics
Mast & Hydraulic System
- Box-type internal-external mast
- Special all-round roller bearings
- Standard hydraulic fork positioner
- Attachments working pressure: 18 Mpa
- Attachments oil flow: 80 l/min
Operator Comfort
- Cabin Features
- Full Enclosed CabAir ConditioningHeaterRear View DisplayPilot Valve Control
Speed & Gradeability
Speed Performance
| Condition | Travel Speed | Lifting Speed |
|---|---|---|
| With Load | 24 km/h | 260 mm/s |
| Without Load | 28 km/h | 280 mm/s |
- Max Gradeability (Loaded/Unloaded)
- 20% / 21%
