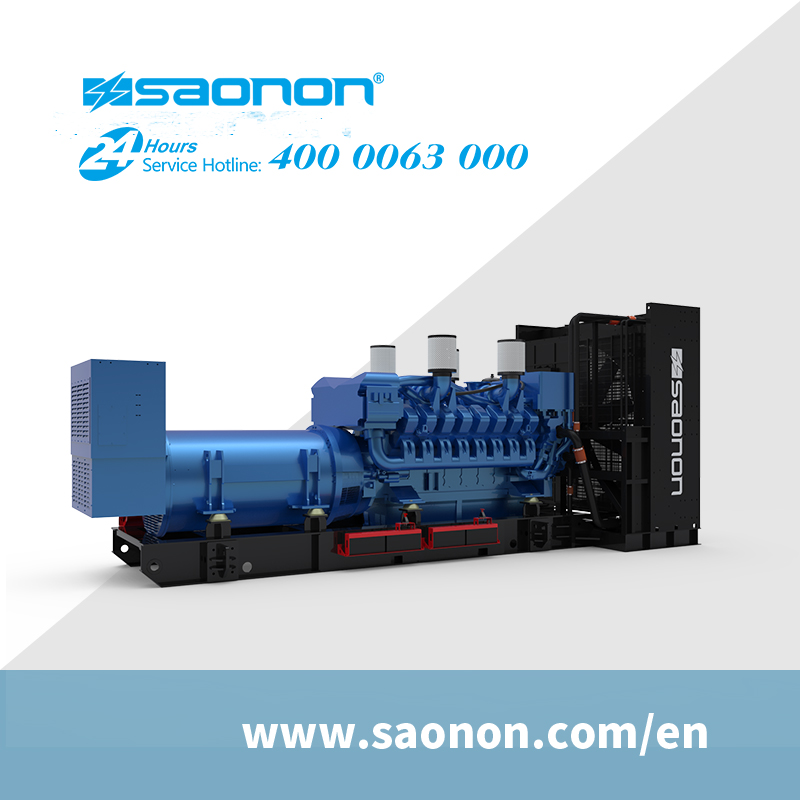

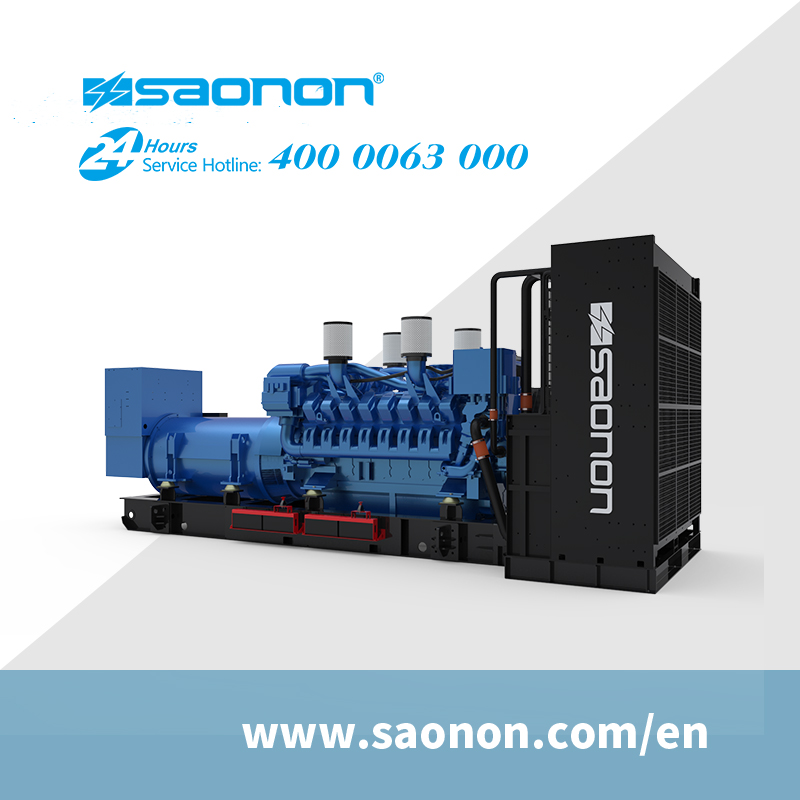

2750 kVA Open Type Diesel Generator Set
This open-type diesel generator set delivers a robust and reliable power generation solution suitable for continuous or standby operation. The generator features a heavy-duty diesel engine coupled with a high-efficiency alternator, providing a stable and consistent power supply.
Technical Specifications
Product Overview
Industrial Power Generation Solution
This 2750 kVA open-type diesel generator set is engineered for robust performance in industrial, commercial, and emergency power applications. Built with a high-efficiency engine and alternator, the system ensures consistent and stable power output for large-scale demands. Its durable, CAE-analyzed chassis design provides structural integrity while allowing for easier transshipment and simplified maintenance access.
Technical Specifications
Performance Metrics
2,750 kVA
ESP Capacity
2,500 kVA
PRP Capacity
400 V
Rated Voltage
1,500 r/min
Engine Speed
50 Hz
Frequency
Core Components
- Engine: YC16VC3300-D31
- Alternator: LVS1804S
Dimensions and Weight
| Parameter | Value |
|---|---|
| Weight | 17864 kg |
| Dimensions (LxWxH) | 7000x2000x2500 mm |
Design Features
- Key Structural Features
- CAE Analyzed ChassisH-Shaped Steel ConstructionAnti-theft Battery FasteningCorrosion Resistant CoatingVibration Absorption System
