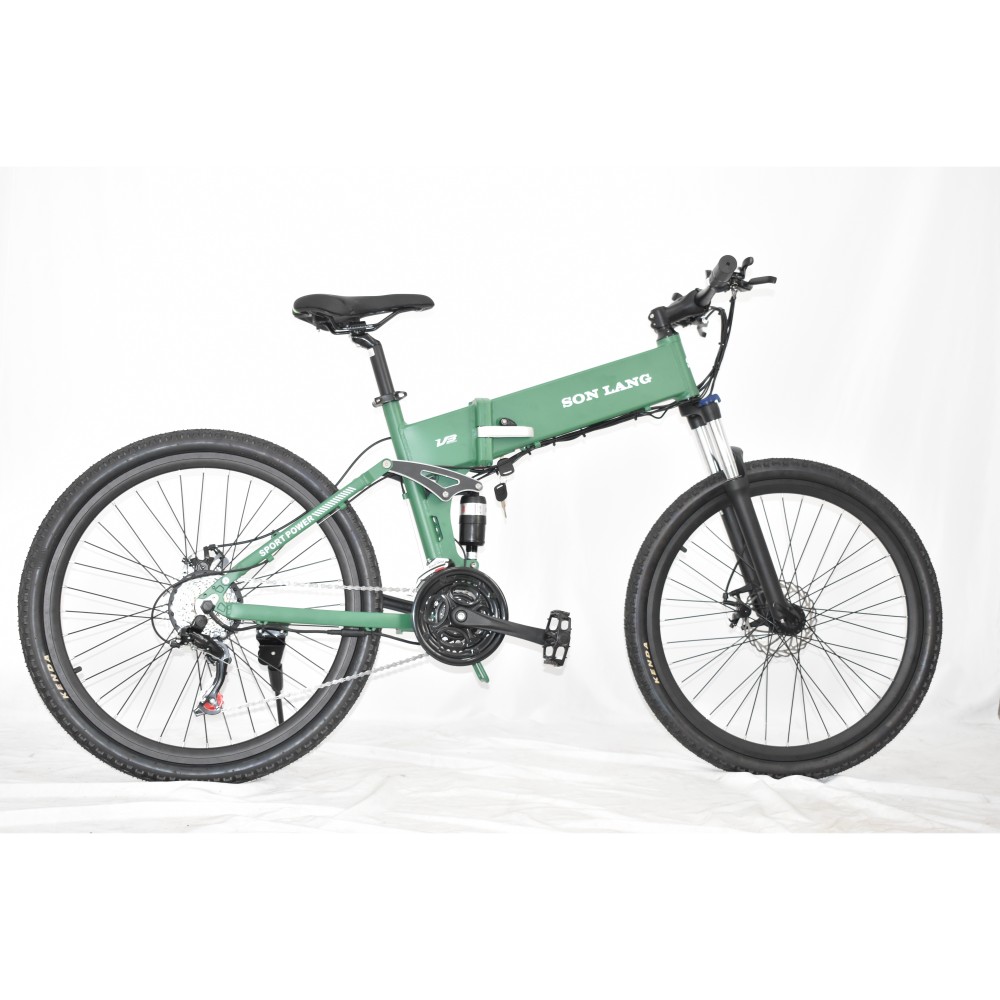

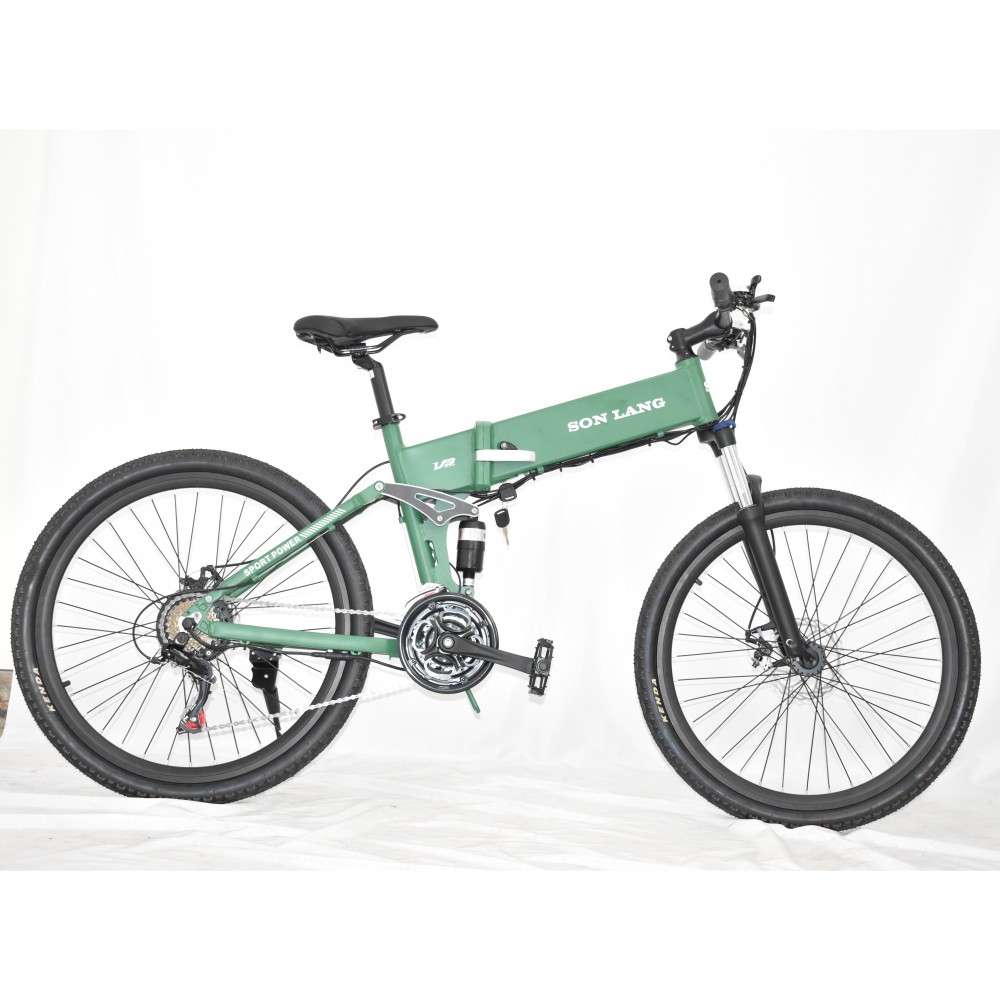

26-inch Folding Electric Bicycle
This 26-inch folding electric bicycle is designed for portability and convenience. It features a folding frame and is equipped with a lithium-ion battery for a long riding range.

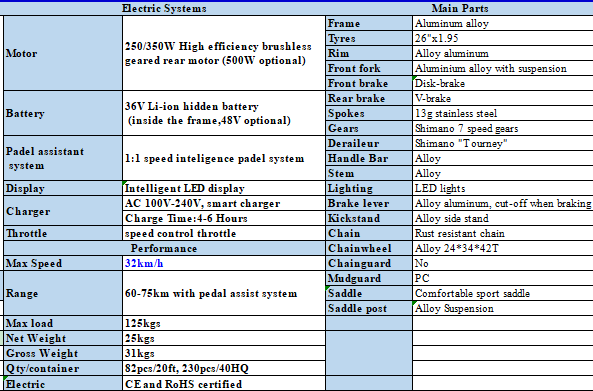

Technical Specifications
Overview
Versatile 26-inch Folding Electric Bicycle
This electric bicycle combines the portability of a folding frame with the performance of a full-sized 26-inch wheel platform. Designed for urban commuting and recreational travel, it features a lightweight aluminum alloy frame and a hidden battery design for a sleek aesthetic. With a reliable Shimano 7-speed drivetrain and integrated pedal assist, it offers a balanced blend of manual cycling and electric power.
Performance Metrics
Performance Highlights
32 km/h
Max Speed
75 km
Max Range
125 kg
Max Load
Electric System
- Motor
- 250/350W High efficiency brushless geared rear motor (500W optional)
- Battery
- 36V Li-ion hidden battery (inside the frame, 48V optional)
- Pedal Assist System
- 1:1 speed intelligence pedal system
- Charge Time
- 4-6 Hours
Drivetrain & Braking
Braking System
- Front: Disk-brake
- Rear: V-brake
- Alloy aluminum levers with power cut-off
- Transmission
- Shimano 7 speed gears with Tourney derailleur
Chassis & Components
Suspension
- Aluminum alloy front fork with suspension
- Alloy suspension saddle post
- Frame Material
- Aluminum alloy
- Wheels & Tires
- 26" x 1.95 tires with alloy aluminum rims and 13g stainless steel spokes
Logistics
Weight
| Type | Weight (kg) |
|---|---|
| Net Weight | 25 |
| Gross Weight | 31 |
Container Capacity
- 20ft Container: 82 pcs
- 40HQ Container: 230 pcs
Compliance
- Certifications
- CERoHS
