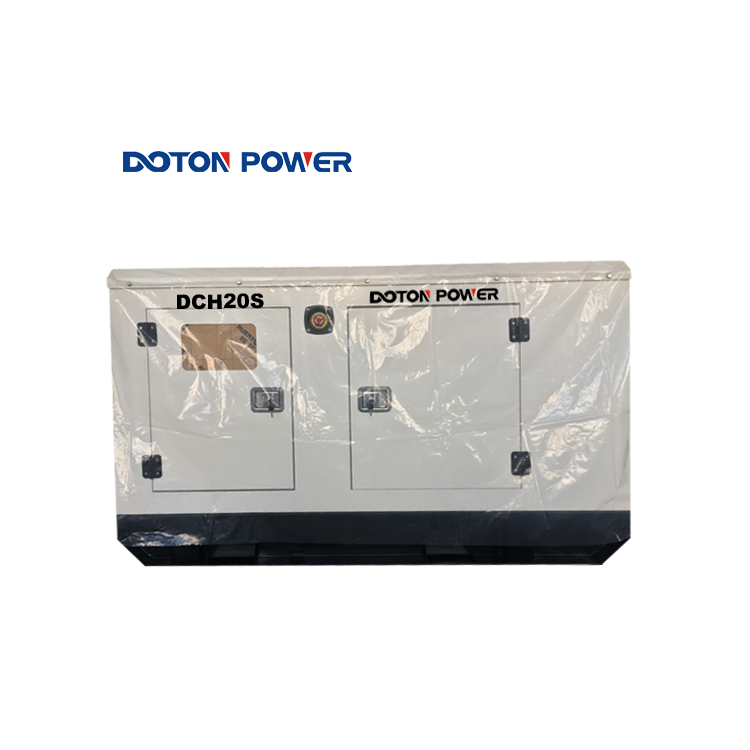

25KVA 20KW Silent Diesel Generator
This silent diesel generator provides high-efficiency electric power. It can operate continuously for 8 hours.
Technical Specifications
Overview
Reliable 25kVA Silent Power Solution
This 25kVA (20kW) silent diesel generator is designed for high-efficiency power delivery in noise-sensitive environments. It features a robust engine and a soundproof canopy, making it ideal for continuous 8-hour operation in commercial, industrial, or residential settings. With a 100L fuel tank and advanced control systems, it provides a stable and dependable backup or primary power source.
Performance Metrics
Key Performance Metrics
20 kW
Rated Power
25 kVA
Rated Capacity
60 Hz
Frequency
100 L
Fuel Tank
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Model | DCH20S-3 |
| Max Power | 22kW / 28kVA |
| Voltage Range | 220V - 480V |
| Rated Current | 38A |
| Controller | COMAP MRS10 |
| Battery | 1*12V-80Ah |
Efficiency & Operation
- Fuel Consumption (50% Load)
- 0.3 L/kw hr
- Runtime at 50% Load
- 25 hr
- Cooling Fluid Volume
- 10 L

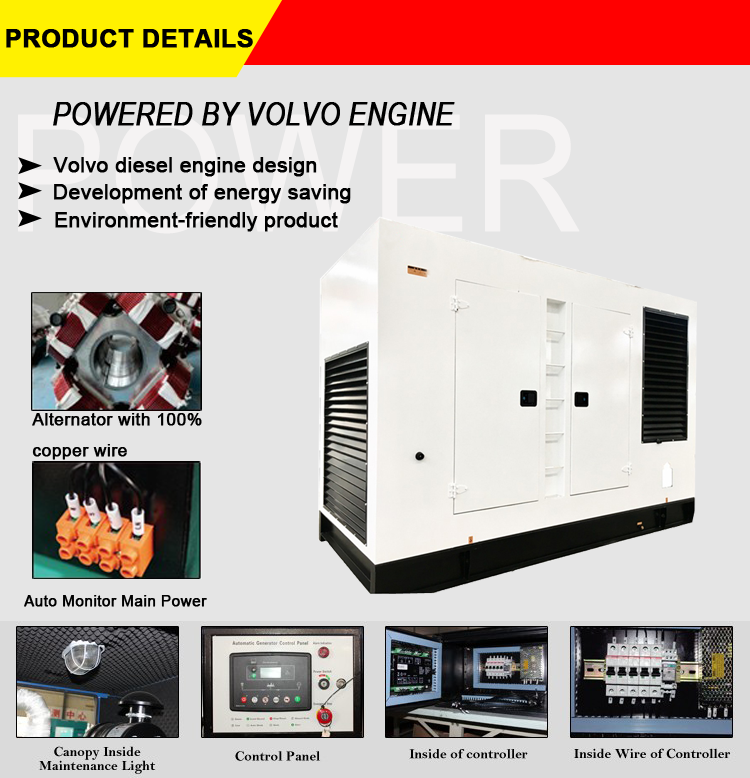

Design Features
Engine & Build Quality
- Energy-saving diesel engine design
- Alternator with 100% copper wire
- Auto Monitor Main Power functionality
- Canopy with internal maintenance light
- Silent soundproof enclosure
- Integrated control panel with internal wiring
Compliance & Quality
- Standards & Certifications
- CE CertifiedISO 9001 Quality ManagementOccupational Health & Safety CompliantEnvironment-Friendly Product
