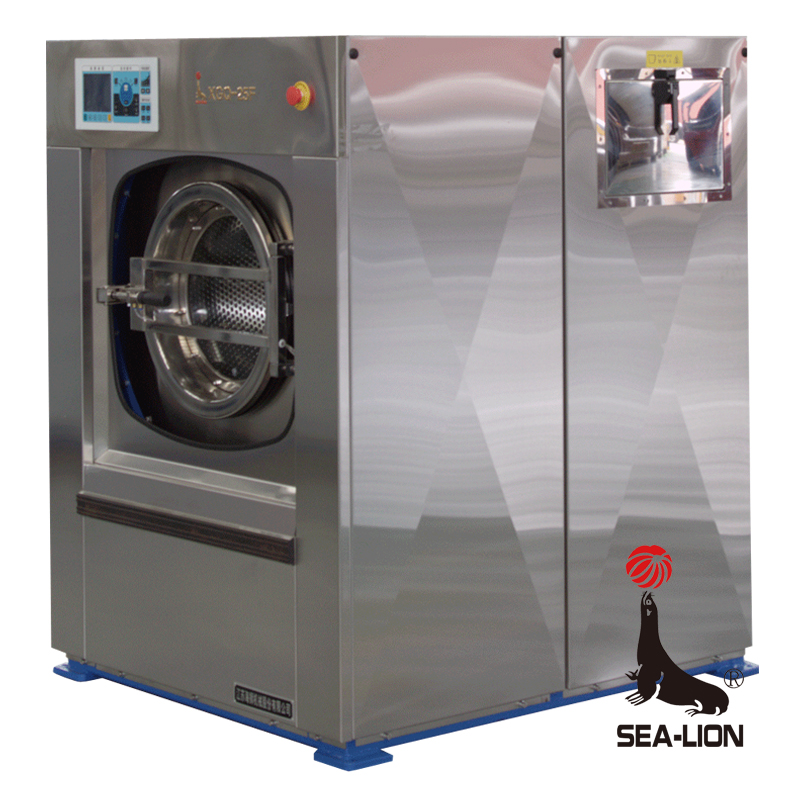

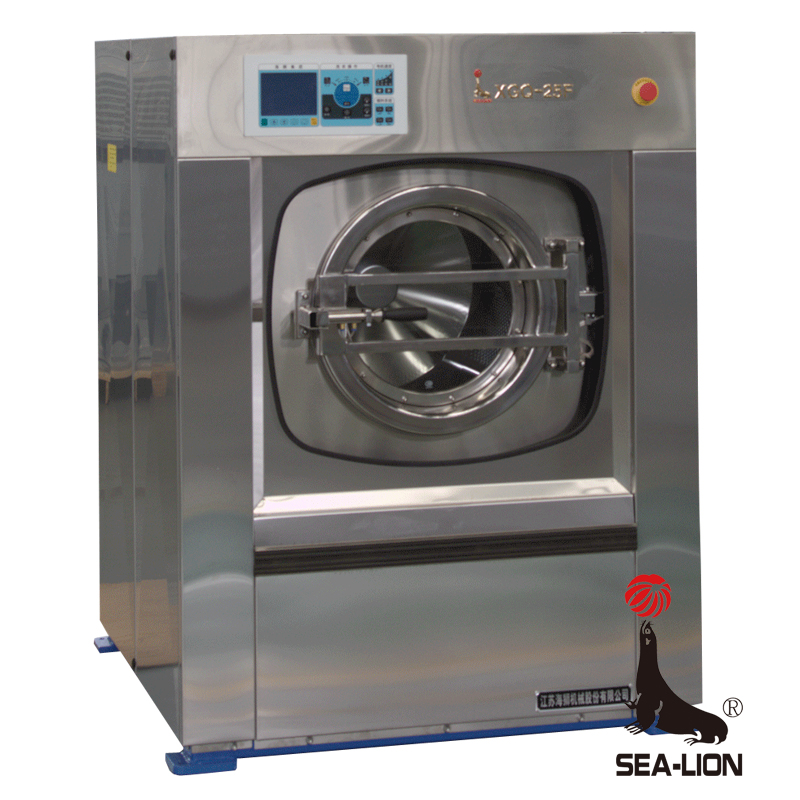

25KG Full Suspension Automatic Washer Extractor
This 25KG full suspension automatic washer extractor is designed for industrial laundry applications. The machine features a stainless steel construction and an advanced control system for precise operation.
Technical Specifications
Overview
Industrial Performance
This 25KG capacity full suspension washer extractor is engineered for high-demand commercial laundry environments such as hotels and hospitals. Featuring a robust stainless steel construction, it offers exceptional durability and hygiene for professional use. The advanced computer control system with a touch display panel provides high automation, while the full suspension design ensures excellent vibration isolation and stable operation.
Performance Metrics
Key Performance Metrics
25 kg
Rated Capacity
45 min
Wash Cycle Time
3 kW
Motor Power
Technical Dimensions
Physical Dimensions
| Attribute | Value |
|---|---|
| Weight | 1055 kg |
| Dimensions (L/W/H) | 1355 x 1190 x 1585 mm |
| Inner Drum | 810 x 560 mm |
| Outer Drum | 864 x 618 mm |
Operational Specs
Rotation Speeds
- Washing/Balancing Speed: 43/75 rpm
- Medium/High Extracting Speed: 430/830 rpm
Utility Consumption
- Water Consumption: 600 kg/load
- Steam Consumption: 4 kg/load
- Electric Consumption (Steam Heating): 0.9 kW.h
Connection Requirements
| Utility | Requirement |
|---|---|
| Steam Pipe | DN 20 |
| Water Inlet | DN 25 |
| Water Pressure | 0.2-0.4 MPa |
| Steam Pressure | 0.4-0.6 MPa |
| Compressed Air Pressure | 0.4-0.6 MPa |
Features
- Key Features
- Full SuspensionTouch Display PanelVFD MotorStainless Steel ConstructionAutomatic Control
