250W Submersible Vibration Water Pump
This clean-water submersible pump is suitable for arable land irrigation and mine water drainage. Its compact design, tight sealing, and energy-efficient operation ensure long-lasting use in rivers, lakes, and wells.
Technical Specifications
Product Overview
High-Efficiency Submersible Vibration Pump
This 250W submersible vibration pump is an ideal solution for efficient clean-water management, including irrigation, mine drainage, and flood control. Engineered with high-head capabilities, the pump is designed to deliver consistent performance in demanding environments such as wells, rivers, and lakes. Its compact, durable construction ensures high energy efficiency and longevity for professional use.
Technical Specifications

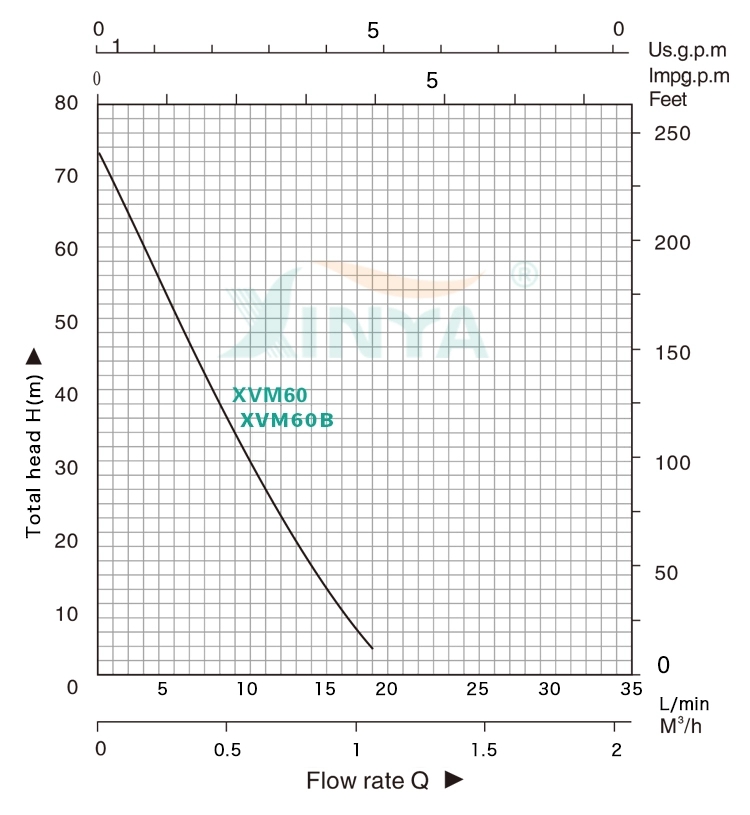

Performance Metrics
250 W
Rated Power
18 L/min
Max Flow Rate
60 m
Max Head
8 bar
Max Pressure
Electrical and Protection
| Feature | Specification |
|---|---|
| Voltage | 230V |
| Frequency | 50Hz |
| Protection Class | IP 68 |
| Insulation Class | B |
Construction & Materials
Component Materials
| Component | Material |
|---|---|
| Pump Body | Aluminum |
| Motor Body | Aluminum |
| Shaft | #45 Steel |
| Impeller | Rubber |
Operational Conditions
Operating Limits
- Fluid temperature range: 1-40 °C
- Suitable for clean water only
- Outlet size: 1/2 inch
Logistics & Extras
- Included Accessories
- 1 Rope1 Clap
- Packaging & Quantity
- Packing dimensions: 15 x 10 x 28 cm; 5000 units per 20GP container
