250W Submersible Deep Well Water Pump
This submersible pump is designed for clean water applications in rivers, lakes, and wells. It is suitable for land irrigation, mine water drainage and flood control with its compact design and energy-saving capabilities.
Technical Specifications
Product Overview
High-Efficiency Submersible Pump
This XVM series submersible pump is engineered for clean water extraction from deep wells, rivers, and lakes. Featuring a compact and robust construction, it offers high efficiency and energy conservation, making it ideal for irrigation, mine drainage, and flood control. Its durable build ensures longevity in demanding agricultural and industrial environments.
Technical Specifications

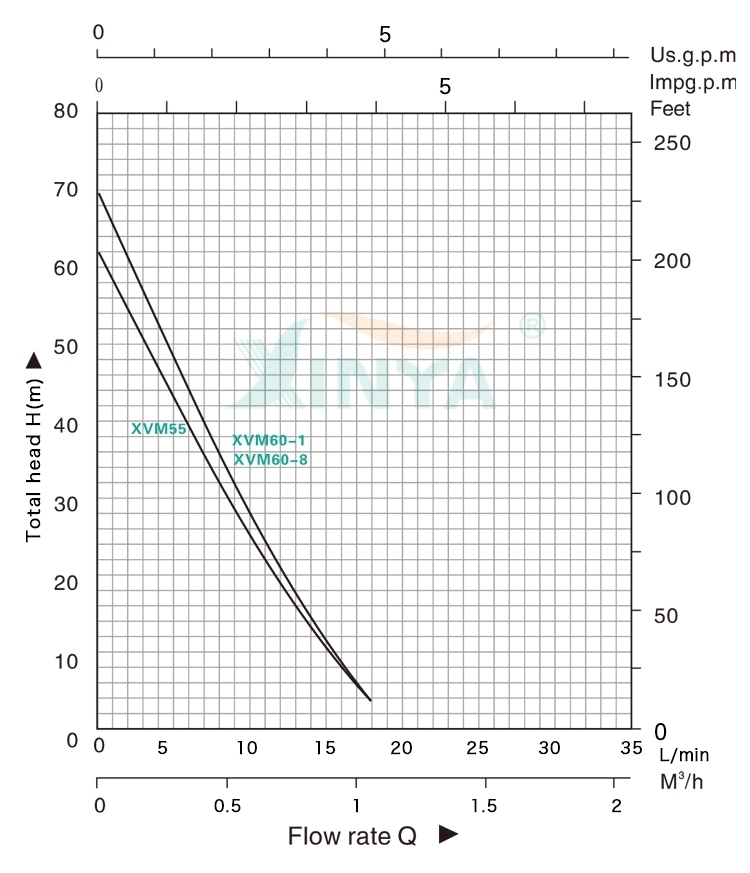

Key Performance Metrics
0.25 kW
Power
70 M
Max Head
18 L/min
Max Flow
8 bar
Max Pressure
Electrical Data
- Voltage: 230V/50Hz (Optional 110V/60Hz)
- Insulation Class: B
- Degree of Protection: IP 68

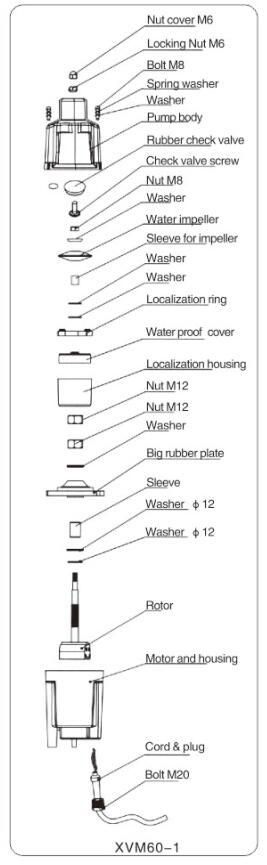

Construction & Materials
Component Materials
| Component | Material |
|---|---|
| Pump Body | Aluminum |
| Motor Body | Aluminum |
| Shaft | # 45 Steel |
| Impeller | Rubber |
Operational Environment
- Working Conditions
- Clean water onlyFluid temp 1-40 °C
Logistics & Maintenance
Logistics
- Gross Weight: 3.6 kg
- Dimensions: 15 x 10 x 28 cm
- Packing Quantity: 5000 PCS/20GP

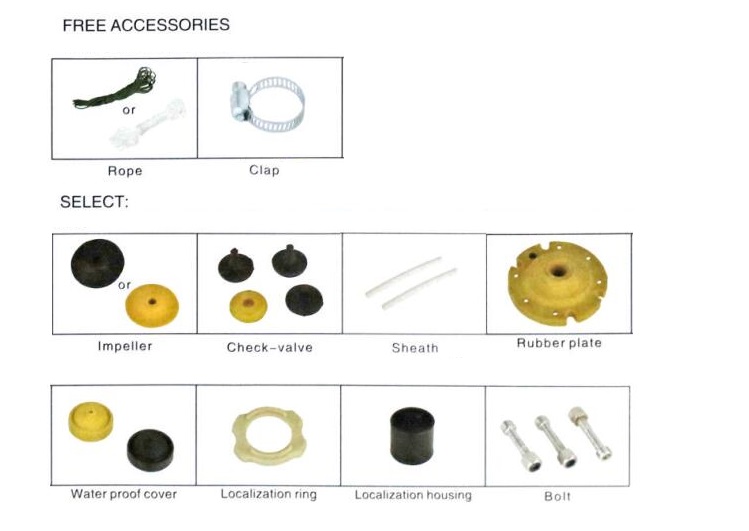

- Included Accessories
- RopeClap
