25 kVA Marine Diesel Generator
This 25 kVA marine diesel generator is powered by a 2.4 liter turbocharged, 4-cylinder diesel engine. The compact and lightweight engine is optimized for low noise and vibration, making it suitable for boats and yachts.

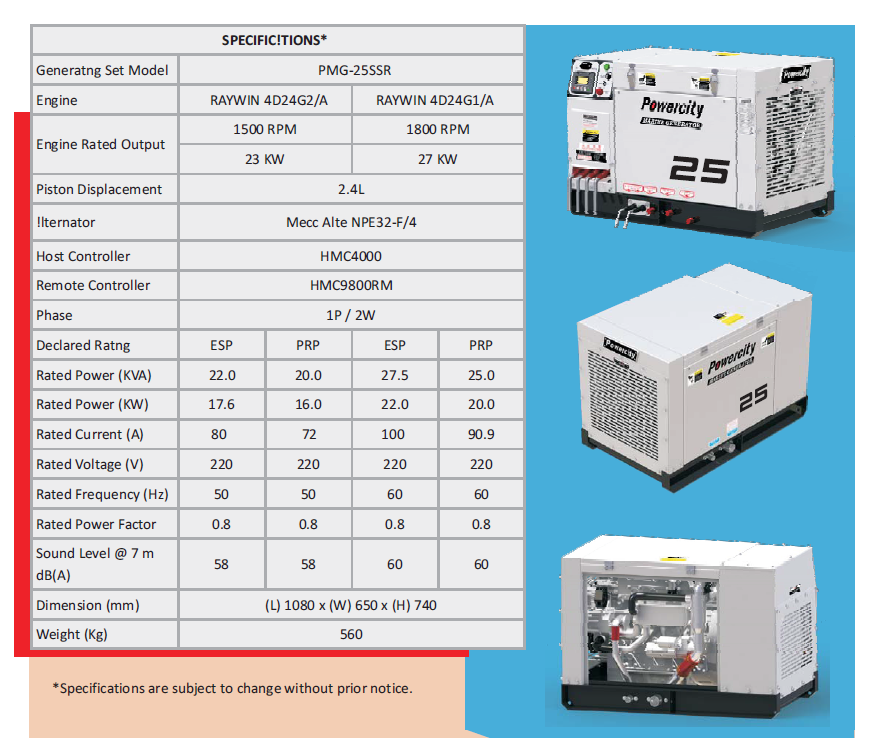

Technical Specifications
Product Overview
Compact Marine Power Solution
The PMG-25SSR is a 2.4-liter turbocharged, 4-cylinder marine diesel generator set designed for reliability and efficiency. Engineered for boats and yachts, this unit features a compact, lightweight design optimized to minimize noise and vibration. It includes integrated cooling systems, such as a sea water pump and heat exchanger, to ensure stable operation even in demanding marine environments.
Performance Metrics
Key Performance Indicators
25 kVA
Rated Output (PRP)
2.4 L
Displacement
58 dB(A)
Sound Level @ 7m (50Hz)
560 kg
Total Weight
Technical Specifications
Engine Configuration
- 4-cylinder turbocharged diesel engine
- 2.4L piston displacement
- Water-cooled exhaust pipe
- Integrated sea water pump and heat exchanger
Electrical Ratings Table
| Parameter | 50Hz (PRP) | 60Hz (PRP) |
|---|---|---|
| Rated Power (kVA) | 20.0 | 25.0 |
| Rated Power (kW) | 16.0 | 20.0 |
| Rated Current (A) | 72 | 90.9 |
| Voltage (V) | 220 | 220 |
Compliance & Features
Control Systems
- HMC4000 Host Controller
- HMC9800RM Remote Controller
- Compliance Standards
- EU Stage IIIAMarine Grade
Physical Dimensions
- Generator Dimensions
- 1080mm (L) x 650mm (W) x 740mm (H)
