Technical Specifications
Product Overview
Compact Submersible Performance

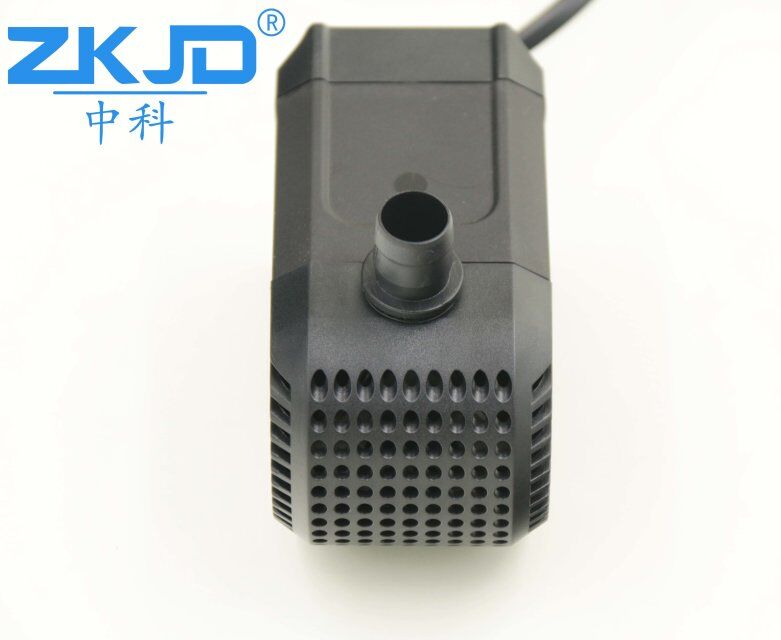

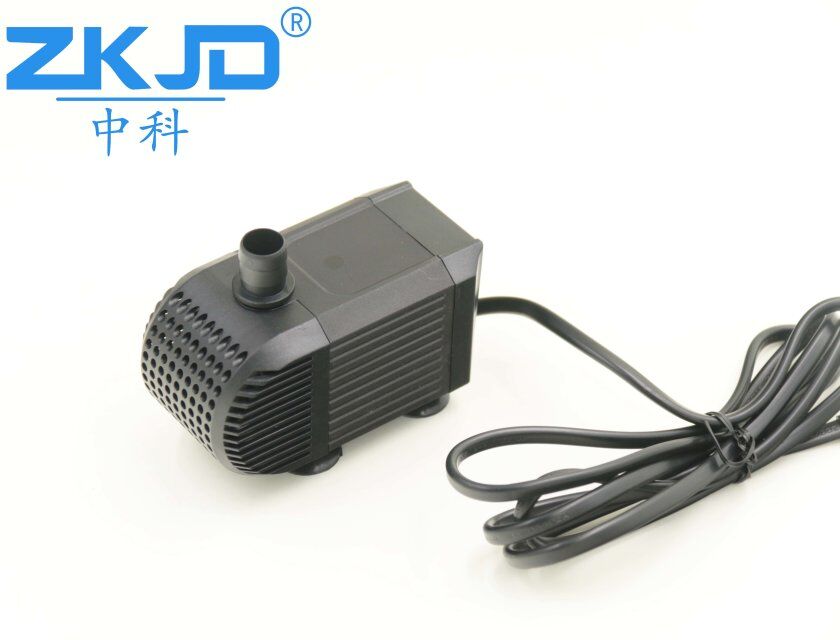

This series of submersible water pumps is designed for versatile use in fountains, water screens, and solar-powered irrigation systems. Engineered with a compact form factor, these units offer reliable water circulation and effective drainage in a small, unobtrusive package. With options available for both 12V and 24V power supplies, they provide a flexible solution for professional water feature management.
Key Performance Metrics
Featured Performance
1,000 L/H
Max Flow
4 m
Max Head
0.34 kg
Weight
Technical Data
Model Specifications
| Model | Voltage (V) | Power (W) | Head (m) | Flow (L/H) |
|---|---|---|---|---|
| SL-DC2L600Y025-S | 24 | 10 | 2.5 | 600 |
| SL-DC1L650Y025-S | 12 | 10 | 2.5 | 650 |
| SL-DC1L700Y03-S | 12 | 12 | 3 | 700 |
| SL-DC2L750Y03-S | 24 | 14.4 | 3 | 750 |
| SL-DC2L1000Y04-S | 24 | 24 | 4 | 1,000 |
- Dimensions & Outlet
- 100.4 x 50 x 69 mm (Outlet: 13 mm)
Application
- Suitable Applications
- FountainsWater ScreensSolar IrrigationWater CirculationDrainage
