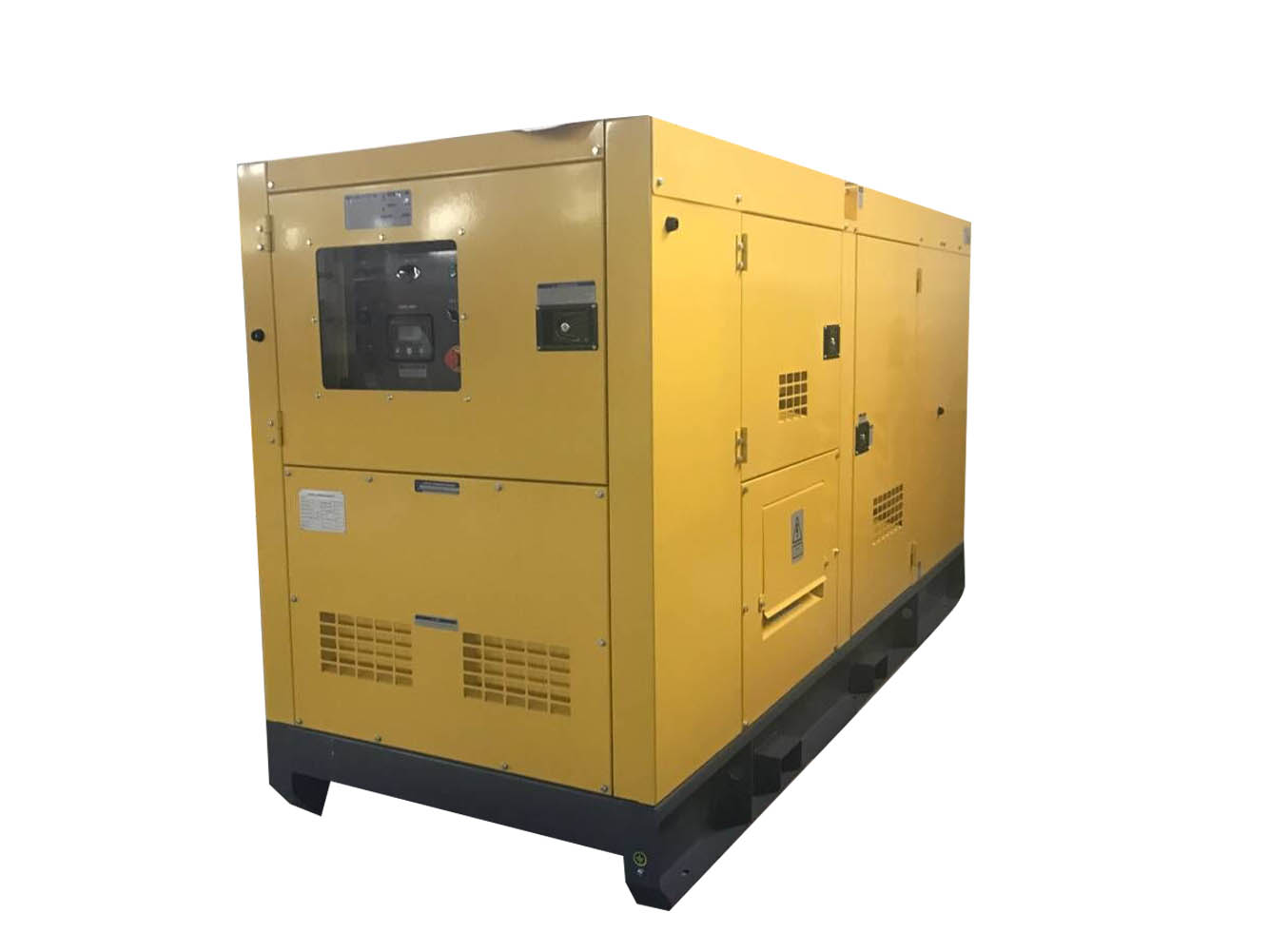

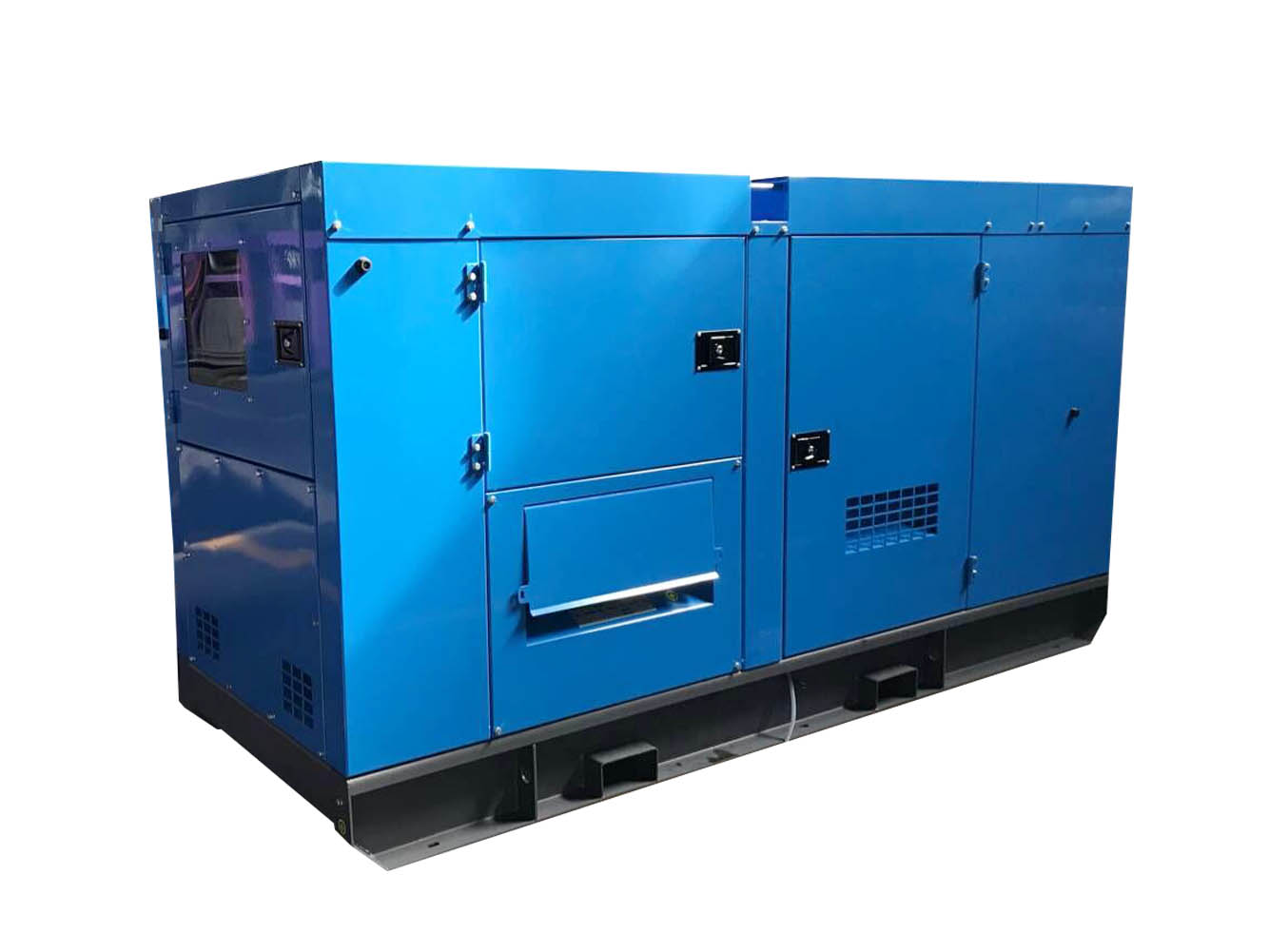

248kVA 198kW 50Hz Silent Diesel Generator Set
This silent diesel generator set delivers 248kVA or 198kW of power at 50Hz. It features a soundproof enclosure to minimize noise pollution, making it suitable for noise-sensitive environments.
Technical Specifications
Overview
High-Performance Silent Power Solution
This 248kVA diesel generator set is engineered for reliable prime and standby power in noise-sensitive environments. Featuring a high-torque engine and a corrosion-resistant silent canopy, it ensures stable performance even in harsh conditions. Designed for versatility, it supports applications ranging from industrial facilities and medical centers to municipal construction and banking systems.
Performance Metrics
Power Ratings
248 kVA
Standby Power
198 kW
Standby Power
50 Hz
Frequency
Engine Specifications
Engine Configuration
| Feature | Specification |
|---|---|
| Cylinders | 6 In-Line |
| Cycle | 4 Stroke |
| Bore / Stroke | 114 mm / 135 mm |
| Displacement | 8.9 L |
| Compression Ratio | 16.6:1 |
| Induction | TCA |
| Governing Type | Electronic |
| Cooling Method | Water Cooled |
Fluid Capacities
| Fluid Type | Capacity |
|---|---|
| Lubricant Oil (15W40-CF4) | 27.6 L |
| Coolant Capacity | 11.1 L |
| Fuel Tank | ≥8-hour capacity |
Physical Design
Canopy & Enclosure
- High-quality sheet metal construction
- Corrosion-resistant and scratch-resistant finish
- Waterproof and dust-proof sealing performance
- Sound-attenuated for low noise operation
- Integrated crane and forklift points for easy transport
- 50°C radiator for soundproof type
- Soundproof Set Dimensions
- 3530 x 1150 x 1900 mm
- Soundproof Set Weight
- 2450 kg
Control & Protection
Control Features
- Omni-directional control panel
- Real-time operation inspection and data display
- Monitoring and alarm shutdown features
- RS232/RS485 communication interfaces
- Optional Automatic Transfer Switch (ATS)
- Overload, short-circuit, and open-phase protection
- High temperature and low oil pressure protection
Operational Limits
Environmental Limits
| Parameter | Value |
|---|---|
| Ambient Temperature Range | -15°C to 50°C |
| Altitude (No Power Dissipation) | Up to 3000m |
| Voltage Setting Range | 95-105% of rated voltage |
| Noise Level | 75 dBA at 7 meters |
Quality & Compliance
- Compliance Standards
- ISO 9001:2008ISO 14001:2004OHSAS 18001:2007CE CertifiedEU & EPA Environmental Engine
- Pre-Delivery Testing
- 1-hour full load test sequence (25%, 50%, 75%, 100%, and 110% load)

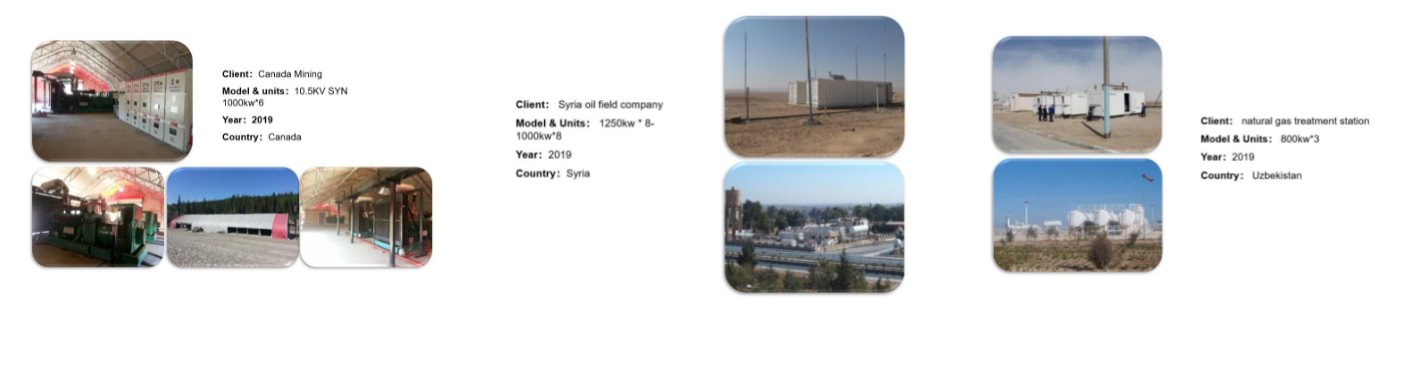

Applications
Target Industries
Medical & HealthcareData CentersBankingMining & Oil FieldsMunicipal ConstructionTransportation HubsHotels
