2300W Metal Cut-Off Machine with 355mm Wheel
This metal cut-off machine features a 2300W motor and a 355mm cutting wheel for efficient material removal. It is designed for precise and reliable cutting performance in various industrial and construction applications.
Technical Specifications
Overview
High-Performance 2300W Metal Cut-Off Machine

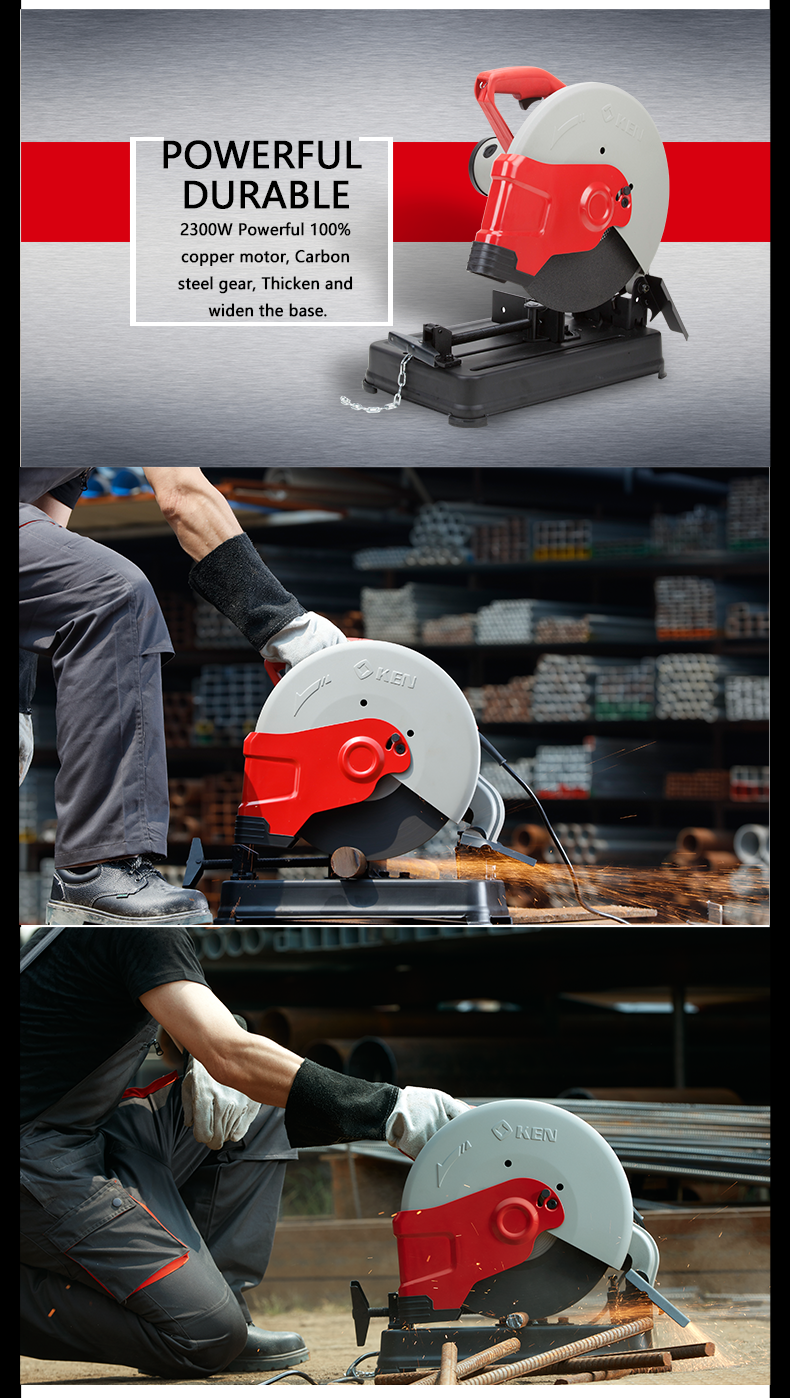

This robust 355mm cut-off machine is engineered for professional metalworking, featuring a powerful 2300W motor with 100% copper windings for maximum durability. Designed for precision and stability, it includes a thickened and widened base along with a carbon steel gear system to withstand heavy-duty industrial use. Its versatile design supports ±45° angle cutting and features an ergonomic vertical D-handle for improved operator control and comfort.
Performance
Key Performance Metrics
2,300 W
Rated Power
3,800 r/min
No-Load Speed
355 mm
Blade Diameter
Cutting Capacity
Cutting Capacity Specifications
| Material Shape | 90° Cut Capacity | 45° Cut Capacity |
|---|---|---|
| Round Steel | 125 mm | 115 mm |
| Square Steel | 119 mm | 106 mm |
| Long Square (Rectangular) | 115 x 130 mm | 115 x 103 mm |
| L-Type Steel | 137 mm | 100 mm |

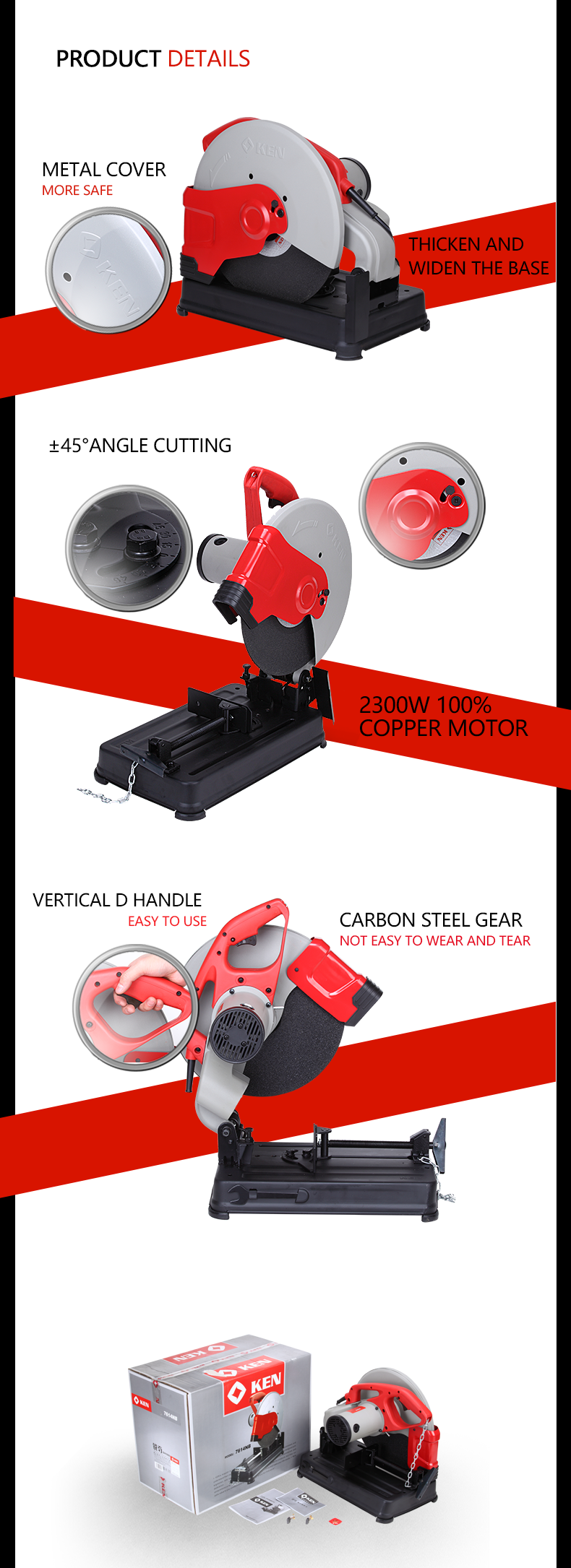

Design & Build
- Motor Construction
- 100% Copper Motor
- Housing Material
- Aluminum housing for efficient heat dissipation
- Gear Material
- Carbon steel gear for wear resistance
- Base Design
- Thickened and widened base for enhanced stability
Safety & Ergonomics
- Safety Features
- Metal Safety CoverSpark DeflectorProtective Guard
- Handle Configuration
- Vertical D-handle for easy operation
- Workpiece Clamping
- Quick-lock vise clamp
Technical Details
Standard Accessories
- Cutting disc
- Carbon brush
- Hex key
- Net Weight
- 17.5 kg
