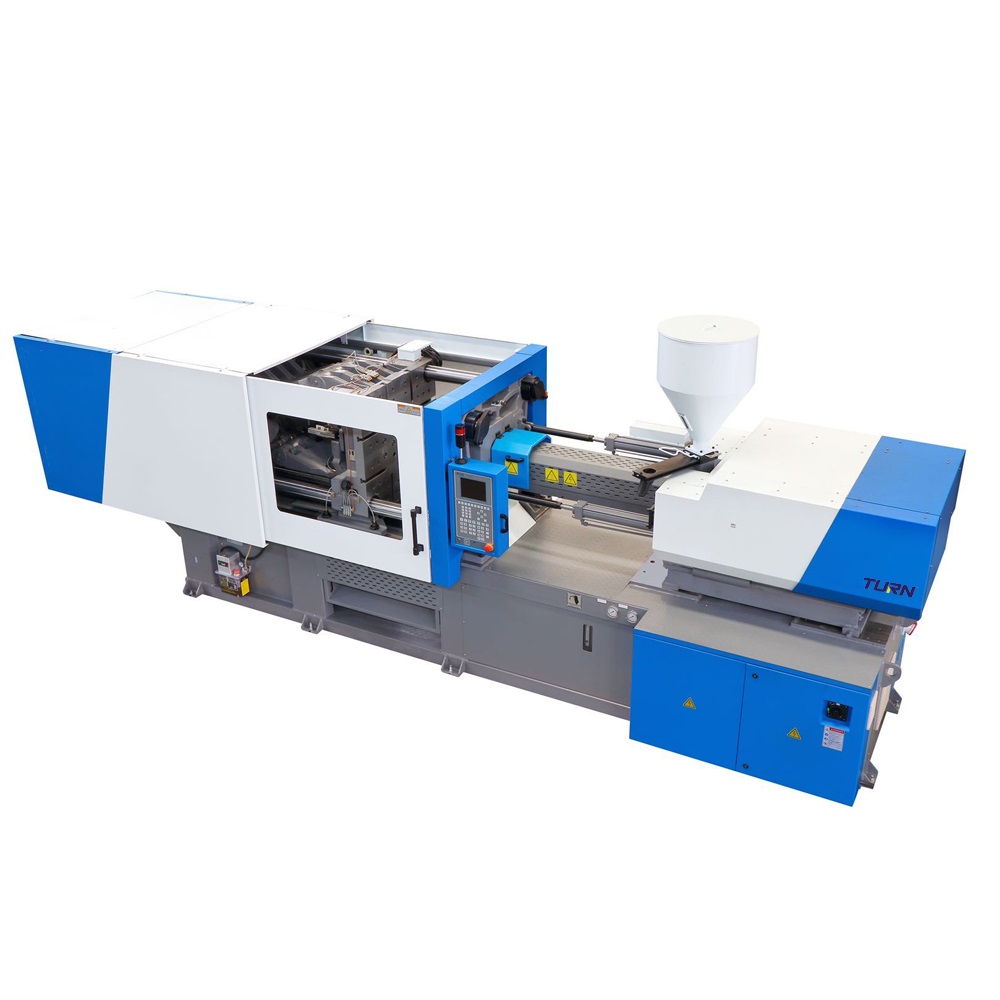

230-Ton Plastic Injection Molding Machine
This plastic injection molding machine is engineered for a wide range of applications, especially for auto parts and precise industrial plastic components. It features a servo motor and electrical components.
Technical Specifications
Overview
Precision Injection Molding
This European-style injection molding machine is engineered for high-precision production, making it an ideal solution for manufacturing automotive components and intricate industrial plastic parts. Designed with advanced engineering standards, it features a robust clamping unit and a high-capacity injection system to ensure consistent material delivery and superior product quality. The machine incorporates a high-efficiency servo motor and premium electrical components to provide stable, reliable, and energy-efficient operation for demanding production environments.
Key Metrics
Performance Highlights

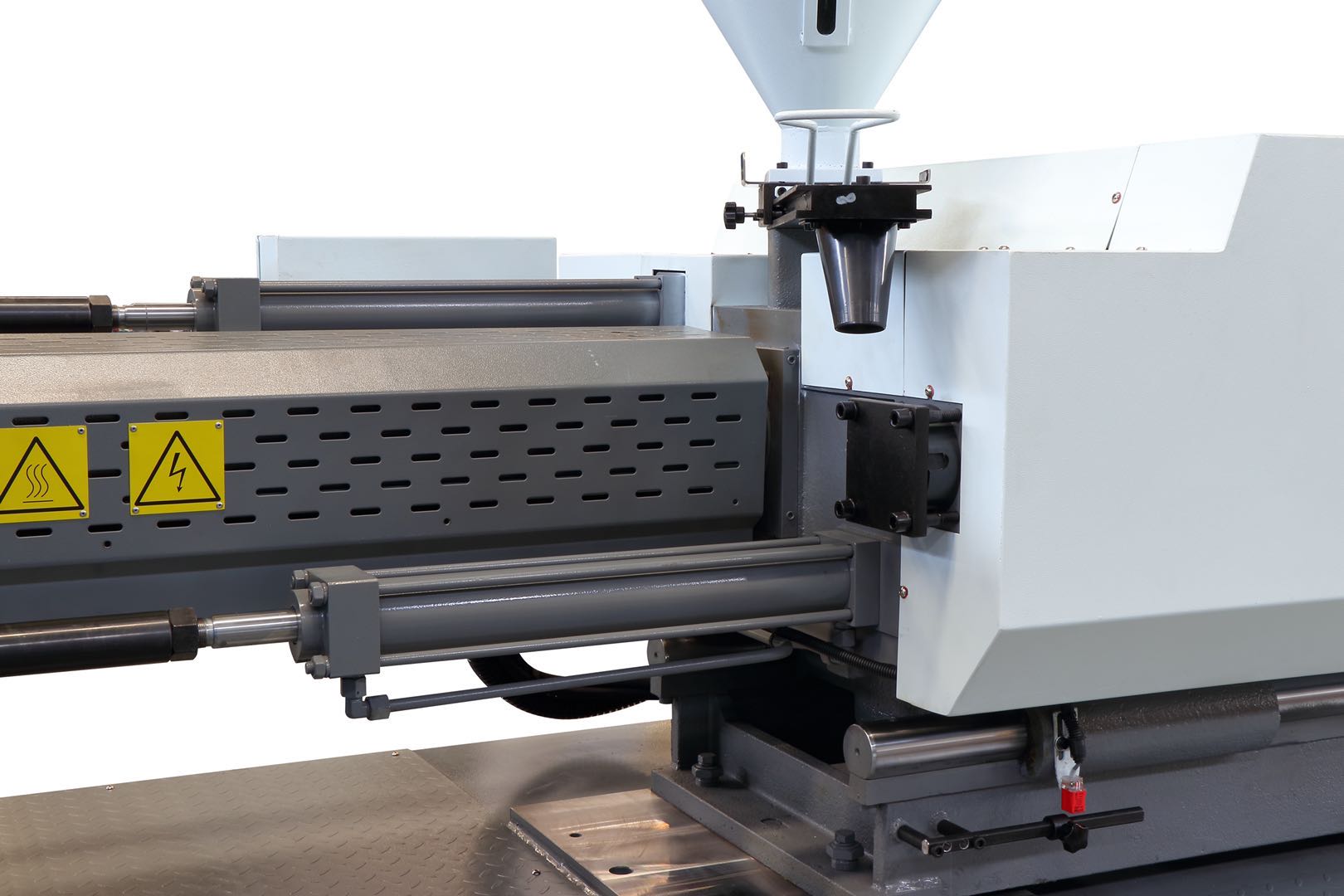

Injection Unit
Injection Specifications (Screw A)
| Parameter | Value |
|---|---|
| Screw Diameter | 45 mm |
| Screw L:D Ratio | 22.2 |
| Injection Pressure | 2299 Bar |
| Injection Rate | 152 cm³/s |
| Max Screw Speed | 200 r/min |
Clamping Unit
Clamping & Mold Specifications
| Parameter | Value |
|---|---|
| Opening Stroke | 520 mm |
| Min Mold Height | 220 mm |
| Max Mold Height | 570 mm |
| Ejector Force | 80 kN |
| Number of Ejectors | 9 |
System & Utility
System Requirements
- Pump Motor Power: 24 kW
- Heating Power: 14.0 kW
- System Pressure: 175 Bar
- Oil Tank Capacity: 200 L
- Hopper Capacity: 50 kg
Construction
Physical Dimensions
- Machine Dimensions: 5.8 x 1.4 x 2.2 m
- Machine Weight: 7 t
Features
- Design Advantages
- European Design StyleT-Groove FormworkServo Motor DriveStable Platen MovementLarge Servo Electric Cabinet
