Technical Specifications
Product Overview
Professional Elevator Control Solution

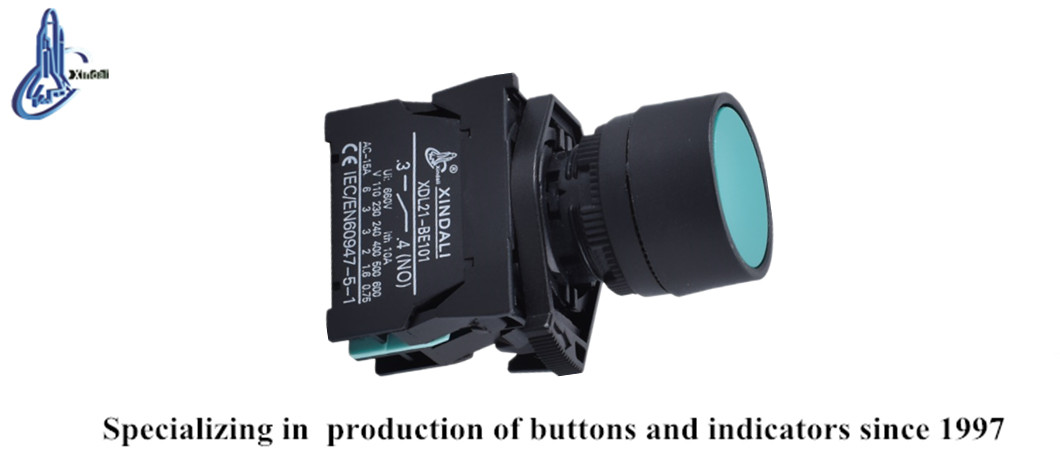

This 22mm waterproof pushbutton switch is engineered for high-reliability control circuits in demanding environments such as elevator systems, distribution cabinets, and industrial power stations. Constructed with a robust plastic housing and specialized silver alloy contacts, it offers superior resistance to electrical erosion and environmental wear. Compliant with international IEC and GB/T standards, this component ensures safety and consistent performance for signal and interlocking applications.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Suitable Environments
- Elevator Control Panels
- Distribution Boxes
- Power Stations
- Communication Networks
- Industrial Control Cabinets
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Certifications & Standards
- Compliance
- CERoHSULIEC60947-5-1ISO9001
