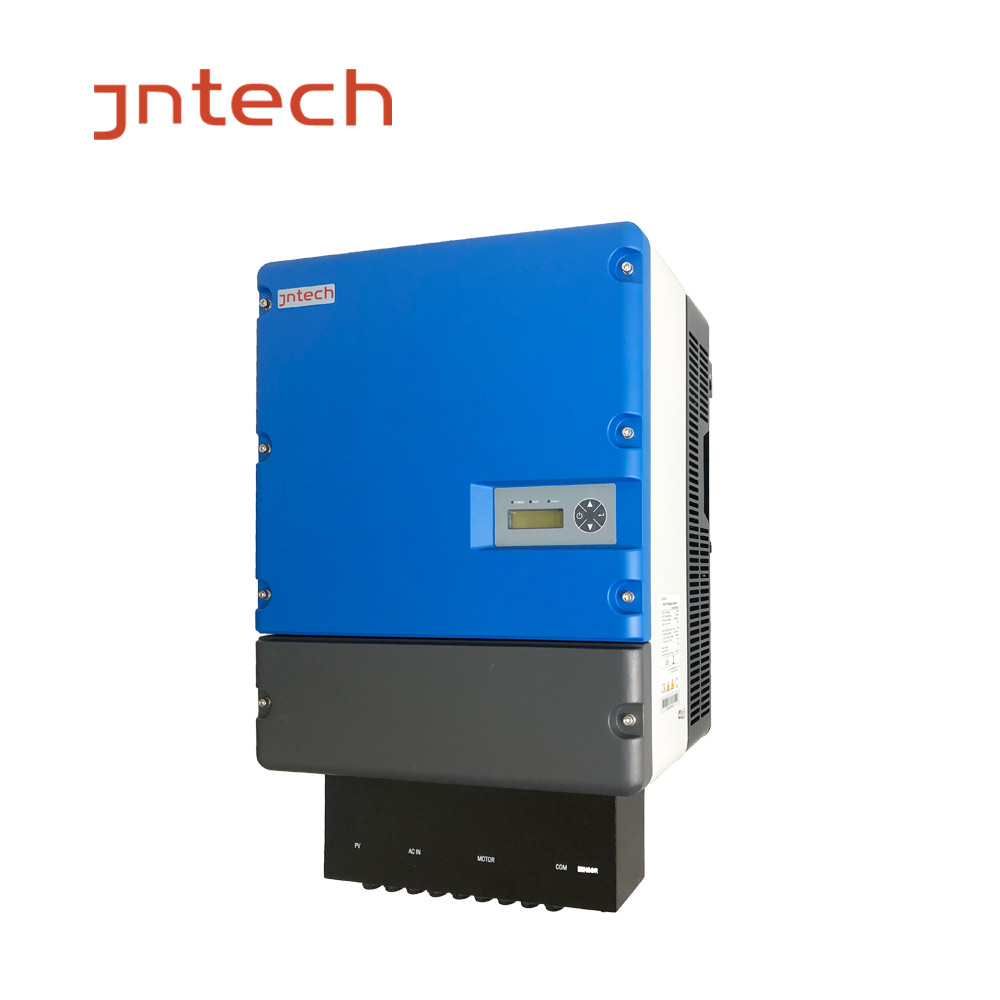

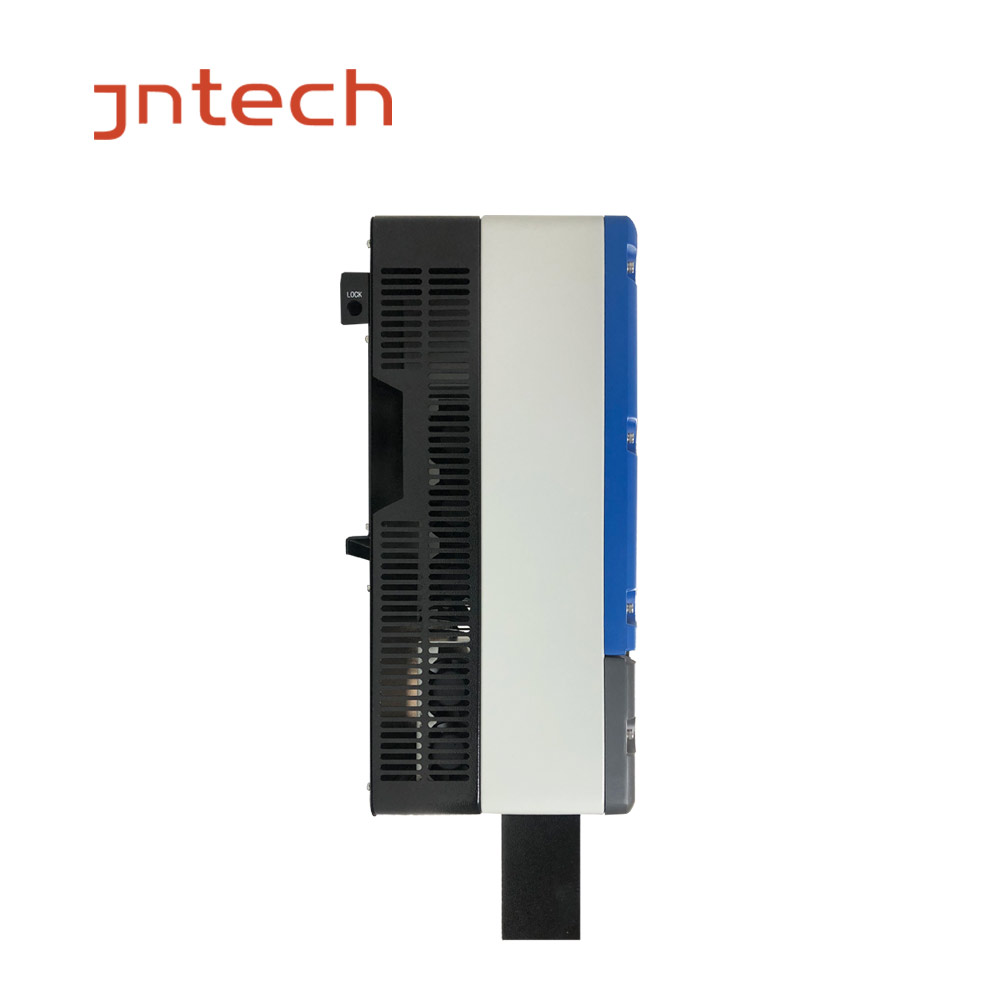

22kW-55kW 3-Phase Solar Pump Inverter with GPRS
This solar pump inverter converts direct current energy from photovoltaic cells into electrical energy to drive water pumps. Utilizing an MPPT algorithm, the inverter adjusts the output frequency based on sunlight intensity to maximize solar energy use.
Technical Specifications
Product Overview
High-Efficiency Solar Pump Inverter
This 3-phase solar pump inverter is engineered for large-scale field irrigation and centralized rural water supply systems. Utilizing advanced MPPT algorithms with over 99% efficiency, it converts DC energy from photovoltaic cells to drive pumps effectively. The hybrid design supports seamless switching between solar power and utility grid or DG energy, ensuring 24-hour water supply capabilities.
Key Features
System Highlights
- Hybrid power support (Solar/Grid/DG)
- Advanced MPPT algorithm (>99% efficiency)
- IP65 rated aluminum casing for outdoor use
- Remote monitoring via RS485 and GPRS
- Comprehensive system protection suite
- Soft start and soft stop functionality
Technical Specifications
- Max. Input DC Voltage
- 880 Vdc
- Recommended MPPT Voltage
- 460-850Vdc
- Max. Input DC Current
- 49 A
- Max. MPPT Efficiency
- 99 %
- Number of Strings
- 3
- Rated Output Voltage
- 380-460Vac (3-phase)
- Output Frequency Range
- 0-50/60Hz
- Rated Output Current
- 42 A
Protection & Durability
Ingress Protection Rating
IP65
- System Protections
- UndervoltageOverloadOvervoltageOvercurrentGrid Phase LossPump Dry ProtectionShort CircuitOverheating
